The AIChE Community Site system allow you to add images and files to most content types. There are also separate content types devoted to images or files. To add images and files to web pages, blog posts, announcements, etc., follow the instructions below.
Adding Images
Upload Image
First you need to upload the image where it says Referenced Images by choosing the file and then selecting upload.

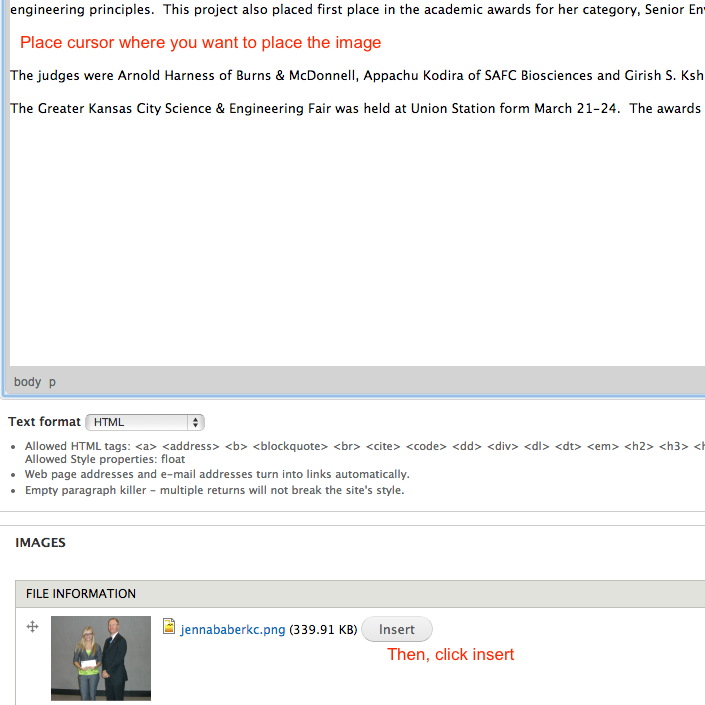

Insert Image
Then, after the image is uploaded. Place your cursor where you want the image to display. Then, click the insert button. Click on the image below to see detail.

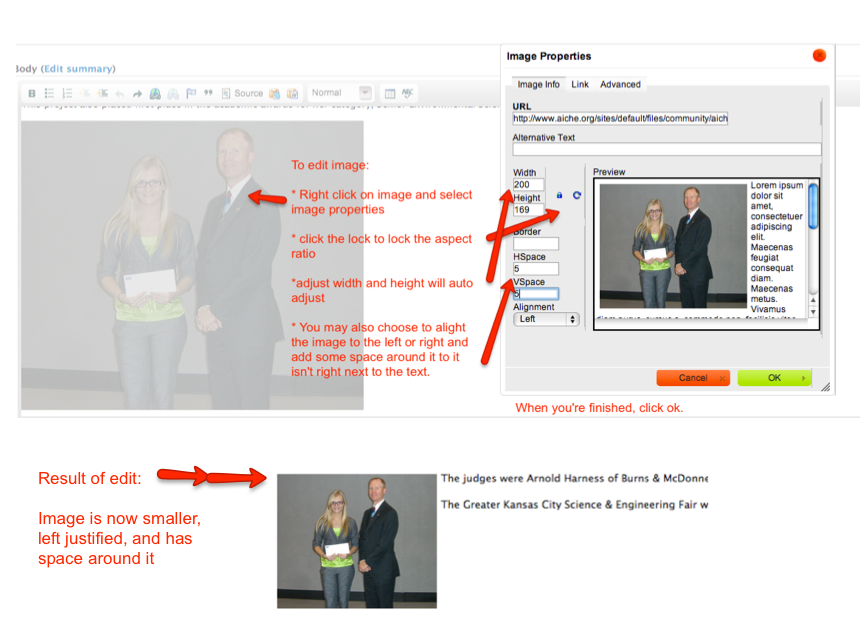

Change Image Display Size or Alignment
The web department personally things large images taking up the full width look better and have more impact but if you want to, you can change the the way an image is displayed. After the image is inserted in the body, right click on the image and select image properties. You can change the display of the image here. Note that you need to make sure the aspect ratio is locked (by making sure the lock is closed) so the image doesn't distort. If you mess up, you can always delete and re-insert the image. Click on the image below for more details.
Adding Files
You may occasionally need to add file downloads to your site. Permissable file types are txt, pdf, ppt, pptx, doc, docx, xls, xlsx, and zip. The most common are pdf and word documents. The web department encourages you to use .doc, .xls, and .ppt file names rather than .xls, .xlsx, and .pptx. There have been reports of Internet Explorer users having problems downloading the newer microsoft files types.
Upload the File
First you need to upload the file where it says Referenced Files. Make sure that the file name has no spaces in it.
Add "Friendly Text"
Add friendly text for the file link so the file name will not appear.
Choose Where to Place the File Link
You have 3 choices of where to position the file link.

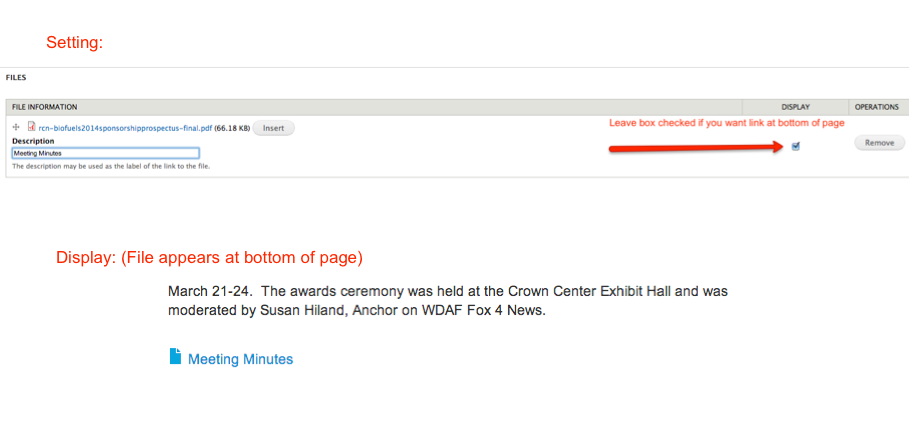

Bottom of Page
Simply make sure the display check box is clicked on. The file will diplay at the bottom of the page. Click image to see detail.

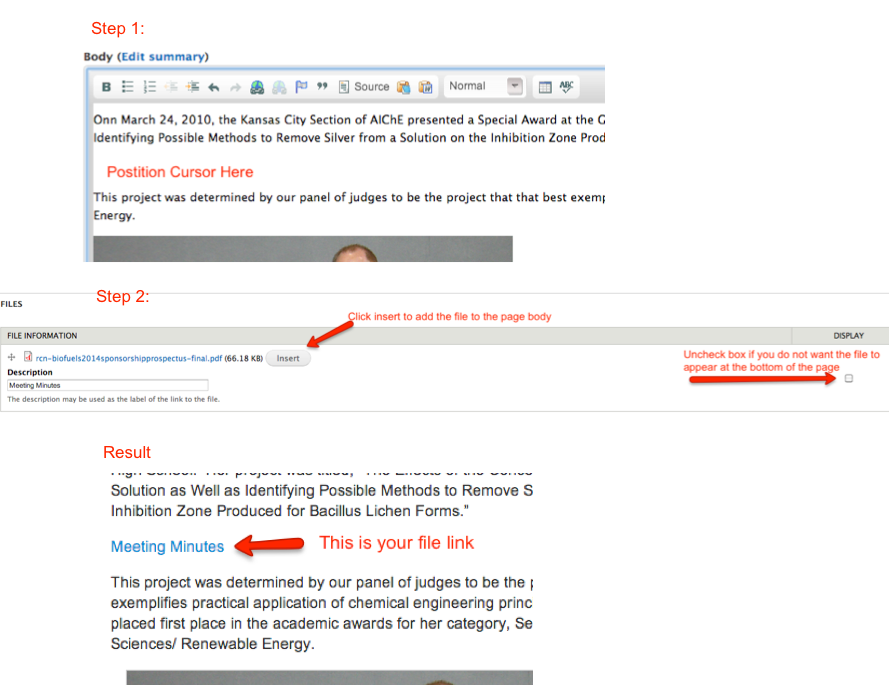

Within Copy Body
Position your cursor where you want the file link to appear. Then click insert. Your file link text will appear in that position with the text you entered in the description. Click image to see detail.

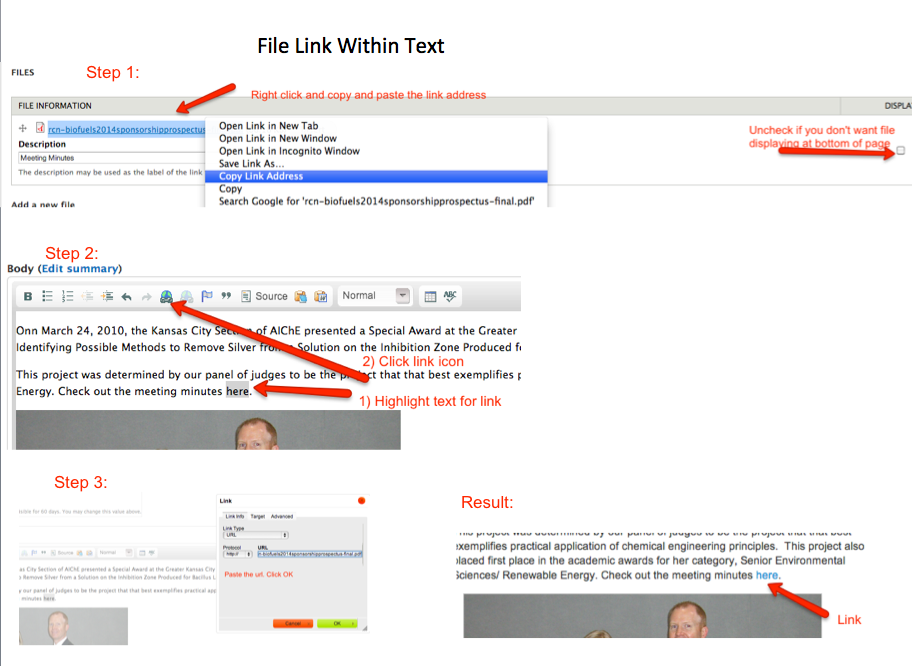

From text Already in Copy
Link to specific text within your paragraph or copy. To do this, right click on the file. Then highlight the text you would like to link to the file. Finally, click the link icon and place the link in it. Click image to see detail.

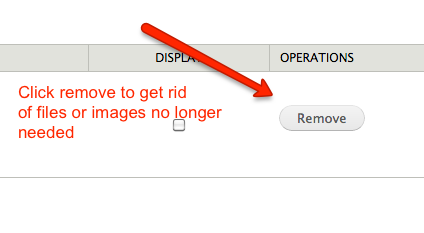

Remove an Image or File
If you no longer want an image or file in the system, you can remove it. Click image to see detail.
