Development of Heat Exchangers for Use As Replacement Plates

Development of Heat Exchangers for Use as Replacement Plates

In Distillation Columns: Proof of Concept and Collection of Design Information

²Graham Thomas Polley, ¹Edgar Enrique Vzquez Ramrez ¹Antonio Alberto Aguilar Moreno, ¹Jose Manuel Riesco vila, ¹Carlos Omar Ros Orozco.

¹Departamento de Ingeniera Mecnica, Universidad de Guanajuato,

Carretera Salamanca?Valle de Santiago km. 3.5 + 1.8 km, Comunidad de Palo Blanco, Salamanca, Gto., Mxico

Telfono: 01 464 64 79940 ext. 2306

² Departamento de Ingeniera Qumica, Universidad de Guanajuato

Introduction

Separation of chemical species by distillation is an energy intensive process. Whilst it has been recognized for many years that the extraction of heat from intermediate stages within a distillation column can result in significant energy savings the equipment required to do this is generally expensive. For instance, in columns used for the distillation of crude oil small individual columns (side strippers) are often installed alongside the main distillation column.

In more recent years the option of actually undertaking the distillation inside heat exchangers has been examined. However, this usually results in significant reduction in the concentration driving forces used in the separation with significant effect upon column size and cost.

Work being undertaken at FIMEE is directed at the examination of an inexpensive form of heat exchanger (fabricated from parts manufactured for use in the motor industry) that can be installed as a replacement for a plate within an existing distillation column.

Exchanger Design

A distillation column consisting of a number of sieve plates is illustrated in Figure 1. A sieve plate is simply a flat plate through which a number of small diameter holes have been drilled. The vapor traveling upward through the column has sufficient velocity to prevent liquid flowing through these holes. As a consequence, a two phase mixture is produced on top of the plate. It is maintained on the plate by a weir. Whilst the vapor velocity is sufficient to prevent liquid flowing through the holes it is not high enough to carry liquid to upward through the column. Consequently, liquid and vapor separate above the reservoir formed by the weir with the liquid flowing down the plate down-comer that feeds the next plate down the column.

The new exchanger fits in the space of two existing plates. The upper outlet then acts as a sieve plate. The liquid over flows the weir and feeds the next plate down the column.

Figure 1. Distillation Column Arrangement and New Exchanger

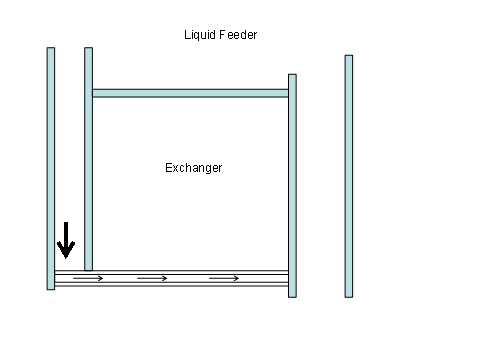

The proposed design has two significant features. The first is a liquid feeder plate that distributes the liquid from the feed down-comer across the heat exchanger. This is illustrated in Figure 2.

Figure 2. Liquid Feeder

This base of this plate is sealed. The upper plate is perforated.

The second feature is the ?flow inducer? and is illustrated in Figure 3.

Figure 3, Flow Inducer

Vapor flowing from the sieve plate below the exchanger passes through tubes installed in the base of the liquid feed plate. These tubes protrude into the individual heat exchanger tubes. Liquid from the feed down-comer is then entrained by this vapor flow and drawn through the heat exchanger.

Experimental Apparatus

The apparatus used in this study only considers hydraulic performance of the heat exchanger. It consist consists of a single transparent tube (in order that flow patterns can be observed using high speed photography) that represents a tube within the heat exchanger that is fitted with flow inducer (as described above - Figure 3).

The rig (both schematic and photograph) is shown in Figure 4.

This tube sits inside a large diameter tube that provides a reservoir of liquid. The reservoir has gauge marks that are used to measure the height of liquid above the flow inducer.

Liquid is fed to the feed reservoir from tank A. The flow being controlled by a valve positioned in the feed leg.

Air is injected into the tube at a controlled and measured rate (measured using rotameters).

The two-phase mixture leaving the exchanger tube is separated in a tank (tank C), with liquid flowing to a collection vessel (tank D). This vessel is used to measure the rate of flow of liquid through the exchanger tube (through measuring the time to collect a given quantity of liquid). On completion of the measurement this liquid is emptied into tank B. Tanks A and B operate on a constant recycle in order to minimize pressure variation in the feed leg and provide good flow control (confirmed by differential height calculations during collection in tank D).

Figure 4. Experimental Rig

Analysis of Experimental Data

Data obtained in the experiments are given in Table 1.

The head required to provide the recirculation is assumed to consist of three terms: gravitational head (a function of the voidage within the tube), frictional losses and a kinetic energy term. This kinetic energy ter mis the difference between that of the two phase flow leaving the tube and that of the liquid and vapor flow entering the tube. The kinetic energy of the vapor entering the tube is calculated from the measured air flow. The kinetic energy of the liquid entering the tube is assumed to be zero.

A ?homogeneous? model is found to provide good correlation of the measurements for conditions in which frictional lossses dominate. Accuracy of prediction falls as the % of overall pressure drop due to kinetic effects increases. This suggest that assumption that the incoming liquid has zero kinetic energy is incorrect.

Further experimentation is necessary to determine the significance of kinetic energy effects within the wter injection system.

Table 1. Experimental Data and Predictions of Homogeneous Flow Model

Evaluation of Thermal Performance

Heat transfer within the tubes of the exchanger will be controlled by the balance of two mechanisms: two-phase convective heat transfer and nucleate boiling heat transfer.

The convective heat transfer coefficient is given by:

The predictions of this equation have been compared with a large data base of measured heat transfer coefficients during upward flow boiling within circular tubes. The data are well correlated.

The principle problem that has been identified is that under many circumstances the liquid Reynolds Number falls in the laminar flow region. But this leads to the identification of two potential improvements in the exchanger design. These are the provision of a liquid recycle and the use of tube inserts to promote heat transfer within the exchanger.

Linking Column Design, Exchanger Design and Integration

The vapor flow thru the column is set by the column duty.

The maximum cross section of the heat exchanger is dependent on the area taken up by the down-comers. This cross section can be related to the number of tubes installed in the heat exchanger allowing calculation of the minimum mass flux of vapor flowing through an exchanger handling the specified column duty. Higher mass fluxes are obtained by reducing the number of tubes in the exchanger.

The mass flux of liquid flowing through the exchanger can be set independently by adjusting the positioning of recycle vanes installed in the liquid down-comer.

So, it is possible (using a quite simple spreadsheet) to determine the heat transfer coefficient achieved in the heat exchanger for different combinations of vapor and liquid mass fluxes. The homogeneous pressure drop model will then allow calculation of minimum tube length for the heat exchanger.

Knowing the overall heat transfer coefficient for the heat exchanger the heat load obtained for a given temperature difference between the column and the fluid with which it is integrated.

Conclusions

The concept of an integrated internal heat exchanger that takes position previously occupied by distillation plates has been demonstrated using a simple apparatus.

It has been found that the hydraulic behavior of such an exchanger is well modeled by a homogeneous flow model.

There is significant scope to improve the heat transfer performance of such exchangers by installing tube inserts.

The flexibility of such exchangers can be improved by installing vanes in the liquid down-comers in order to provide liquid recycle and increased liquid flow through the exchanger.

A procedure that allows the engineer to link column duty, heat exchanger design and process integration opportunity has been developed.
