Environmental, Health, and Safety
Metal Enclosure Protects Electronic Connectors
The E-Xtreme rectangular enclosures protect electrical components and connectors in harsh industrial environments. The enclosures use anti-corrosion aluminum with a patented titanium-plasma coating that protects against UV radiation. They can handle a temperature range from –40°C to 125°C (or –60°C to 180°C with the silicone gasket). The coating also protects against harsh chemicals and long-term exposure to salt mists. Two types of levers are available for the enclosures. The C-type levers provide IP65/IP66 protection and are suitable for environments with ultraviolet rays, corrosive chemicals, and frequent mating, while the V-type levers provide IP66/IP67 protection and are suitable for environments with high humidity and low temperatures.
Mencom

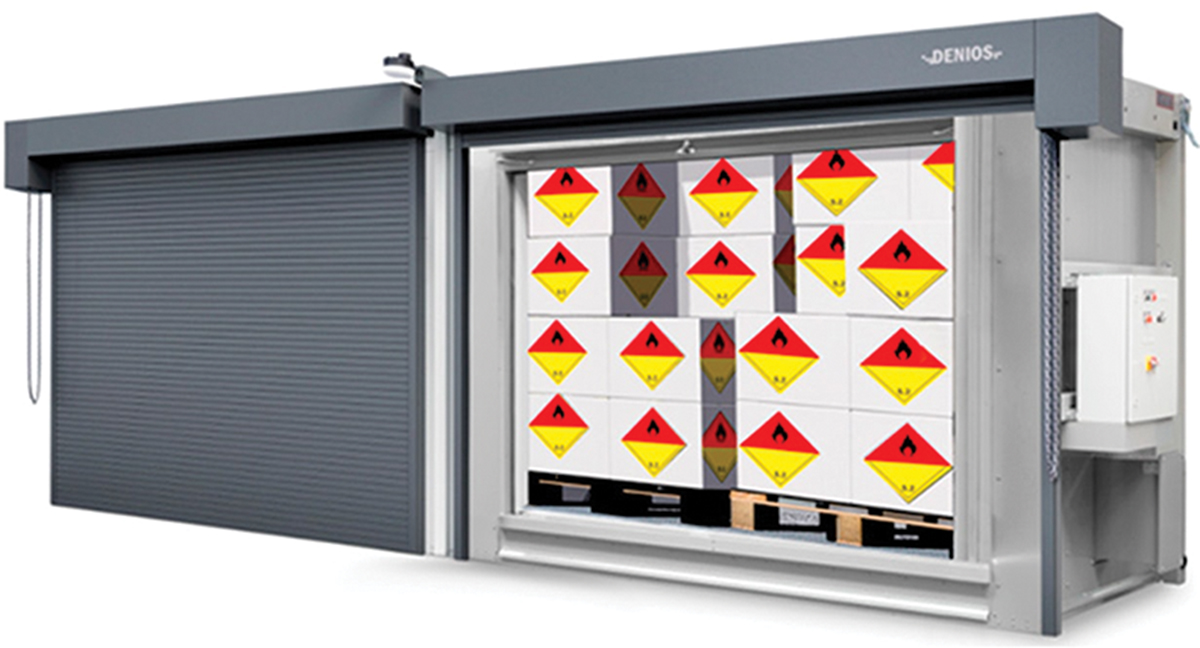

Fire-Rated Storage Buildings Are Suitable for Battery Containment
The Rack Fire Protect (RFP) buildings provide storage for lithium-ion batteries and other closed-container flammable materials and corrosive chemicals. These buildings are fire rated for two hours at 2,000°F (1,093°C), minimizing the risks of potential fire from damaged, malfunctioning, or deep-discharged batteries from exiting the containment site and spreading to the work site. The racks inside are adjustable, allowing for storage of batteries in different shapes and sizes. The RFP buildings comply with fire regulations and can be placed inside or outside of a facility.
DENIOS

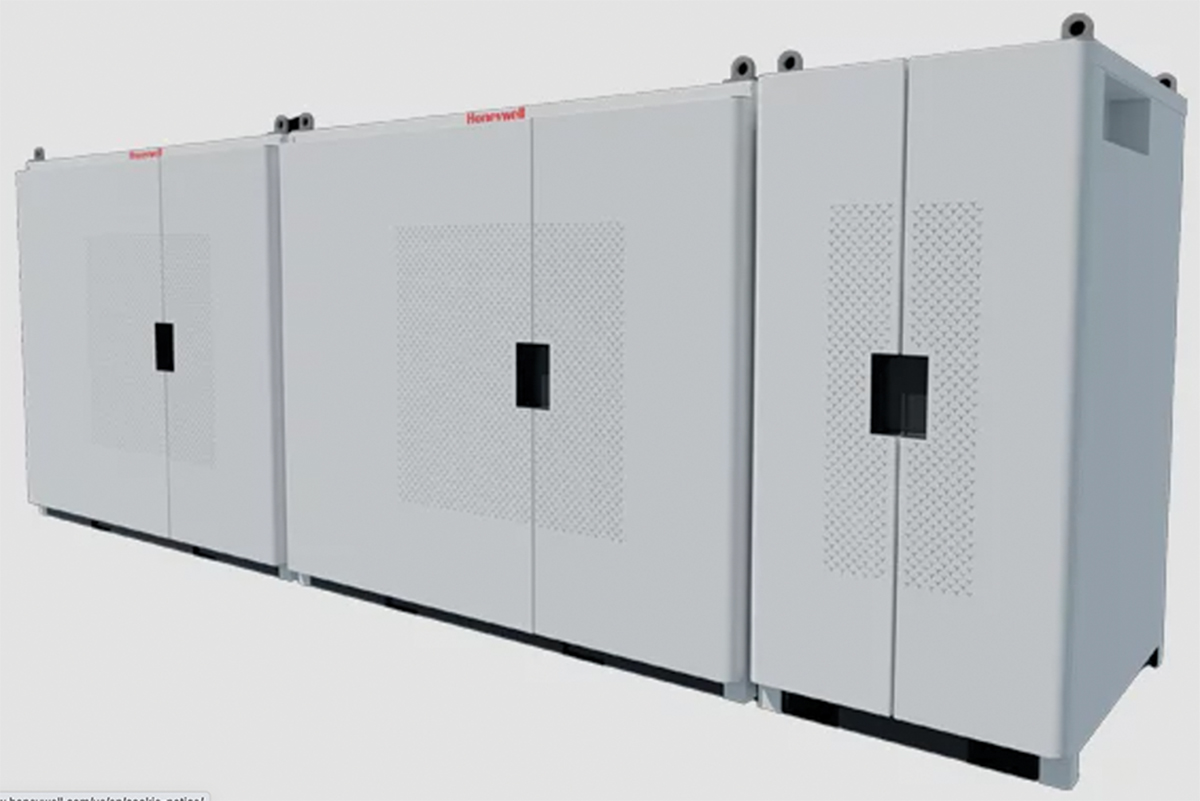

Battery System Offers High Energy Storage Capacity
The Ionic modular battery energy storage system (BESS) has a higher energy density than comparable systems and is designed for easy installation. This BESS has an approximate energy capacity range that can be scaled from 700 kilowatt hours (kWh) to 300 megawatt hours (MWh), and it can last up to two hours at the maximum rate of discharge. For enhanced safety, the unit has three layered battery management systems (BMSs) to monitor battery health, and it can be configured with Li-ion Tamer to prevent Li-ion runaway reactions. This system is compatible with batteries from multiple manufacturers.
Honeywell International, Inc.
Indicator Warns of Potential Liquid Overflow
The talking electronic liquid level indicator (TELLI) is a non-contact liquid level measuring device that is affixed to the outside of any vessel. When liquid levels inside the container rise and reach the TELLI, it signals to empty the container to avoid overfilling and potential spillage. It can be powered by a USB cable plugged into a charging brick or computer. The device works on both glass and plastic containers and can fit vessels as small as 2 L and as large as 40 gal with the elastic band stretching up to 54.5 in. It has been Underwriters Laboratories (UL) tested for non-sparking and is great for use on high-performance liquid chromatography (HPLC) waste containers.
CP Lab Safety
Instrumentation

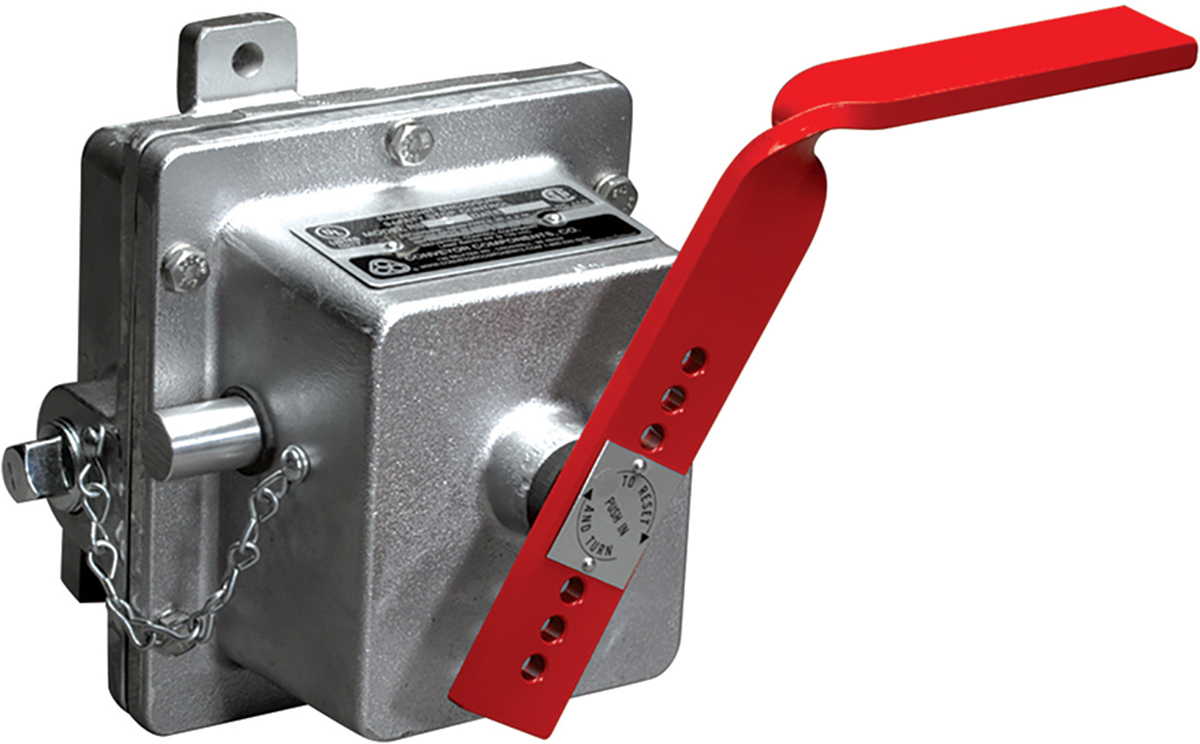

Safety Control Shuts Off Moving Machinery
The Model RS is a rugged safety stop control that shuts off conveyors and other moving equipment in emergencies. It is operated by simply pulling the cable. The outputs of the safety pull cord can control up to four separate circuits, depending on the model. The housing is constructed of corrosion-resistant cast aluminum with optional polyester or epoxy powder coating.
Conveyor Components

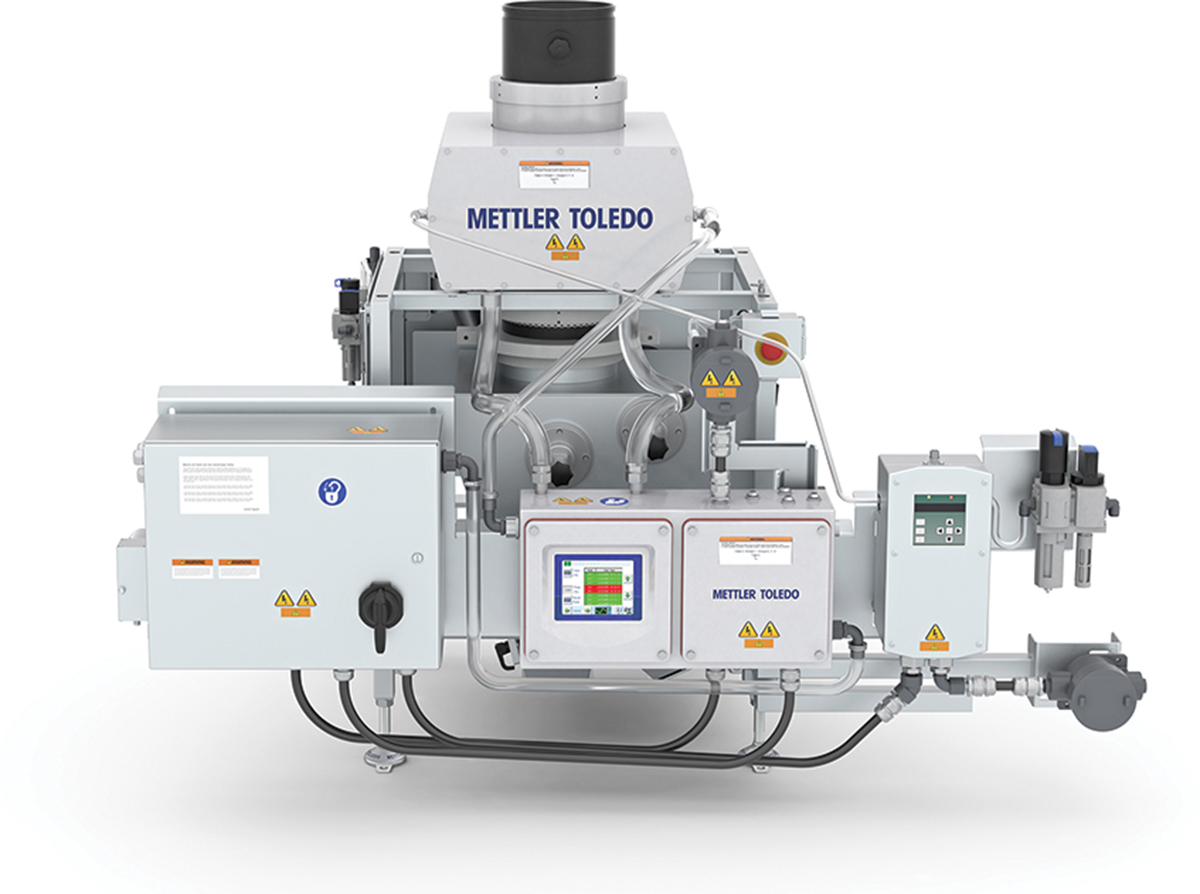

Explosionproof Metal Detectors Are Suitable for Hazardous Locations
These cETLus-certified explosion-proof metal detectors are designed for use in industrial environments where the risk of an explosion is a concern. They meet all regulations for use in Class II, Div. 2 hazardous locations. The models include the Profile Gravity Flow (GF) series, Profile Throat (T) series, and Profile Super Throat (ST) series. Each model is housed in a dust-tight enclosure and features intrinsically safe components and qualified accessories. These metal detectors are suitable for applications involving free-falling powders, grains, and granules, including flour, sugar, and other foods, as well as in pharmaceutical, nutraceutical, cosmetic, personal care, and chemical processes.
Mettler Toledo
Speed Drive Is Adjustable through Online Portal
The SINAMICS G220 is an adjustable speed drive that is easily integrated into industrial processes and cloud or edge applications. The drive comes with an integrated web server for commissioning, making setup faster and easier. This drive reduces harmonics by up to 97%, which reduces the possibility of overheating. This product can be used with the manufacturer’s SINAMICS Smartdrive totally integrated automation (TIA) portal, which allows operators to digitally integrate and optimize controllers, human-machine interfaces (HMI), and drives.
Siemens
Electrodes Measure Over a Wide Range
The SE Series pH, oxidation-reduction potential (ORP), and dissolved oxygen (DO) sensor electrodes are designed for steam sterile environments and are 12 mm in diameter. They are suitable for autoclave, steam-in-place, and clean-in-place applications in the pharmaceutical and biotech industries. The sensors offer several months of service life with stable output and collect measurements over a wide range. The pH sensor measures from 0.00 to 14.00 pH; the DO sensor measures from 0 ppm to 20 ppm; and the ORP sensor measures ±1,500 mV. All sensors feature a wide operating temperature range from –5°C to 130–135°C (–23°C to 266–275°C).
Electro-Chemical Devices
Total Organic Carbon Analyzers Provide Quick Measurements
The CA78 and CA79 are online total organic carbon (TOC) analyzers that utilize UV-oxidation and differential conductivity measurements. They have a fast response time of 50 sec, enabling quick response time to potential contamination and water quality deterioration. The CA78 is a suitable option for the energy, semiconductor, and disinfectant manufacturing sectors, while the CA79 is pharmaceutical industry compliant, meeting or exceeding the requirements of the U.S. and European Pharmacopoeias.
Endress + Hauser

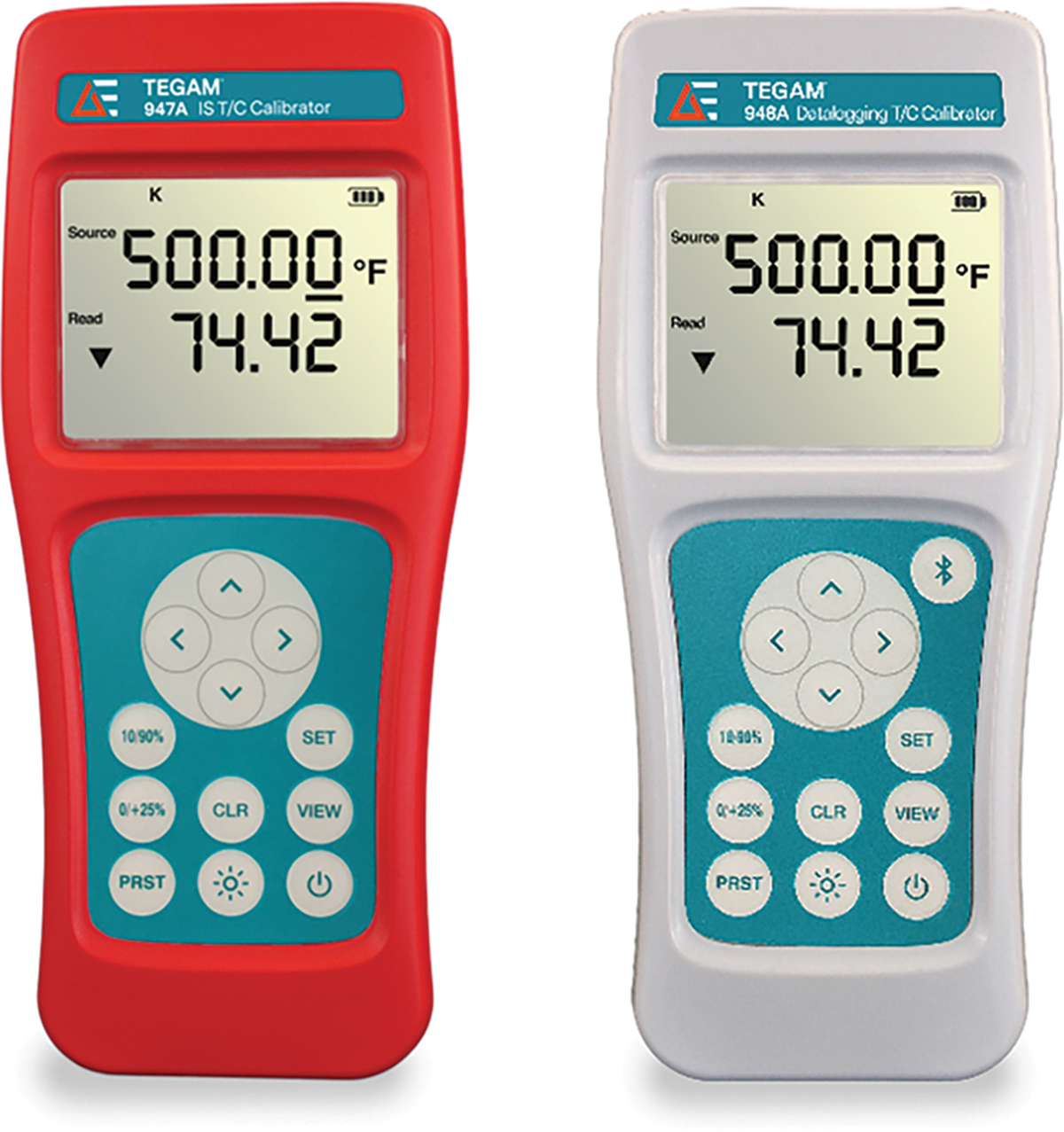

Temperature Calibrators Are Suitable for Hazardous Environments
The 947A and 948A are handheld temperature calibrators designed for efficient integration into hazardous areas in manufacturing applications. The 947A is suitable for hazardous environments where flammable gases, vapors, or liquids are present. It is compatible with 14 types of thermocouples. The 948A features Bluetooth capabilities for compatibility with Windows, iOS, or Android platforms. Both calibrators are laboratory grade, have a resolution of 0.01°C, and have a 500‑hr battery life.
TEGAM Inc.
Cold Cathode Gauge Has a Wide Measurement Range
The PENNINGVAC series PTR 90/225 RN is a cold cathode gauge with a wide measurement range and ultra-low turn-on pressure that is used for measuring vacuum pressure. The gauge has a pressure range of 10–9 to 10–2 mbar, which allows it to measure into the high vacuum region. Analogue 0–10 V linear outputs and digital communications options are available. Combined cold gauge options are also available that allow for an extended range of 10–9 mbar to atmospheric pressure by integrating a Pirani gauge.
Leybold GmbH
Analyzer Measures Carbon Dioxide in Real-Time
The CarbonHound carbon dioxide (CO2) gas analyzer quantifies the amount of CO2 in sample streams in real-time using a non-dispersive infrared (NDIR) method of measurement. The analyzer is suitable for use in chemical and biogas plants, gas processing facilities, and landfill industries. It has a large color touchscreen that provides current and past readings, alarm conditions, historical and real-time charts, procedure prompts, and failure indicators. It has an accuracy and repeatability of 3% of full scale and requires monthly calibration.
KECO

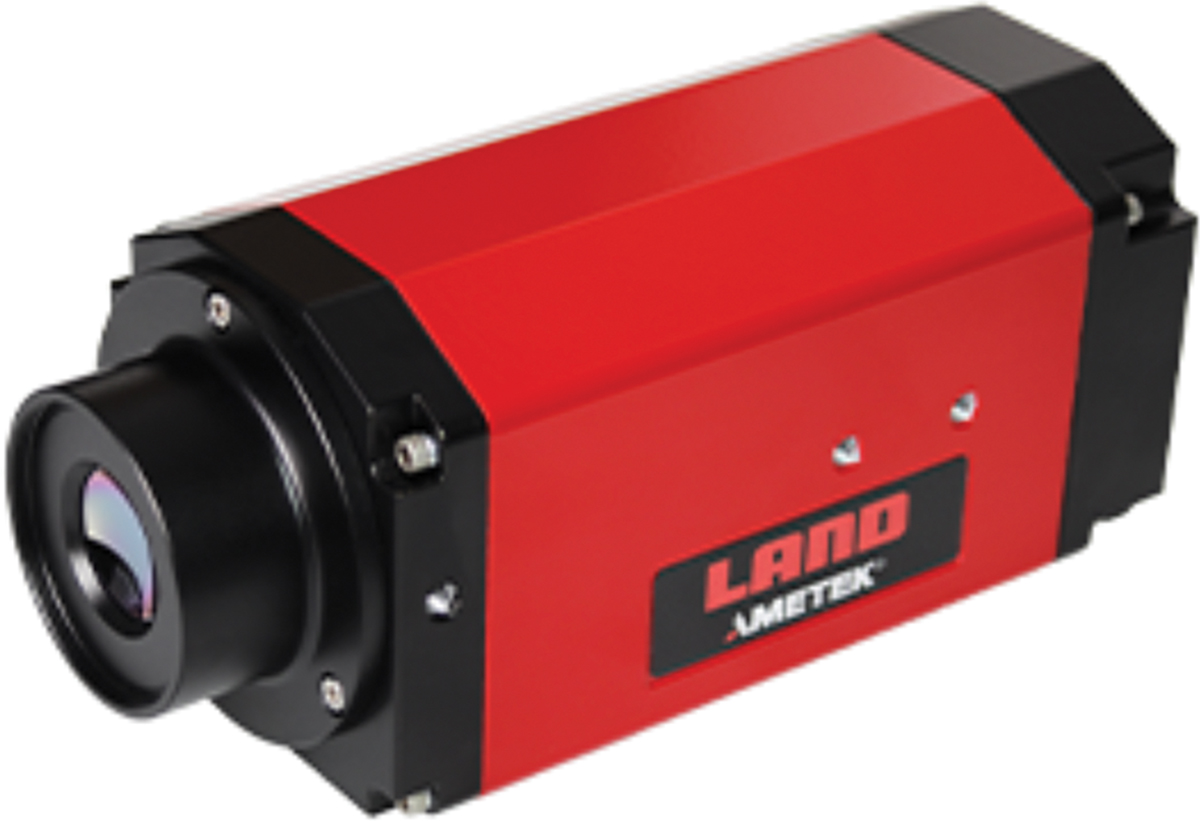

Thermal Imager Provides Clear Images in Harsh Conditions
The MWIR-640 390 is a mid-wavelength infrared thermal imager for use in harsh industrial environments. The imager can provide clear images through smoke or particulates in high-temperature processes, while also imaging surface structure detail in heat treatment applications. It has a pixel resolution of 640 × 480 with images and videos created at a maximum of 60 Hz frame rate. Three different lenses are available that offer a choice of optical field of view along with motorized focus. The imager covers two temperature measurement ranges: 500°C to 1,800°C (932°F to 3,271°F) and 300°C to 1,200°C (572°F to 2,192°F).
AMETEK Land

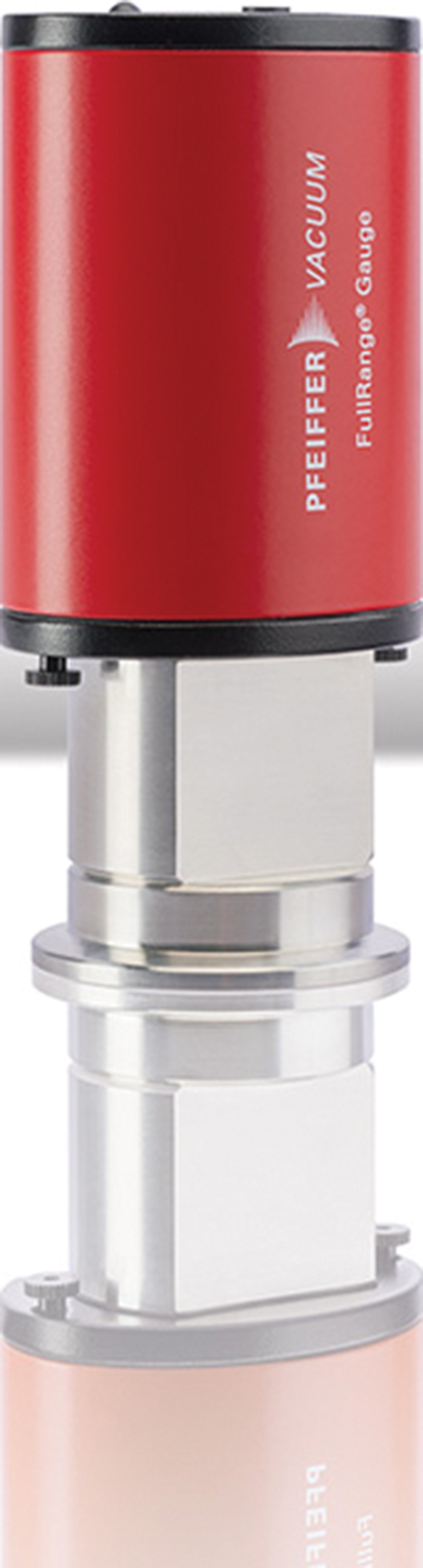

Vacuum Gauge Covers Wide Pressure Range
The PBR 360 is a compact vacuum gauge. Due to its size and design, it can be incorporated into vacuum process systems, analytical instruments, leak detection systems, and other applications. The vacuum gauge covers a pressure range of 5×10–10 to 1,000 hPa. It has two filaments that enhance operating reliability, process control, and longevity. They can also be serviced as they have replaceable sensors.
Pfeiffer Vacuum
Operations and Maintenance

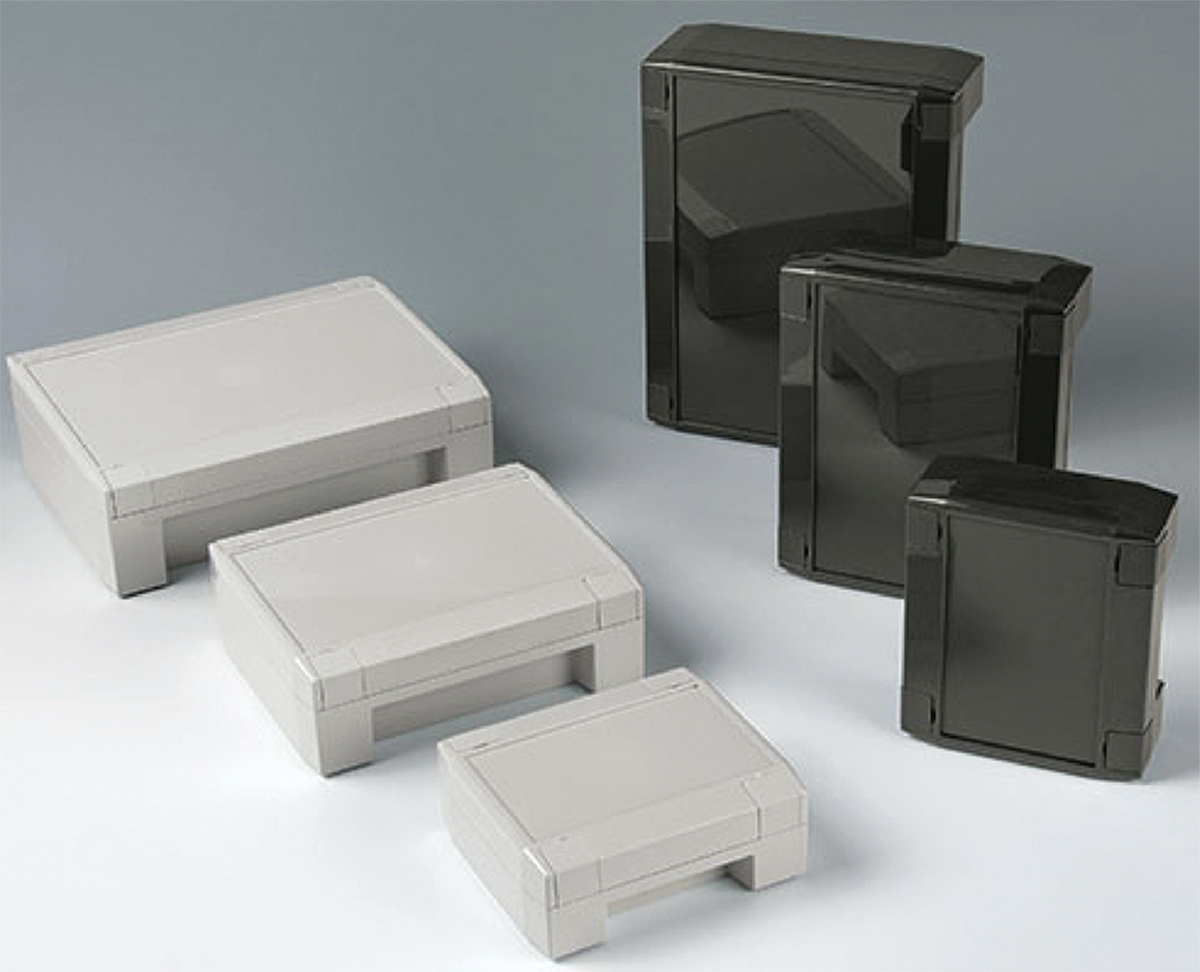

Electronic Equipment Enclosures Are Waterproof and Flame Retardant
The SOLID-BOX enclosures protect electronics in industrial and outdoor environments. They use a flame-retardant, V-0-rated material that offers high heat distortion temperature and chlorine- and bromine-free flame resistance. The enclosures are also rated IK08 for impact protection and IP66/67 for ingress protection. Available in different sizes and colors, they can be used as desktop or wall-mounted enclosures with screw channels under the design trims and mounting points on the rear.
OKW Enclosures
Tablet Case and Accessories Protect Devices in Industrial Environments
The Hardline Series includes cases, charging stations, and hand and breakaway shoulder straps for the iPad Air (5th generation). The case has been drop tested to four feet and is electrostatic discharge-safe, UV-durable, and flame-resistant. Its high-visibility black and yellow design allows for quick identification. The wireless charging stations are Qi-compliant and support 15 W fast charging, available in single- and four-bay configurations. The hand and shoulder straps allow for secure tech use in hazardous environments. The shoulder strap is adjustable and can also serve as a neck strap for hands-free carrying.
OtterBox
Fluids and Solids Handling
Electric Forklift Provides Efficient Material Transportation
Three electric forklift models are now available to accommodate customer needs. The Side-Entry End Rider, available in 6,000-lb and 8,000-lb models, is suitable for cross-warehouse transportation. The Center Rider Stacker has a lift capacity of up to 2,500 lb and can lift up to 72 in. The Industrial Tow Tractor has a towing capacity of 15,000 lb on flat surfaces. It has an AC drive motor and uses regenerative plugging to reduce energy costs. Both the Industrial Tow Tractor and Center Rider Stacker are compatible with Toyota lithium-ion batteries, and all three models offer optional features such as cold storage conditioning and PIN code access.
Toyota Material Handling
Autonomous Mobile Robot Transports Cargo
The ROEQ TMC130 is the top module of the OMRON LD-90x system that allows for automated transport and drop-off of cargo. This top module has a maximum weight of 130 kg. The ROEQ TMC130 is compatible with the ROEQ Cart130. A side laser kit and scanner configuration are available for increased navigation safety. The Assist software is designed for efficient setup, and each unit can be used alongside the manufacturer’s other products.
ROEQ

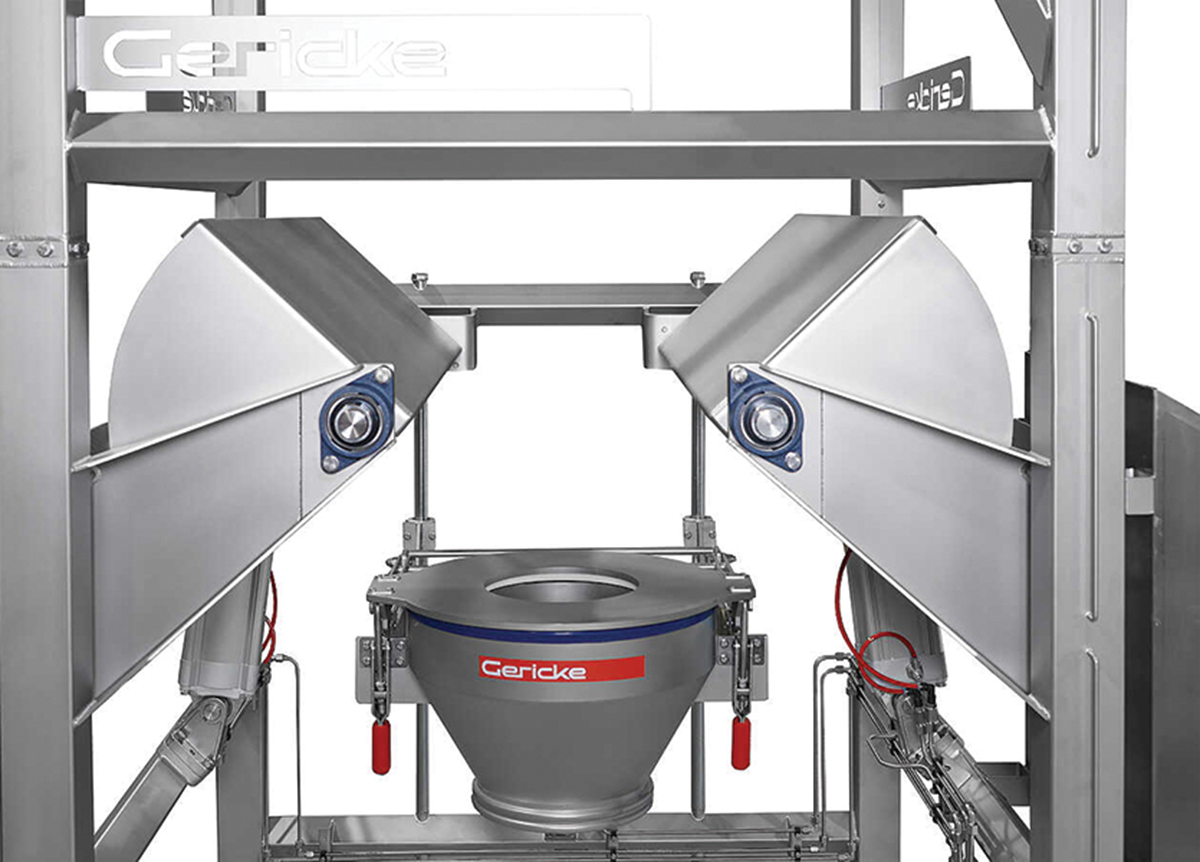

Big Bag Unloader Improves Hygiene and Safety
The updated design of the Big Bag unloading station has improved safety and workspace sanitation by reducing the number of moving parts, thereby making it easier for operators to access the flowing media. The angled top and bottom bar frames avoid spilling, and the redesigned under-massager improves product flow. The design removes beams that previously hindered operator access to the docking station, allowing operators to unload product from the back and sides of the unit.
Gericke AG
Heat Transfer

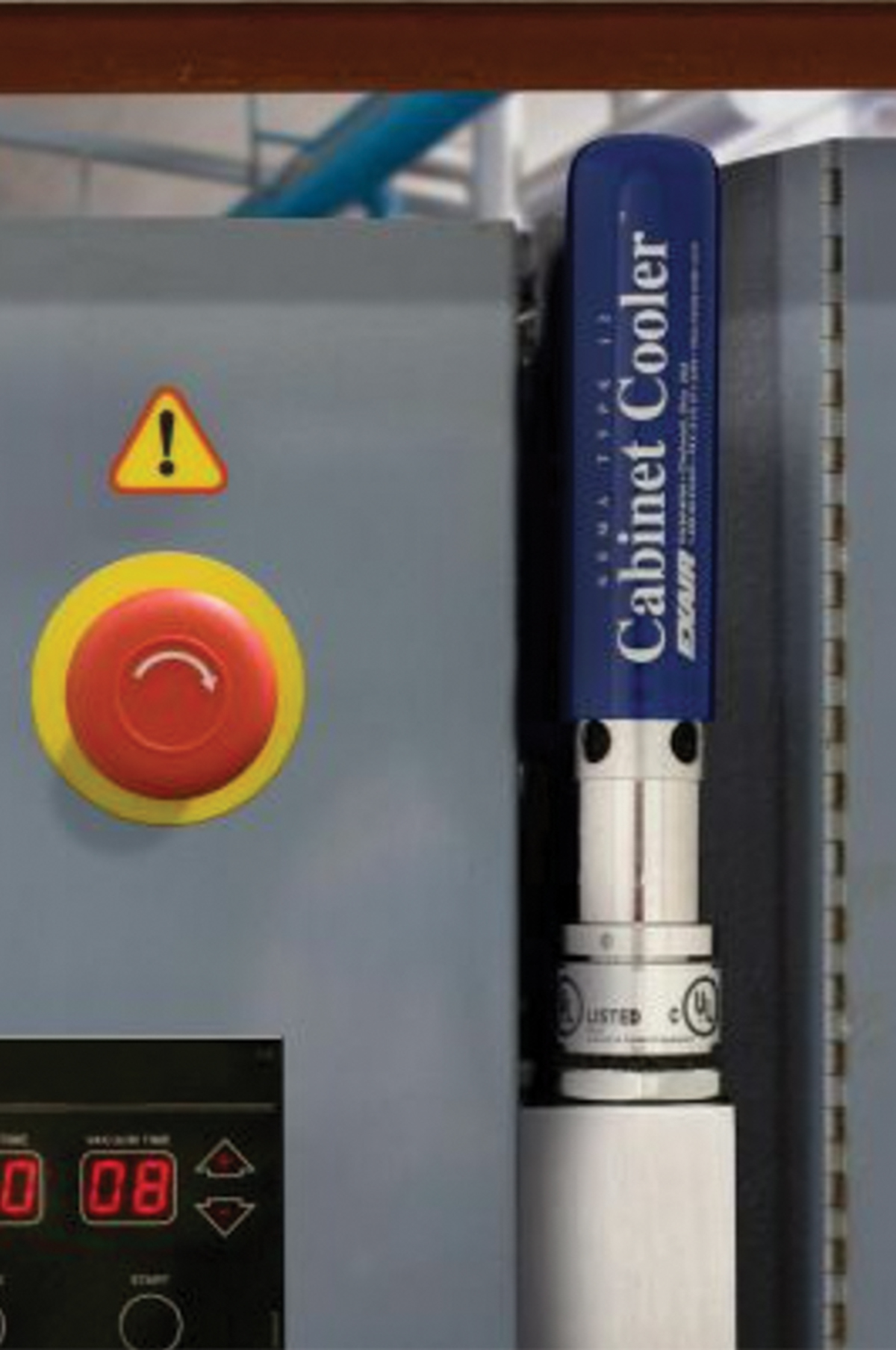

Cabinet Coolers Have Industry Certification
The National Electrical Manufacturers Association (NEMA) 4 Cabinet Cooler systems are CE certified, ensuring compliance with high industry standards. The cabinet coolers are constructed from aluminum and designed to cool dust-tight, oil-tight, splash-resistant enclosures, both indoors and outdoors. The cooler systems include a water-dirt filter separator to prevent condensate and dirt from entering the enclosure. They can be installed quickly through a standard electrical knockout.
EXAIR
Software
Process Simulator Includes Electrolyzer Module
The ProSimPlus software library now features an electrolyzer module, allowing users to include an electrolyzer in a larger industrial process simulation. The software creates accurate models of industrial processes, enabling a better understanding of a system and digital optimization. As hydrogen production expands across industries, this simulation software will be vital for clean energy applications. The software can calculate basic parameters like material and energy balances, as well as more complicated calculations like efficiency, electrical characteristics (voltage, current, electrical power), and voltage-current characteristic curves.
ProSim
Engineering Services
Pharmaceutical Equipment Manufacturer Offers On-Site Retrofitting
Belimed Life Science now offers on-site retrofit services to upgrade aging sterilizing and washing equipment before costly failures occur. These services can help protect pharmaceutical, biopharmaceutical, nutrition, and other manufacturers from extended shutdowns. Touchscreen human machine interfaces (HMIs), automated controls, and critical spare parts are all provided and installed on-site by trained technicians throughout the U.S. The services also upgrade data acquisition, recording, and management systems for improved data integrity and compliance with regulations.
Belimed Life Science
Company Provides Safety Validation Service
Pilz offers a safety validation service to analyze the degree of safety and regulatory compliance of equipment or processes. To best match the needs of a process, the company offers three levels of safety analyses that range from a basic analysis of machinery and functional safety to an in-depth validation of machinery safety, functional safety, risk reduction, and legal regulatory compliance. This validation service guarantees compliance with required independent safety validation standards.
Pilz GmbH & Co.
