Fluids and Solids Handling
Diaphragm Seal Is Suitable for Sanitary Applications
Diaphragm seals are used to separate media in a vessel from a pressure sensor, as the flexible diaphragm allows for accurate measurement without media contact with the sensor. The DSSA11SA diaphragm seal system is hygienic and has been approved by 3-A and the European Hygienic Engineering & Design Group (EHEDG). Diaphragm seal systems incorporating IO-Link capability for integration into digitalized structures are also available. This capability includes a diagnostic function that alerts operators to maintenance requirements. The seal is attached using the manufacturer’s TriClamp connection, which streamlines disassembly for cleaning.
WIKA

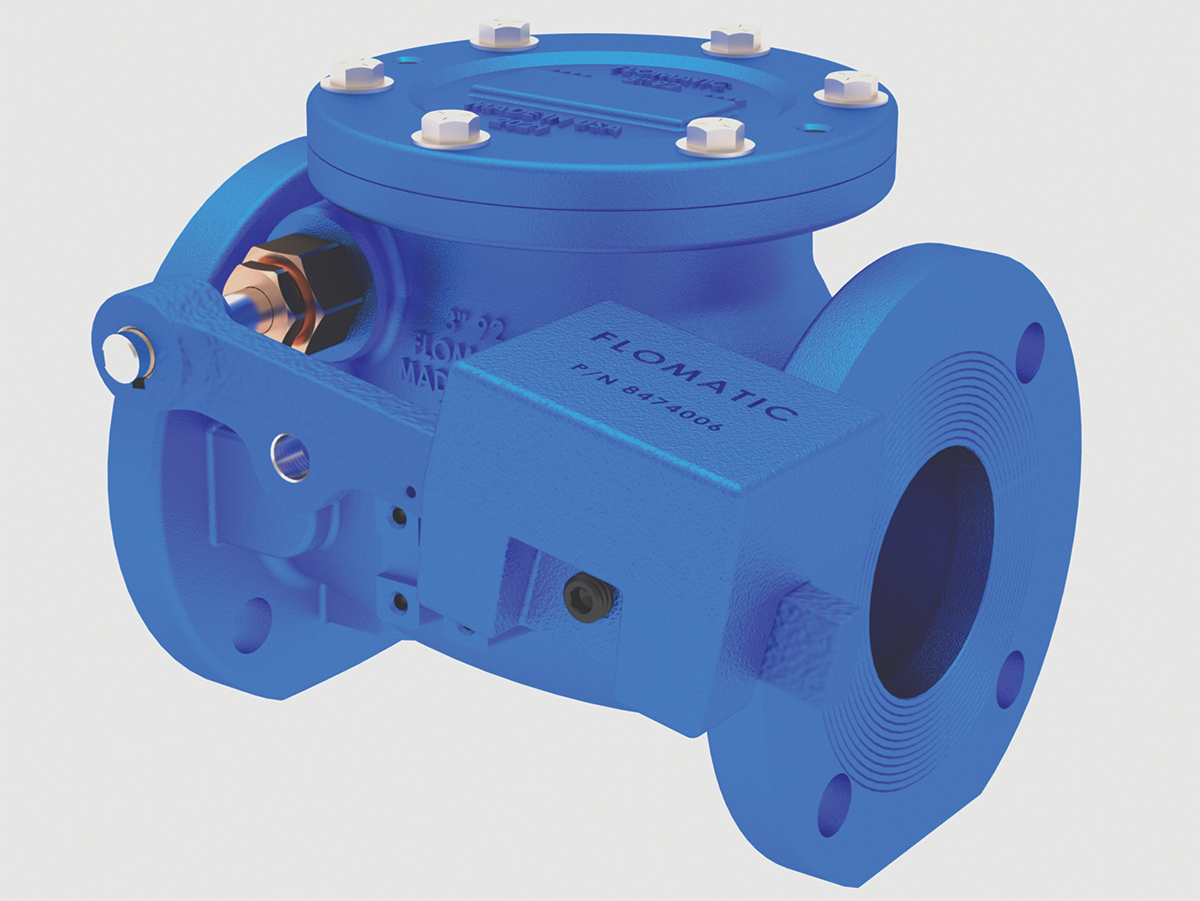

Swing Check Valves Offer Leak-Free Operation
Swing check valves ensure one-directional fluid flow using a disc that swings out during outflow and closes to prevent backflow. The Model 92–3-in. swing check valve offers high performance and durability, complying with American Water Works Association (AWWA) Standard C508 requirements and American Iron and Steel (AIS) provisions. The ductile iron body features a clear waterway design for unobstructed flow, while the valve’s O-ring design cover seal prevents leaks. The valve’s maximum operating pressure is 200 psi and the maximum temperature is 180°F.
Flomatic Corp.

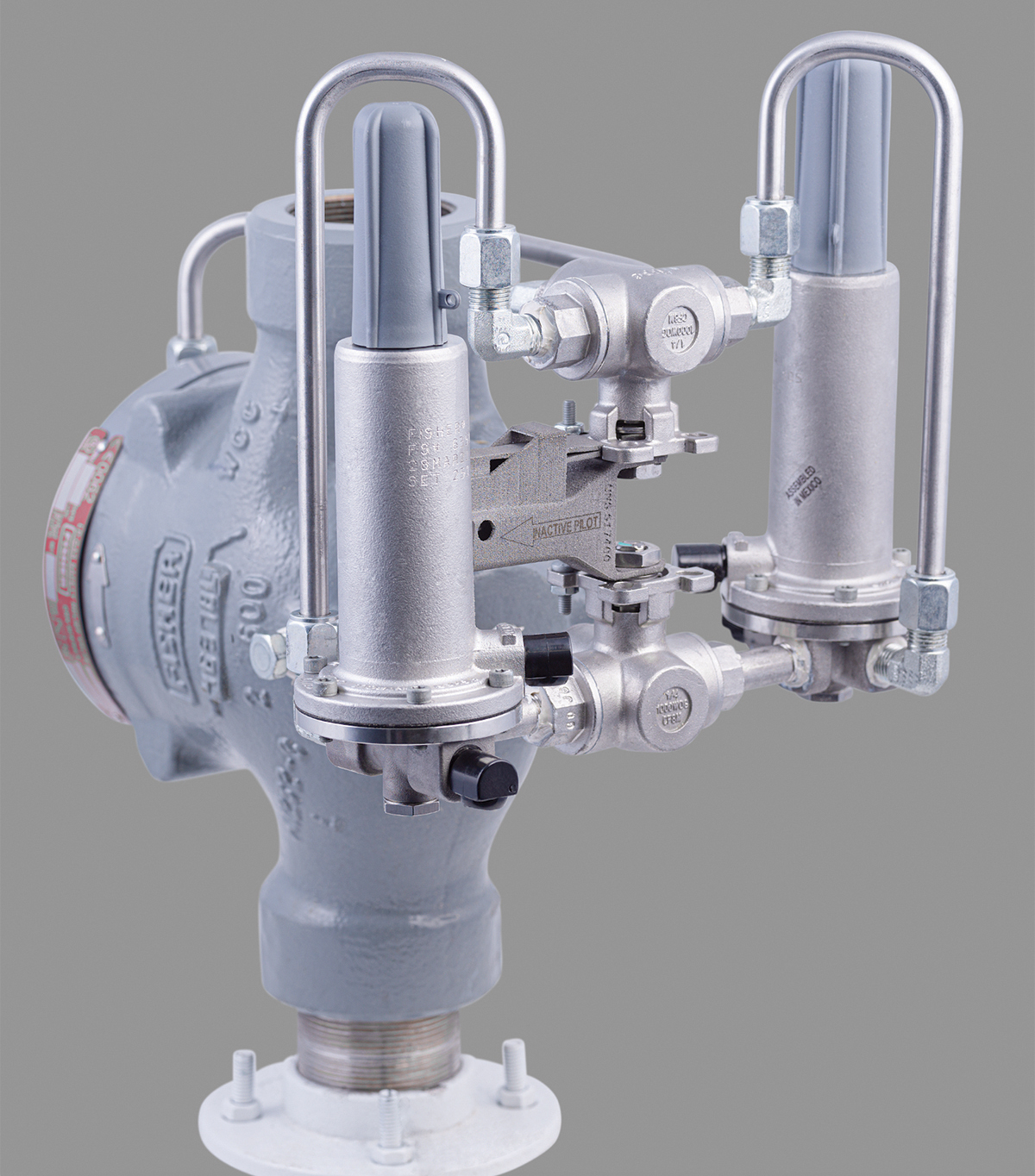

Pilot-Operated Relief Valve Provides Precise Pressure Relief Control
The Fisher 63EGLP-16 pilot-operated relief valve is a safety valve for pressurized bullet tanks storing liquid propane and anhydrous ammonia. This model features a 2-in. connection that simplifies installation and provides the same benefit as traditional multi-ported valves. The dual-pilot design facilitates easy pilot replacement while ensuring precise pressure relief control. The unit provides relief up to 10,540 standard cubic feet per minute (SCFM).
Emerson

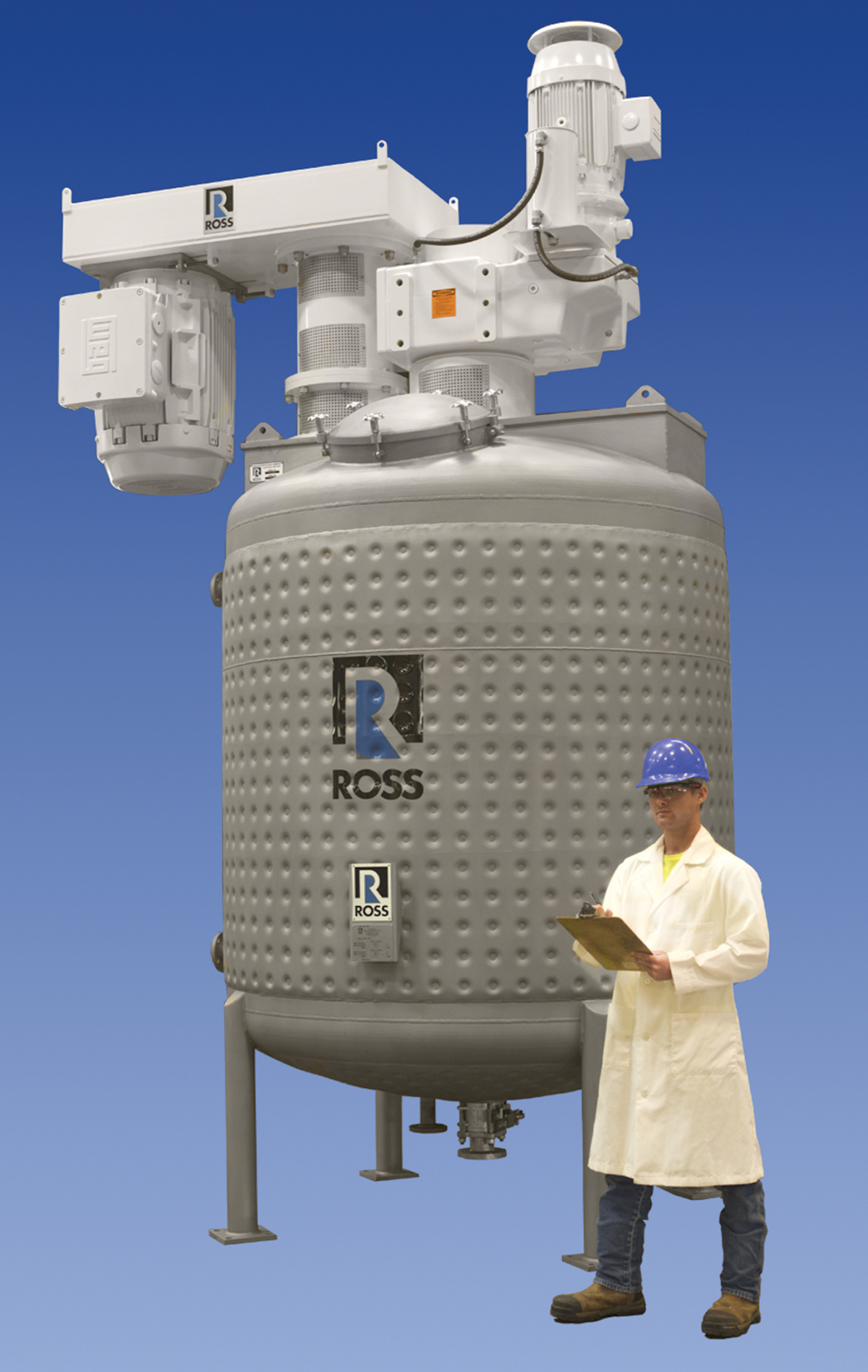

Dual-Shaft Mixer Homogenizes Large Batches
The FDA-1500 dual-shaft mixer processes high-viscosity dispersions and suspensions. The unit has a maximum mixing capacity of 1,500 gal and includes two independently driven agitators — a 150-hp high-speed disperser that can operate up to 695 rpm and a 40-hp two-wing anchor that forces media toward the disperser. The stainless steel mixing vessel includes a hinged manway for adding ingredients, and it is surrounded by a 50-psig dimpled heating/cooling jacket.
Charles Ross & Sons Co.
Engineering Services
Artificial Intelligence Tool Provides Summaries of Collected Research
Researching through decades’ worth of published research is time-consuming. Scopus AI is an artificial intelligence (AI) tool that quickly and accurately generates summaries of large amounts of research. The program allows researchers to rapidly compare and analyze compiled data, pinpointing trends and holes in the research. The tool draws from more than 27,000 academic journals and 7,000 publishers. To ensure the quality of the produced summaries, an independent board of researchers and librarians continually vets the accuracy of results.
Elsevier
Software
Machine Learning Modeling Interface Streamlines User Experience
The Graph UX interface visualizes machine learning (ML) modeling workflows to make ML more accessible to users of all skill levels. This interface is an updated version of the developer’s Studio UX software, and it now includes integrated data collection, real-time model evaluation, and post-processing of model outputs. The program can evaluate and run multiple models in parallel or in sequence, and the interface complexity can be adjusted based on the user’s modeling proficiency.
Imagimob

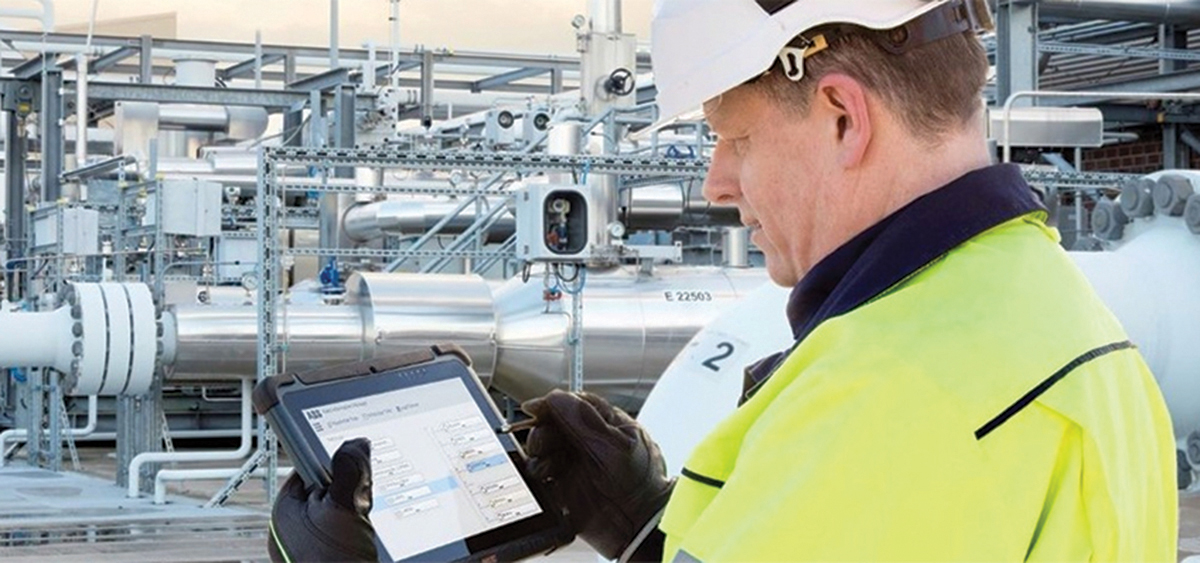

Field Information Manager Improves Team Data Sharing
The Ability Field Information Manager (FIM) 3.0 is the latest version of the device management software. It has been updated to improve team communication using Open Platform Communications United Architecture (OPC UA) and Process Automation Device Information Model (PA-DIM) to transmit data from field devices to cloud-based condition monitoring solutions. This software allows operators to remotely configure, commission, diagnose, and maintain fieldbus instruments. The software is compatible with various field protocols, including PROFINET, ASi-5, Ethernet APL, HART-IP, WirelessHART, and Profibus.
ABB
Instrumentation

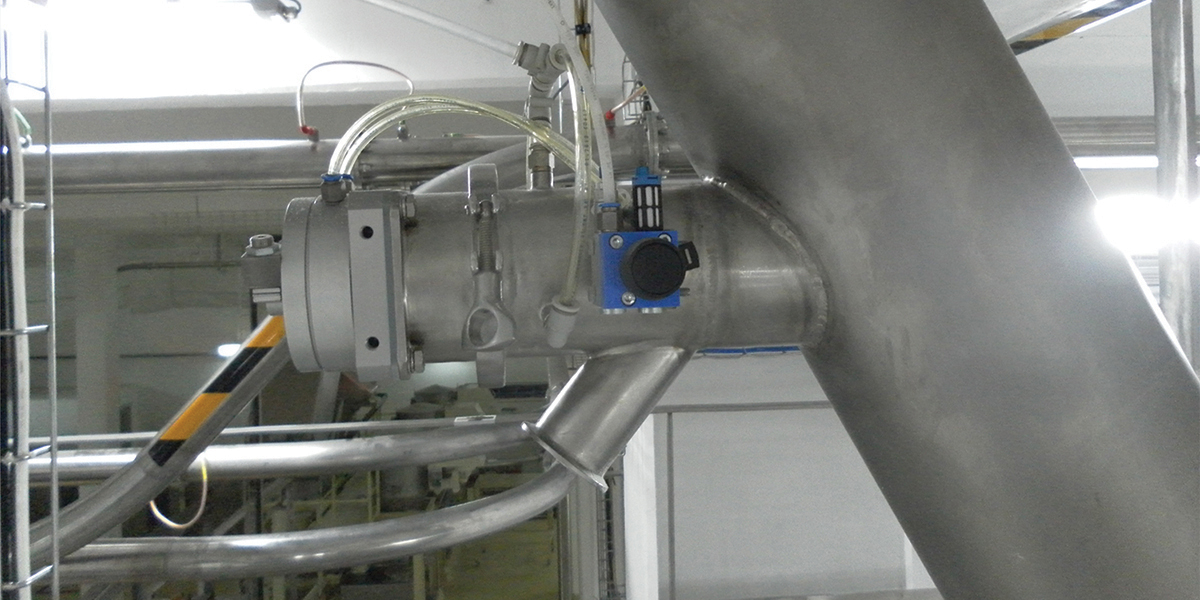

Sampling Valve Enables Efficient Product Sample Extraction
The sampling valve GSV allows operators to extract media samples from a process without interrupting production, making this a suitable addition to food, pharmaceutical, chemical, and other manufacturing processes. The sampling valve can be installed directly onto reactors, hoppers, and other process equipment to ensure the quality of samples and eliminate product loss. The valve is made of stainless steel and is easy to remove for sanitation. Semi-automated and fully manual models are available.
Gericke USA
Operations and Maintenance

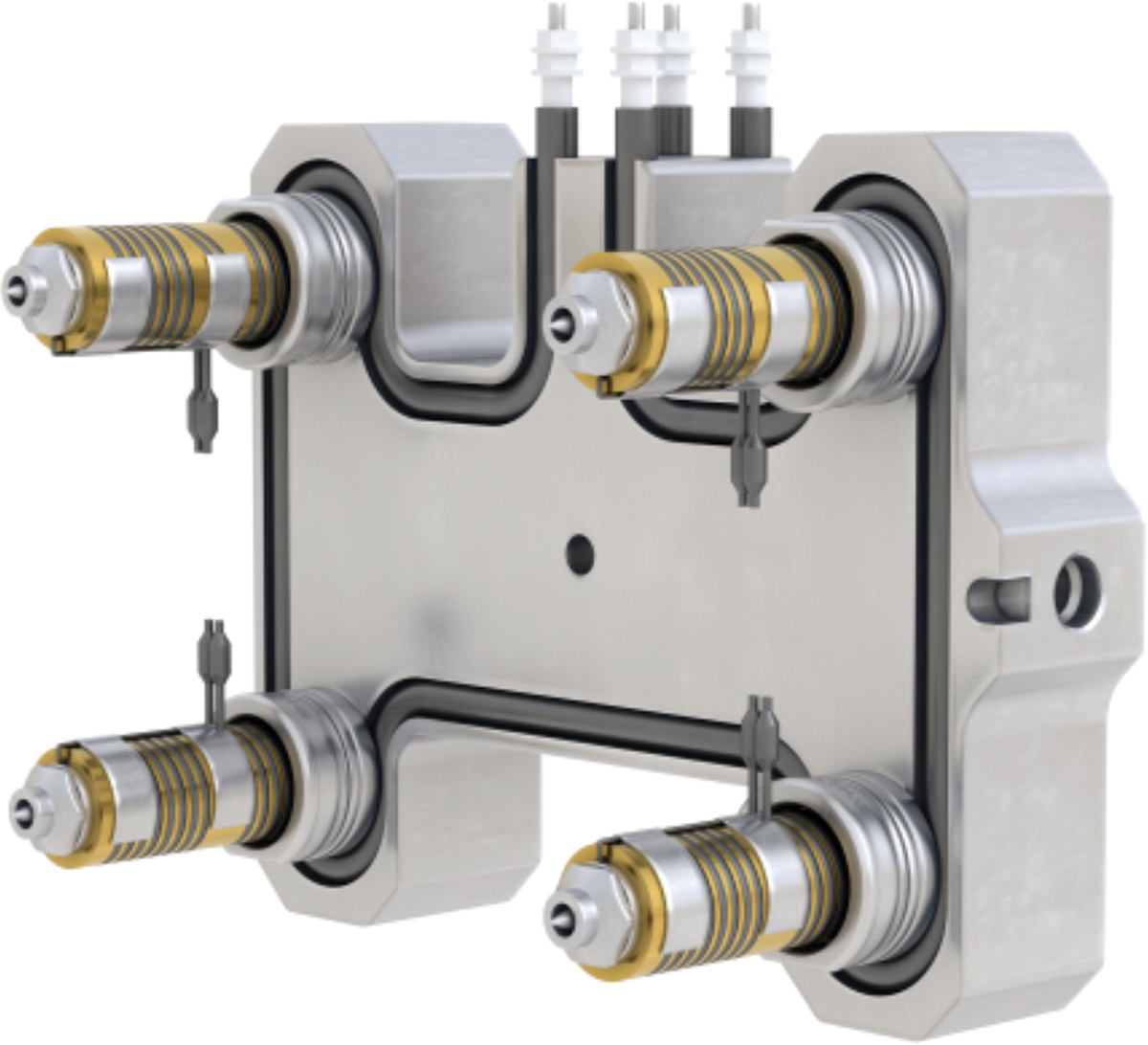

Hot Runners Accommodate Various Process Scales
In plastics manufacturing, hot runners are used to melt and transfer resin into a mold. The EcoONE-Series hot runners offers a wide range of configurations for use in small commodities production. The series includes five standard non-valved and five standard valved gating options. It features a nozzle shot range capacity of <5 g up to 3,500 g. The hot runners are field serviceable and are made of standard components to enable rapid part sourcing and replacement.
Mold-Masters
Materials and Chemicals
Plasticizer Is Derived from Renewable Carbon
Plasticizers are often added to polyvinyl chloride (PVC) during manufacturing to create a flexible and elastic product. Pevalen Pro 100 is a non-phthalate PVC plasticizer made of 100% renewable carbon content. This additive can be easily substituted into existing formulas and processes, as it demonstrates a high plasticizing efficiency and low volatility. Additionally, the absence of phthalate reduces the possibility of negative health effects on personnel and consumers.
Perstorp
Epoxy Meets Food Processing Requirements
EP42HT-2FG Black is a two-part, moderate heat-cured epoxy that is U.S. Food and Drug Administration (FDA) 21 CFR 175.105-certified for indirect food contact applications. The epoxy is resistant to antibacterial agents and a wide range of harsh chemicals, including acids, bases, and solvents. The adhesive displays a high heat resistance, with a temperature range of –60°F–450°F. The epoxy has a tensile strength of 11,000–12,000 psi and a tensile modulus of 400,000–450,000 psi. In addition, the epoxy is electrically insulative, making it suitable for potting and encapsulation-type applications.
Master Bond
