The Offshore Technology Conference (OTC) is an annual event where energy professionals meet to advance their scientific and technical knowledge related to offshore resources in the fields of drilling, exploration, production, and environmental protection.

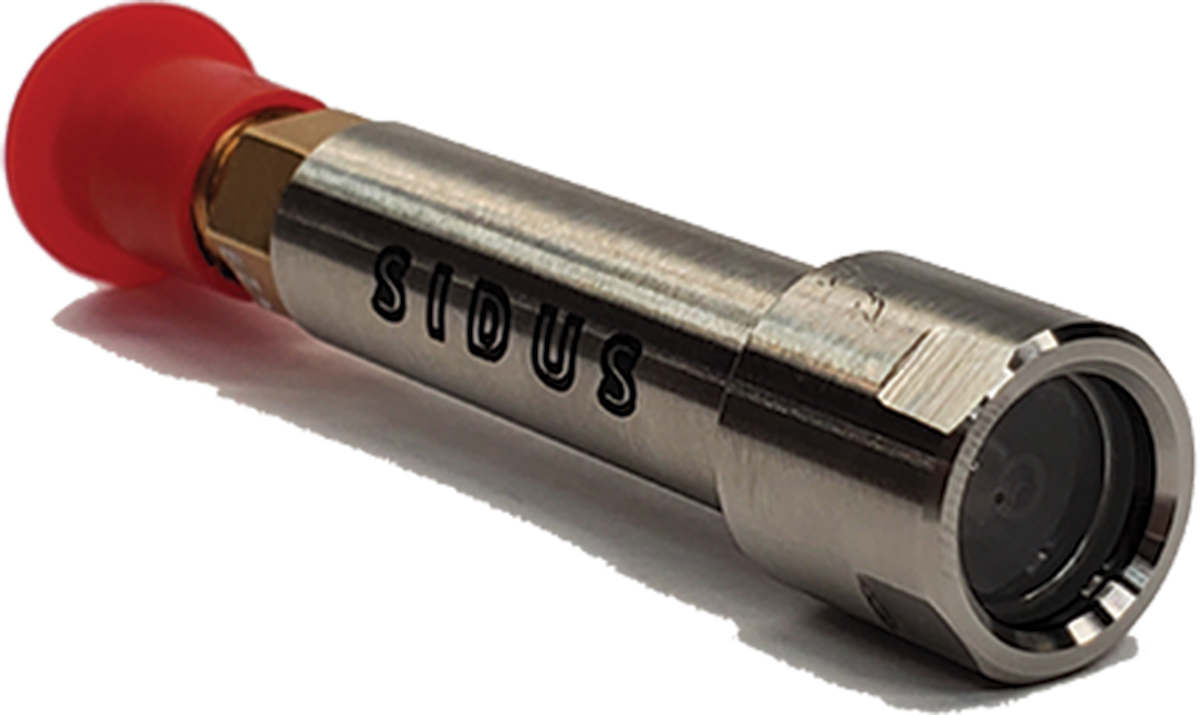

Mini Camera Operates Under Water
The SS560 ultra mini camera is a compact, submersible color video camera. It is pressure rated for depths up to 6,000 m and can operate in harsh environments. The camera consists of a 6L4V titanium housing and a sapphire viewport. The built-in white LED ring light is adjustable and has eight illumination settings. It is compatible with 5–32 V and can provide a composite video output with a resolution of 640 × 480 pixels, meeting Phase Alternating Line (PAL) and National Television Standards Committee (NTSC) standards.
Sidus Solutions
Booth #1242

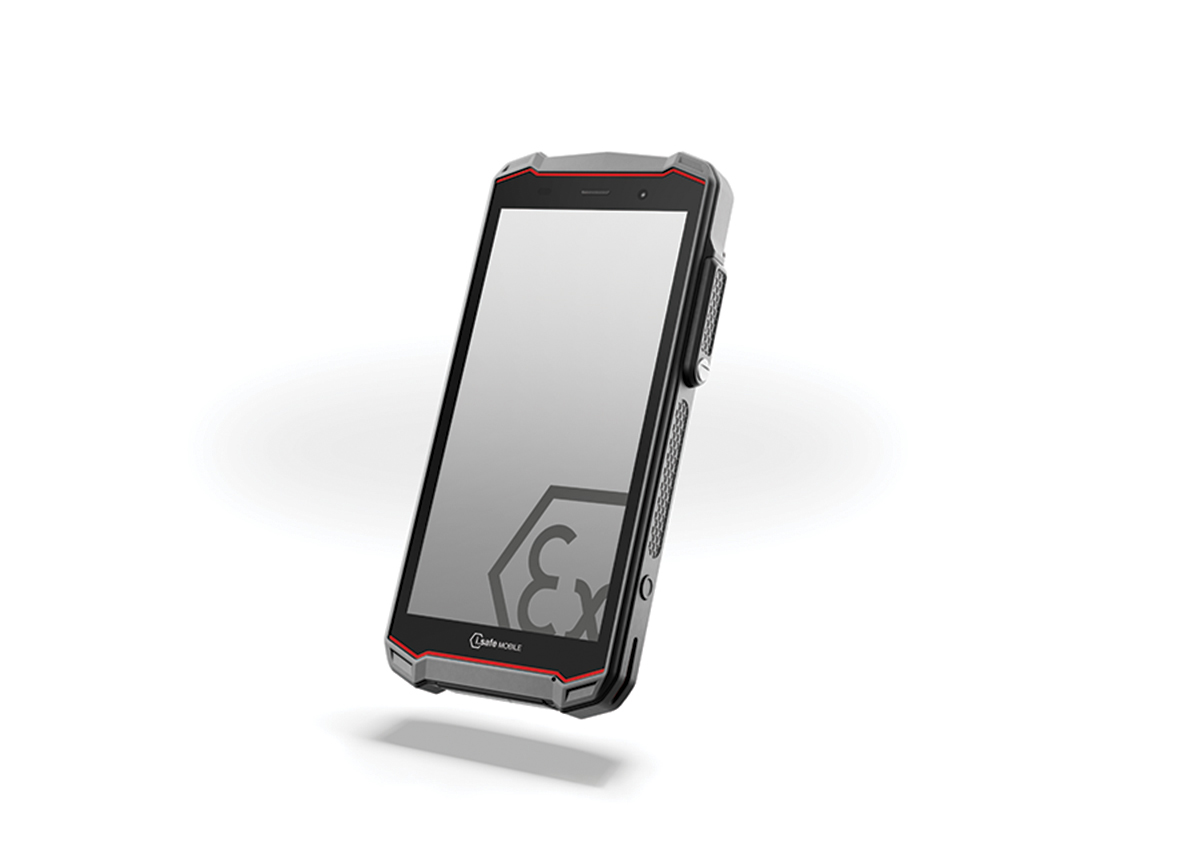

5G Smartphone Approved for Hazardous Environments
The IS540.1 is a 5G smartphone rated for use in explosive atmospheres (ATEX) and International Electrotechnical Commission explosive atmospheres (IECEx) Zone 1/21. The smartphone features an Android 12 operating system, a Qualcomm QCM6490 Octa Core processor with 8 GB of RAM and 128 GB of storage. It has a 6-in. display with Gorilla Glass that is still usable with gloves. The 16-pin ISM interface allows peripheral devices such as barcode scanners or thermal cameras to be connected to the smartphone for use in the field.
i.safe MOBILE GmbH
Booth #1346
Metal 3D Printer Is Suitable for Large Builds
Sapphire XC 1MZ metal 3D printer offers a laser powder bed fusion (LPBF) print build volume of 600 mm by 1,000 mm. It has eight 1-kW lasers with self-cleaning laser windows, allowing full-height printing without interruption. The printer also has a fast noncontact recoater to decrease the time between build layers during printing. The printer is suitable for users in the aerospace, energy, and defense industries.
Velo3D
Booth #1205
Tablet Enclosure Meets Explosionproof Standards
The XCZ1 is a non-incendive and explosionproof enclosure for the iPad Mini 6. The tablet enclosure is certified for explosive atmospheres (ATEX) Zone 1 and International Electrotechnical Commission (IEC) explosive atmospheres. The case is made of aluminum and glass, and is sealed such that it is water and dust resistant. It features external power, volume, and mute buttons that allow access to the main controls of the device. Additional options for the enclosure include a magnet mounting system, locking system, touch pen, ballistic nylon case, Nylon X strap, and a hard-shell carrying case.
Xciel
Booth #3301

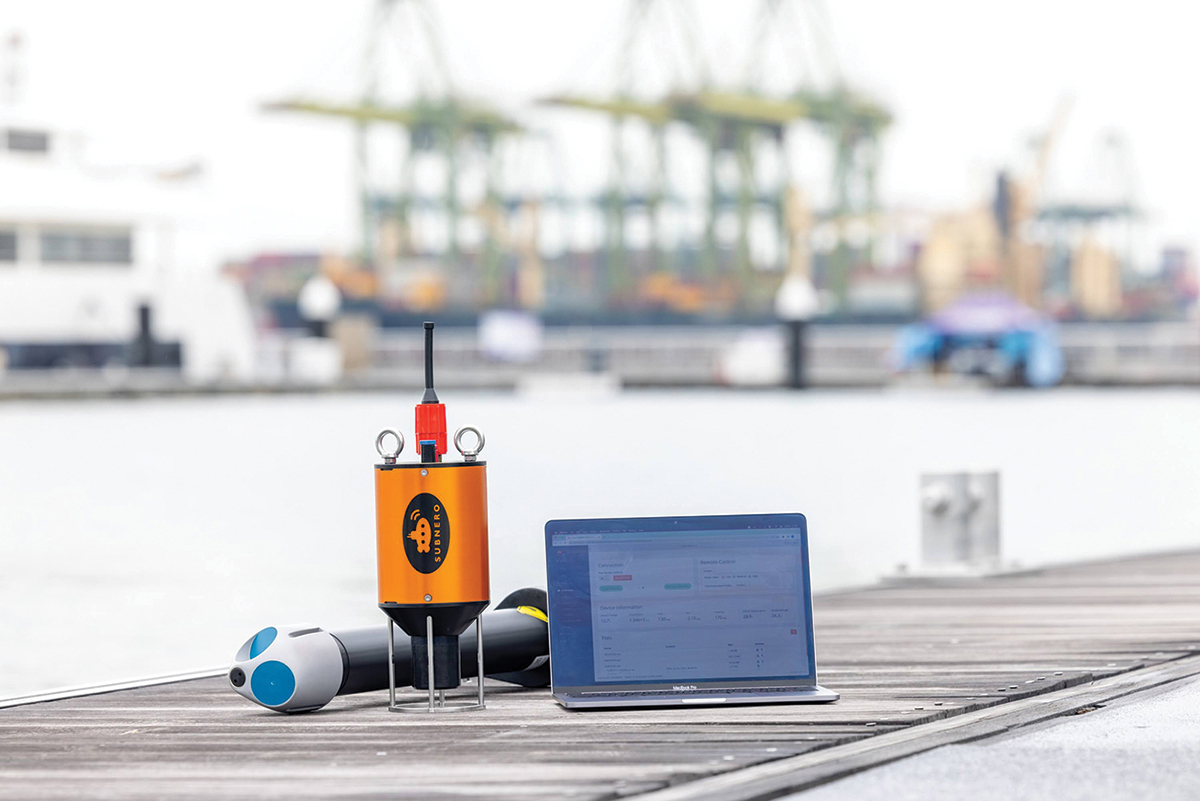

Acoustic Doppler Current Profiler Measures Ocean Conditions in Real Time
The Wireless Integrated Suite (SWIS)-acoustic doppler current profiler (ADCP) integrates a seabed-mounted ADCP with the company’s Wireless Network Communication (WNC) system to provide real-time measurements of ocean conditions. This system eliminates many of the difficulties associated with current ADCPs that often require personnel to retrieve the monitor from the bottom of the sea floor or the underside of a boat or buoy when acquiring data. The SWIS-ADCP system has a web-based interface compatible with the company’s various software programs. This program can also monitor multiple ADCPs, allowing for comprehensive analysis of large areas.
Subnero
Booth #814

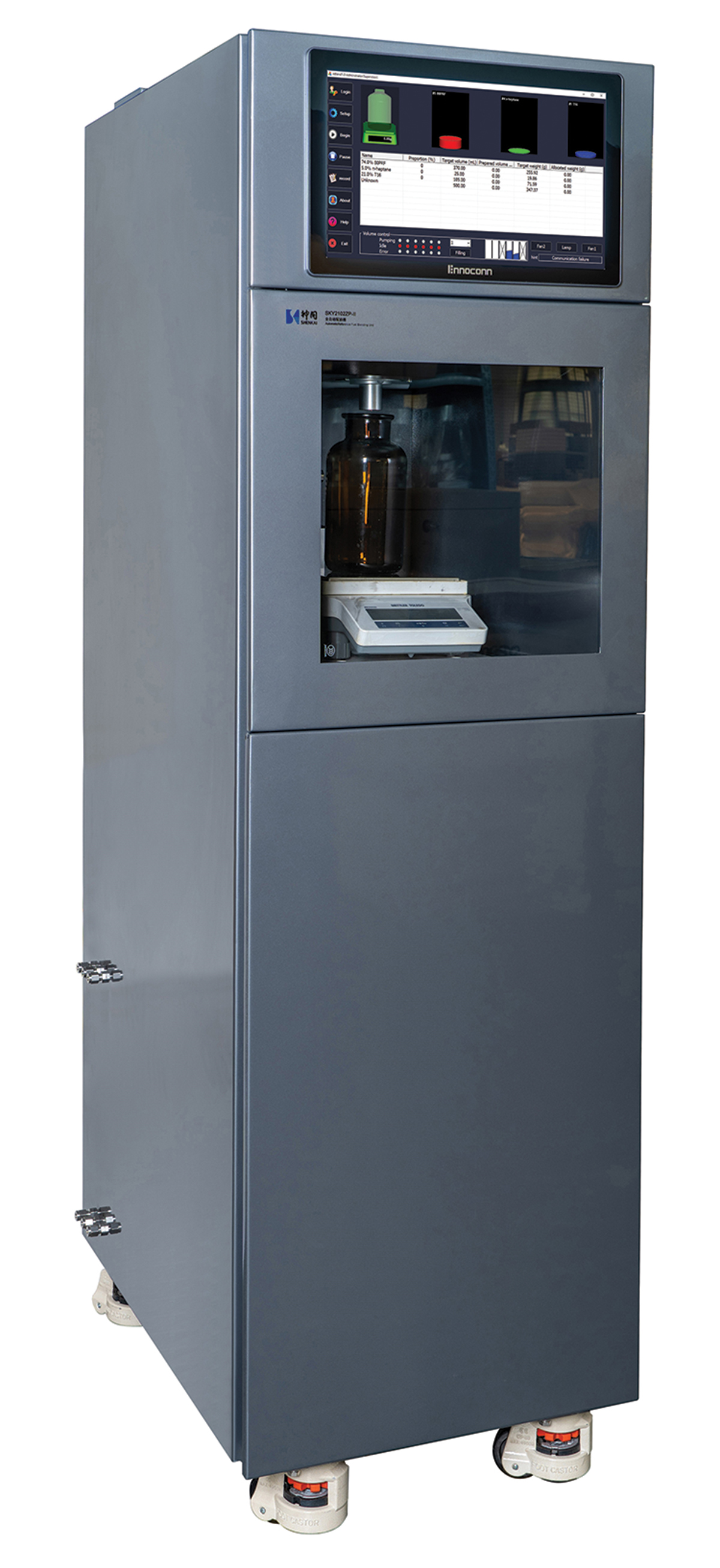

Automatic Reference Unit Blends Fuels to Specific Octane and Cetane Numbers
The SKY2102ZP-II automatic reference unit prepares reference and check fuels to match a desired octane number (ON) or cetane number (CN). After setting a reference point and operating volume, the unit creates a composite fuel within 0.01 of the set ON or CN. With integrated pumps facilitating automatic refilling directly from up to six 10-L tanks, this automatic reference unit prepares reference fuels accurately and efficiently. The unit has a touchscreen interface and a sample database that tracks past projects.
Shanghai Shenkai Petroleum & Chemical Equipment Co.
Booth #3269

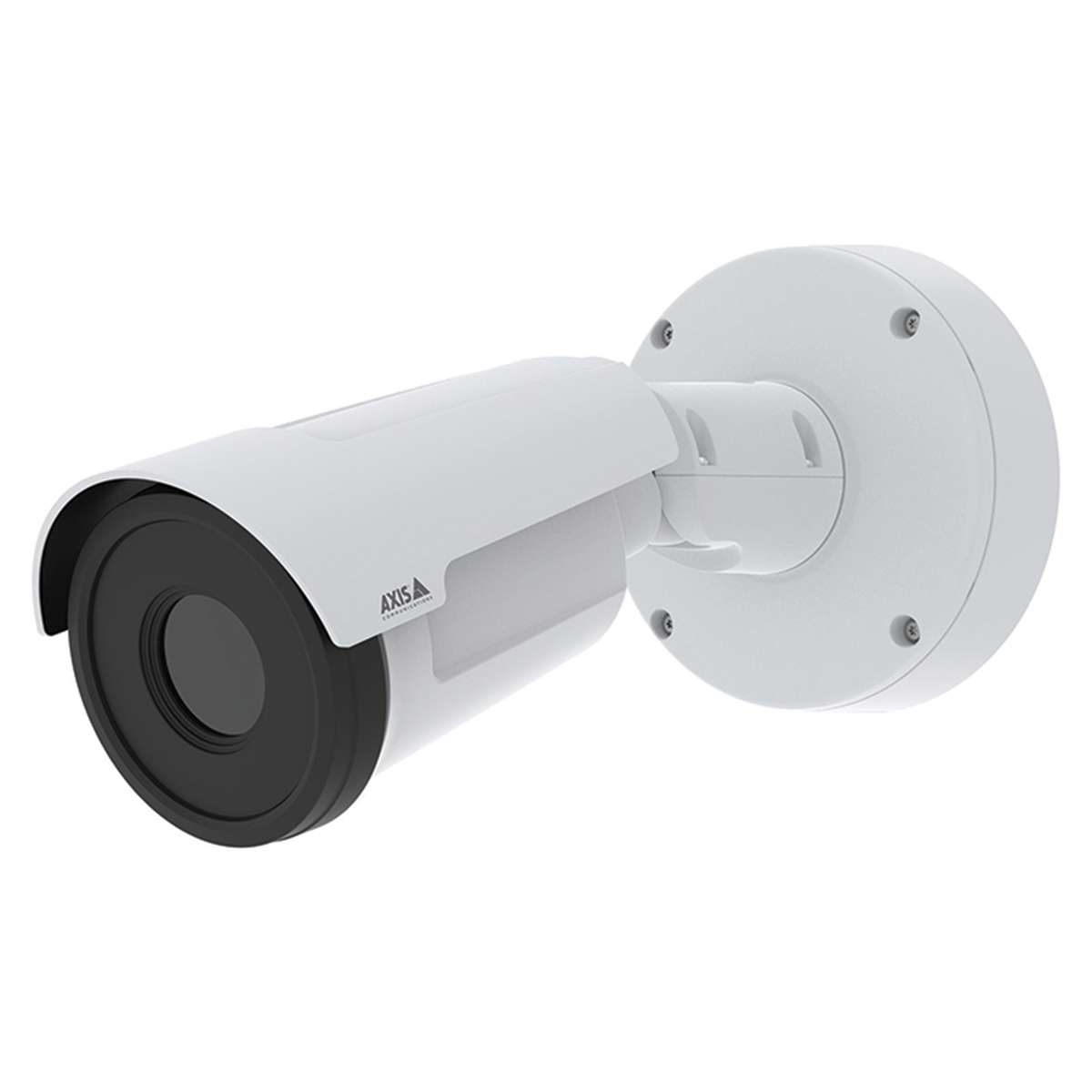

Thermal Camera Monitors Process Temperatures
The Q1961-TE thermal camera remotely monitors operating temperatures, allowing operators to take early action when hazards arise. The camera is set to a desired monitoring temperature and triggers an alarm if the temperature changes too quickly or deviates too drastically from the setpoint. The camera monitors ten configurable polygonal detection areas, providing more temperature data than a single process temperature reading. The operating range is between –40°F and 660°F.
Axis Communications
Booth #1408

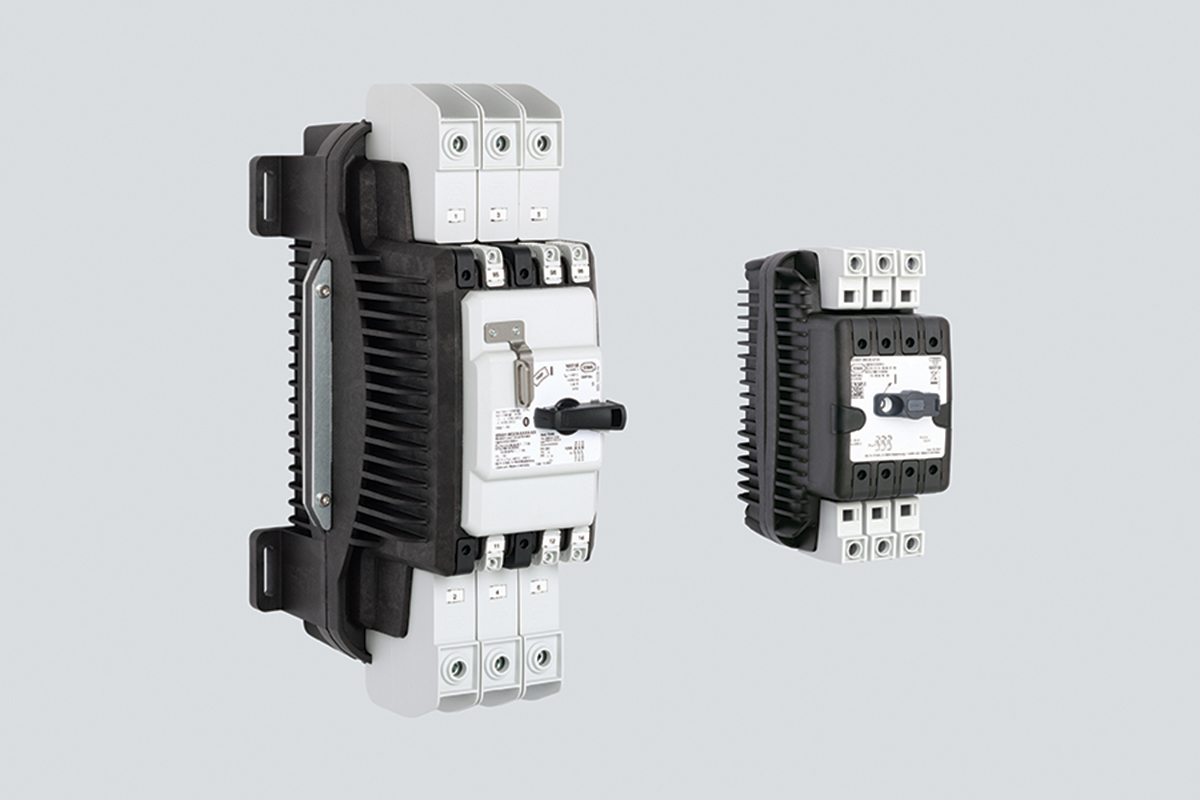

Explosion-Protected Power Distribution Board Components Reduce Risk
The 8530 and 8550 lines of explosion-protected switching and power distribution board components are a cost-effective option for use in areas where explosions are a concern. The components have a nonmetallic, thermoplastic design that is rated for Class I and II, Div. 2, and Zone 1 hazardous locations. The operating current is a maximum 63 A for the 8530 series and up to 125 A for the 8550 series. The 8530 line includes residual current circuit breakers and miniature circuit breakers, while the 8550 line includes contactors, overload relays, and molded case circuit breakers.
R. Stahl AG
Booth #1922

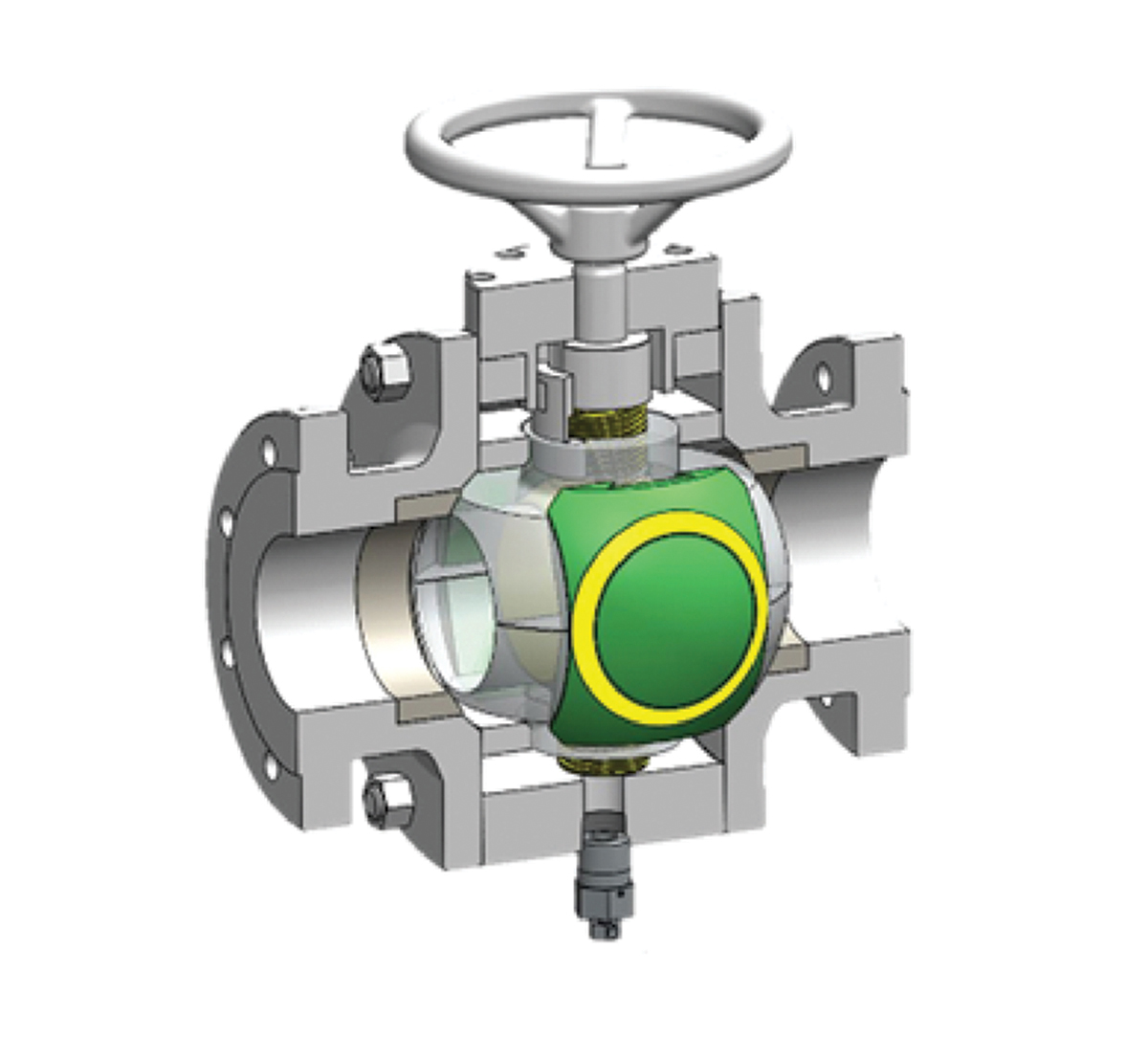

Double Mechanized Ball Valve Reduces Leaking
The Double Mechanized Ball Valve offers internal leakage prevention. The two-ball valve design ensures a positive seal in a bidirectional pressure envelope. The incorporated noncontact ball and seat rotation design extends the life of the valve past that of standard ball valves. The valve’s full port design and unrestricted flow minimize the pressure drop, reducing energy costs and improving process efficiency.
BridgeFlow Valve
Booth #315

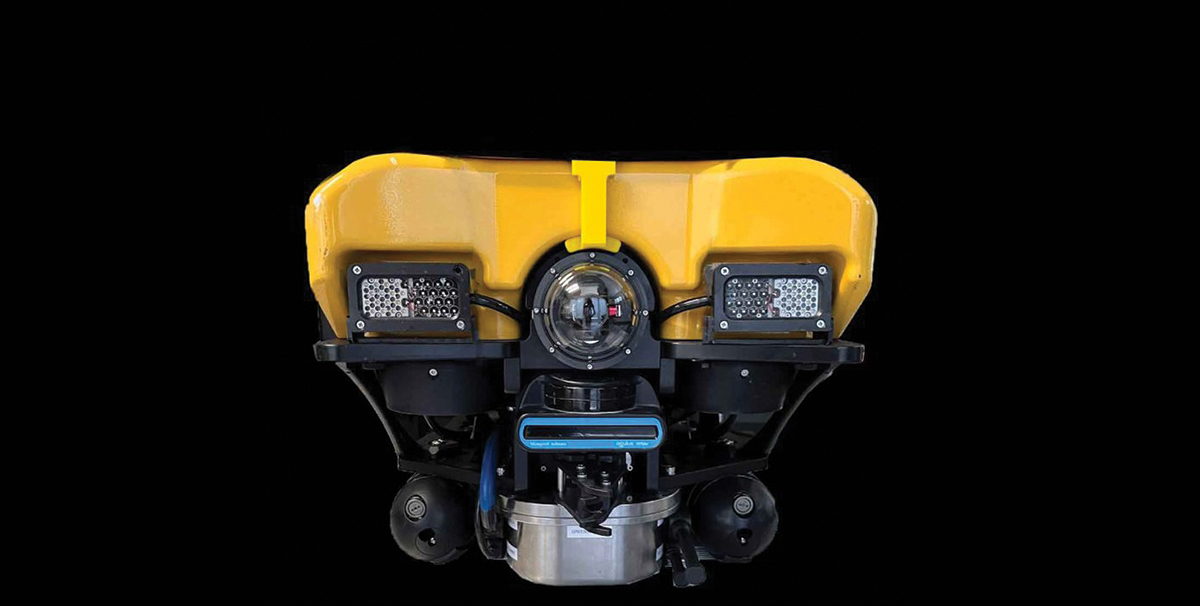

Advanced Software Operates Autonomous Underwater Robots
The OPENSEA Edge processing and perception system converts existing underwater remotely operated vehicles (ROV) into autonomous underwater vehicles. First applied by the U.S. military for explosive ordinance disposal, this technology is suitable for offshore energy applications and can replace human divers in dangerous operations. The modular software uses AI, vehicle perception, and an over-the-horizon communication and control system. The communication and control systems are available as a standalone product called Safe C2.
Greensea Systems, Inc.
Booth #3604

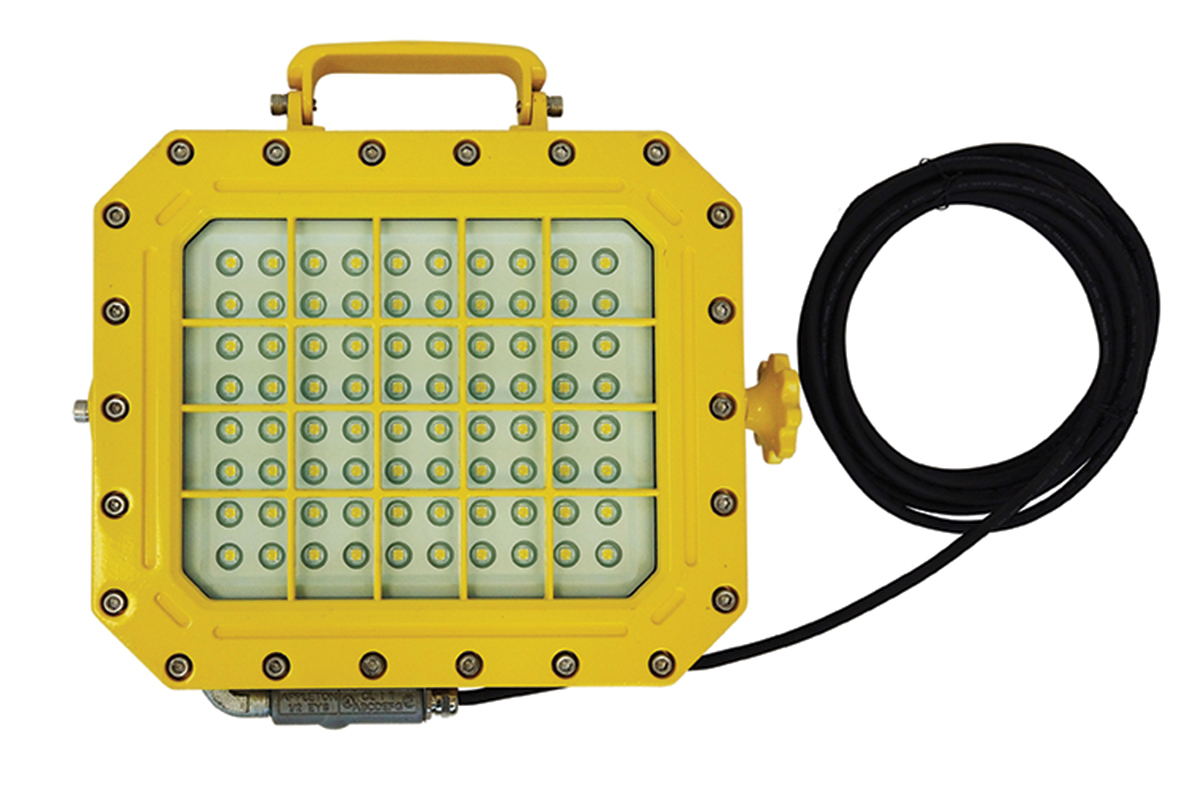

Portable Light Is Explosionproof
The XP980 is a slim LED panel suitable for most hazardous locations. It is explosionproof and approved by Underwriters Laboratories (UL) for Class I and Class II groups. Its design consists of cast aluminum housing along with a tempered glass lens. The LED light emits 24,000 lumens at 160 W and has a life expectancy rated for over 50,000 hours. The portable light weighs 35 lb and can be mounted to tripods, magnet mounts, and scaffold mounts.
Lind Equipment
Booth #456
EXPLORE The 2023 Offshore Technology Conference
The 2023 Offshore Technology Conference (OTC) is the leading event for advancing scientific and technical knowledge in the offshore energy sector. The conference will take place May 1–4, 2023, at the NRG Park in Houston, TX.
This year’s technical program covers a wide array of areas and topics regarding groundbreaking ideas in the industry, from renewables and carbon capture to drilling and reservoir engineering, among others. AIChE’s program subcommittee has contributed exciting content to this year’s event by coordinating 15 sessions, including a session in the keynote speaker series, two panel discussions, and 12 technical sessions spread across all four days of the conference. Session topics highlight important areas and opportunities where chemical engineers can contribute to the advancement of offshore technology and oil production, with special attention to sustainability and renewable energy.
AIChE’s programming kicks off on Monday with a total of seven sessions. Topics covered include carbon capture, processing design, digitalization of well operations, offshore geotechnics, and enhanced oil recovery (EOR). In the afternoon, a keynote session by Timothy Duncan, President and CEO of Talos Energy, will discuss why carbon capture storage platforms complement upstream oil and gas businesses.
The second and third days feature one AIChE session each. The Tuesday afternoon technical session covers the offshore energy transition and geothermal energy. On Wednesday, the afternoon program includes a panel discussion on offshore oil and gas, wind energy, and marine energy, discussing the strengths and benefits of public-private partnerships.
The conference concludes on May 4 with another full day of programming, including six AIChE subcommittee contributed sessions. Topics covered during these sessions include flow assurance, reservoir engineering, production improvement, safety, emissions reductions, decarbonization, and electrification. Among the sessions, a panel discussion in the afternoon will cover how to balance the energy transition and production, going over various strategies and technologies.
In addition to these engaging discussions from AIChE’s program subcommittee, the 2023 OTC will feature technical sessions hosted by all 13 of OTC’s sponsoring organizations and societies, an Energy4me Teacher STEM workshop, poster sessions, and networking events. Industry leaders will be honored at the Spotlight on New Technology Awards ceremony, as well as the OTC Distinguished Achievement Awards reception.
AIChE members are eligible for reduced rates on OTC registration and proceedings. Register online before April 30 for standard registration rates. Be sure to indicate your AIChE affiliation on your registration form.
We would love to meet you during your visit to OTC 2023. Please stop by AIChE Booth #S11 located in the Sponsors’ Row outside of the Exhibit Hall. To view the full program and events, check out the OTC website at 2023.otcnet.org.
