Operations and Maintenance

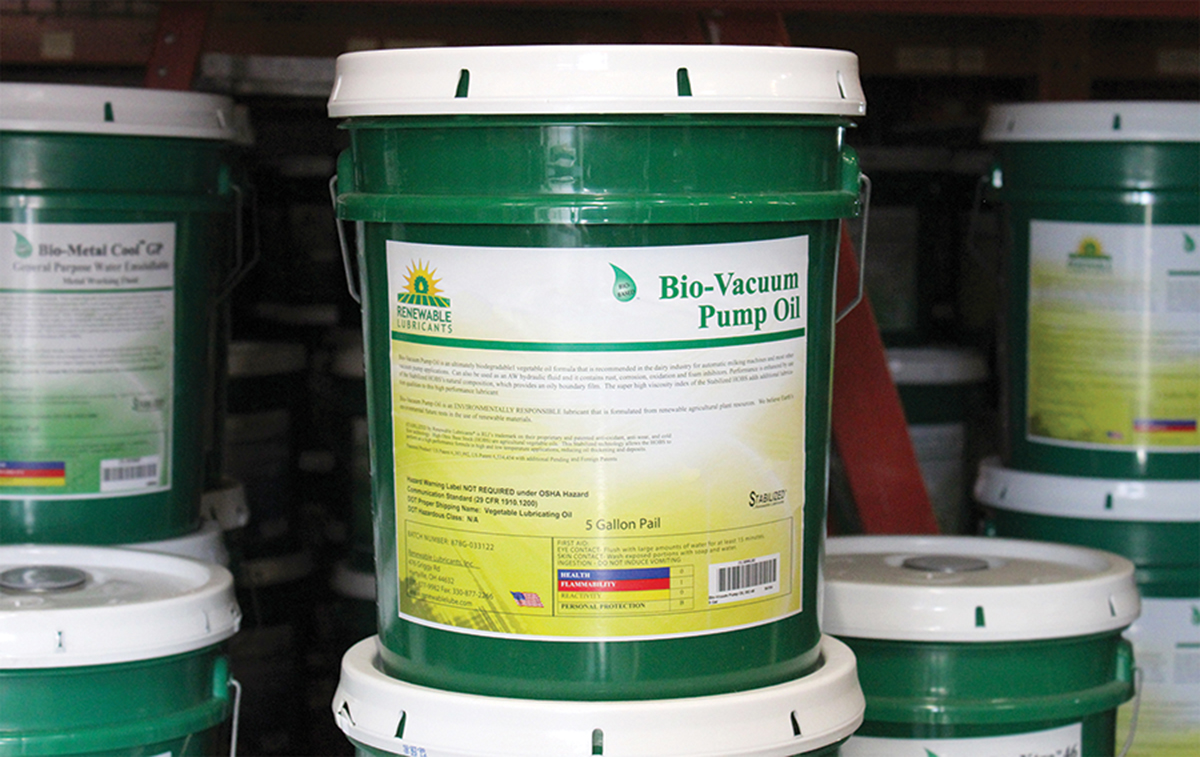

Vacuum Pump Oil Improves Pump Performance
The Bio-Vacuum pump oil is a biobased hydraulic fluid formulated for use in vacuum pumps. It is a biodegradable, biosynthetic lubricant derived from renewable agricultural biobased resources that are nontoxic, zinc-free, and heavy-metal-free. It is suitable for pumps that require anti-wear, anti-rust, anti-oxidation, anti-foam, and demulsibility properties. The pump oil also has a low volatility and relatively safe flash point.
Renewable Lubricants
Camera Allows for High-Speed Imaging
The Pinnacle LZ-16KG5 is a 100 Gigabit Ethernet (GigE) line scan camera with a top single line rate of 400 KHz and trilinear rate of 133 KHz. The camera is available in both monochrome and color versions and can produce images with a 5 × 5 µm pixel cell size and an 81.92 mm sensor scanning width. It complies with GigE Vision and GenICam standards and is suitable for inspection purposes in the pharmaceutical and food industries.
Emergent Vision Technologies
Environmental, Health, and Safety
Monitoring System Analyzes Workplace Safety Data
The AMESPHERE seeks to improve workplace safety by analyzing data measurements taken from the activity of potentially dangerous operating machinery to calculate ways of making a process safer. The system includes the key, tablet, and tag. The key is a sensor that monitors a piece of machinery and relays safety data to the tablet — the interface that connects all of the components. The tag is worn by workers and sends safety data to the tablet. This data is processed and used to generate an efficiency and safety indicator (ESI) — a single coefficient representing a workplace’s efficiency and safety — along with a variety of numerical insights into how to improve workplace safety and efficiency.
Advanced Microwave Engineering
Flame Detector Improves Workplace Safety
The Spyglass SG50-F series of flame detectors provides quick and reliable flame detection to protect workplaces and assets. With onboard HD video capabilities (color or near-infrared) and an updated optics system, these flame detectors effectively monitor all types of fuel fires. The built-in video capabilities allow for remote emergency confirmation, and the advanced algorithm gives responders usable advice on the fire’s progression and suppression methods. Different monitoring options are available so that each detector can be customized to match the required applications.
Teledyne Technologies, Inc.
Heat Transfer
Water Cooler Provides Efficient Heat Transfer in Air Rectifier Systems
The CoolKraft water cooling system is a heat transfer unit that offers constant, energy-efficient, and effective cooling in air rectifiers. The system uses a water-to-water heat exchanger to maintain effective heat transfer in dusty or contaminated air environments. This durable design and plug-and-play installation reduces operation and maintenance costs. The cooler is suitable for installations between 1 kW and 30 kW and an ambient temperature range of 5°C and 50°C.
KraftPowercon
Laboratory Equipment

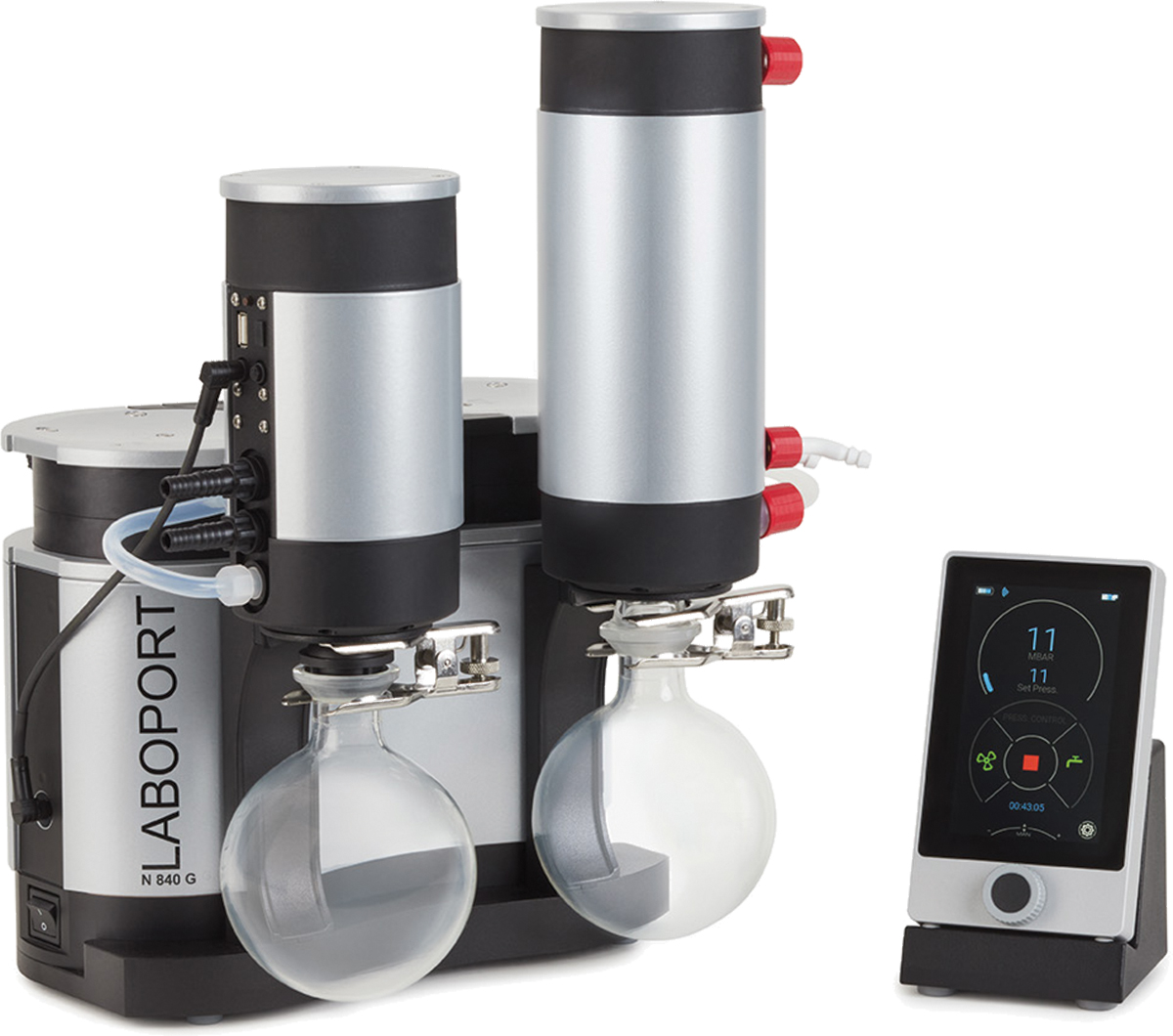

Compact Vacuum Pumps Conserve Lab Space
The LABOPORT vacuum pumps provide adjustable flowrates and operating pressures for applications of different sizes while maintaining a small footprint in the lab. The integrated separator and condenser make these pumps compatible with high vapor and condensate concentrations. Additionally, the polytetrafluoroethylene (PTFE)-coated pump head and diaphragm make the pumps suitable for use with corrosive gases and vapors. The pumps are available with flowrates between 7 L/min and 34 L/min to match a system’s flow requirements. Their integrated rotational speed control and vacuum controller further add to the vacuum’s customizability.
KNF Group

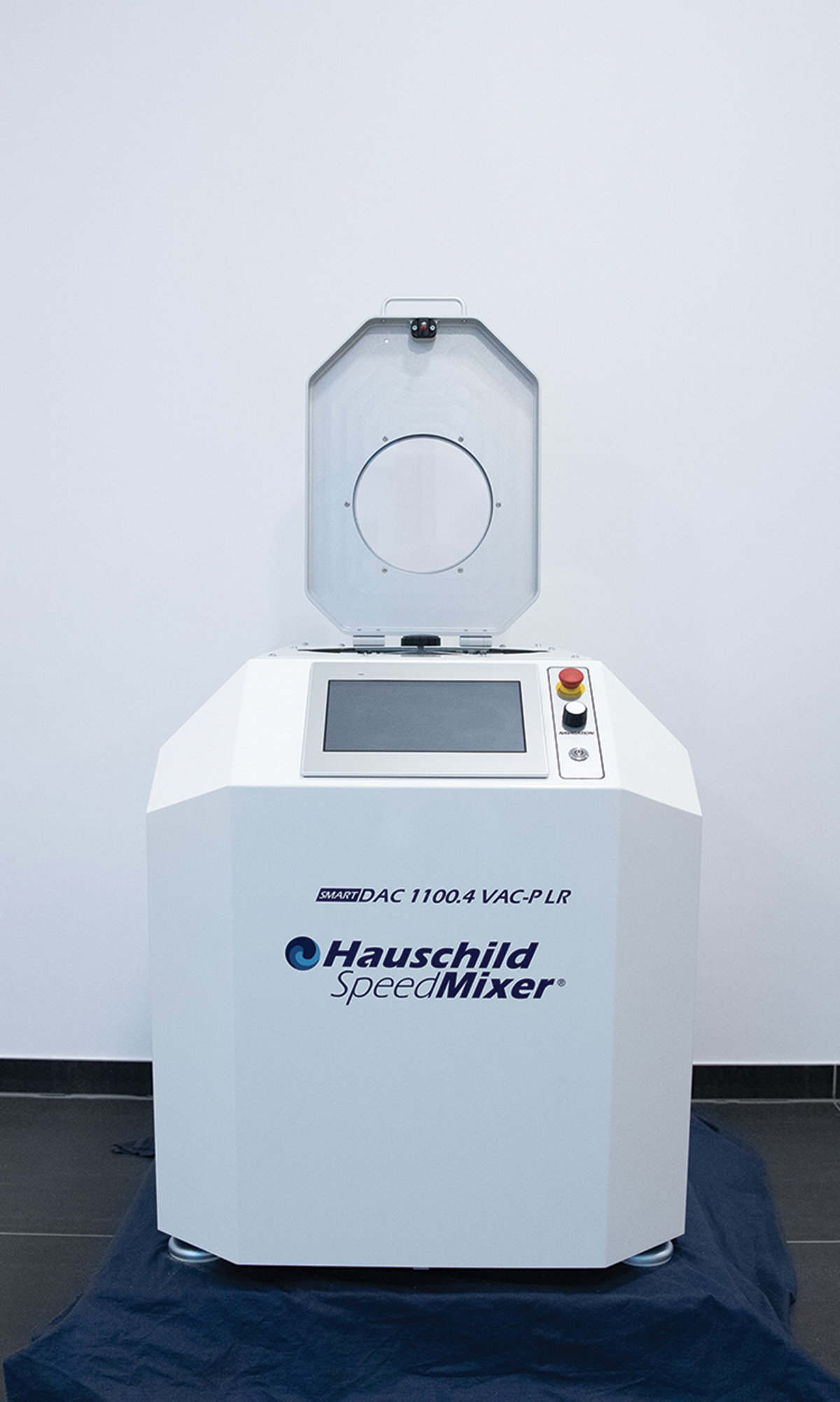

Lab Mixer Offers Precise Control of Mixing Conditions
The SpeedMixer SMART DAC 1100, 1500, and 2000 LR series of lab mixers allows operators to maintain a desired temperature, blending speed, and mixing time to blend difficult-to-homogenize liquids. The mixers use a dual asymmetric centrifugal mixer, which is suitable for laboratory fluids that are highly viscous, have a low specific weight, or require particular mixing conditions. They can mix batches up to 2 kg, and select models have a uniquely long radius (LR) that accommodates 1-gal mixing vessels.
Hauschild Engineering
Multivariable Water Analyzer Automates Wet Lab Testing
The Gallery Aqua Master performs multivariable quality and nutrient analyses of process, agricultural, and environmental water. The analyzer automates much of the work in traditional chemistry wet labs with a process that meets U.S. Environmental Protection Agency (EPA) and international regulations. It is highly customizable for different testing parameters, and the easy-to-use interface reduces personnel training time. By automating testing procedures, this analyzer requires less sample and reagent volumes than manual testing and reduces human exposure to hazardous chemicals. Each unit has preprogrammed tests that can be modified to fit different applications, running up to twenty tests per sample.
Thermo Fisher Scientific
Engineering Services

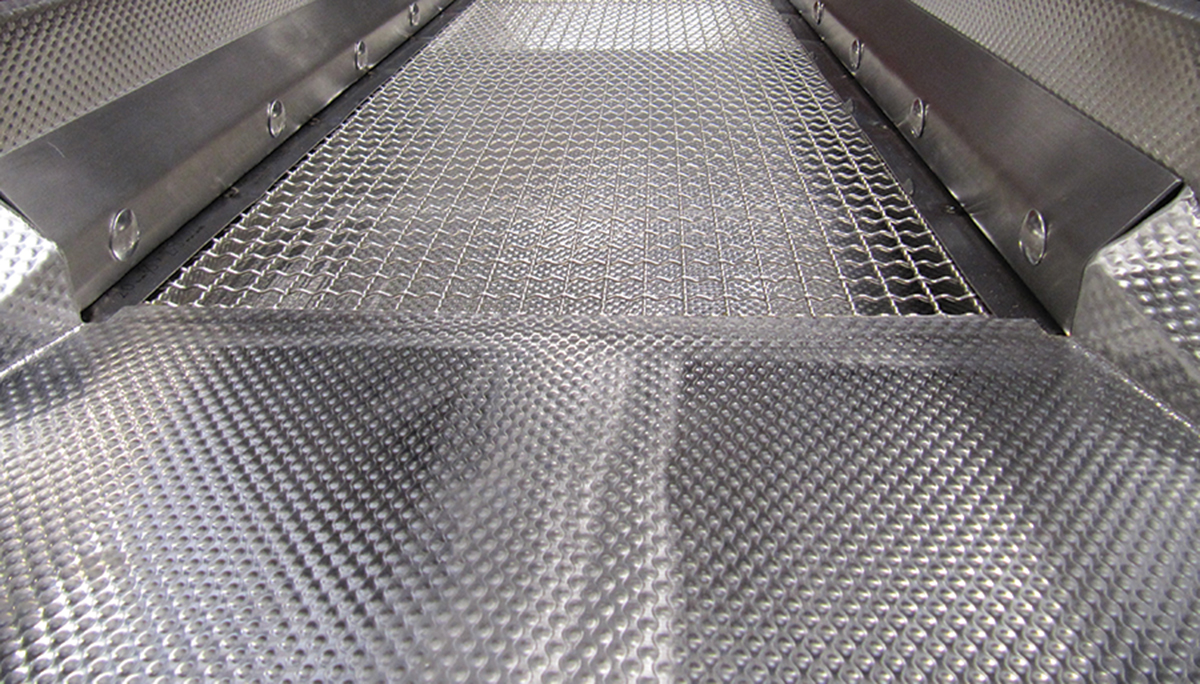

Materials Handling Experts Offer Consultation Services
Gough Engineering offers complimentary consultation services for companies experiencing materials handling issues with sieving, separation, and screening. The Gough experts are well-versed in the regulatory and safety requirements for sieving, separations, and screening systems, which allows them to give usable insight into many disparate applications. In addition to consultations with industry experts, the company offers access to their in-house testing facility to provide further insight into an application’s needs. After consultation, the company can provide custom high-quality sieves, screens, and separators to fix process problems.
Gough Engineering
Materials and Chemicals
Epoxy Offers Long Working Life
The EP62-1AO is a two-part epoxy adhesive and sealant. For a 100-g mass, it has a long working life of 12–14 hours at ambient temperature. It has a tensile modulus of 600,000–650,000 psi and a tensile strength of 5,000–6,000 psi with a service temperature range of –60°F to 450°F. The epoxy has several curing schedule options and is available in 30-cm3, 1/2-pint, pint, and quart kits in two different colors.
Master Bond
Instrumentation
Sensor Measures Bin Fill Height
The ZMX series 3D time-of-flight sensor monitors the volume of material filling a bin. The single sensor is mounted directly centered and above the bin and features a 60-deg. by 45-deg. field of view with a range of 200–2,500 mm. The sensor uses 3D measuring to provide volume and peak height measurements rather than laser or ultrasonic measuring. Sensing conditions, such as the bottom of the container, the size of the sensing region, and thresholds for peak height and volume, can be configured using the company’s 3D Configuration Software.
Banner Engineering
Flow Measurement Device Operates via Power Over Ethernet
The Micro Motion 1600 Coriolis transmitter is a flow measurement device suitable for the food and beverage, life sciences, and chemical industries. The transmitter operates via traditional Ethernet or optional Power over Ethernet (PoE) to reduce the need for additional cables. Its design is compact and lightweight to save space, and it is available in either aluminum or hygienic stainless steel. The transmitter features a multilanguage four-line local operator interface (LOI), a suite of software solutions, a USB-C service port, and an additional licensable channel that can be configured for analog, frequency, or discrete output.
Emerson
Valve-Sensing Unit Allows Fast Setup
ThinkTopV20 is a pure valve indication unit for on-off valve monitoring. It features a 360-deg. LED visual status indicator that is visible from all directions. The compact and robust design consists of a maintenance-free housing that is hermetically sealed, allowing for tight installation. The communication protocol can be chosen as digital, Actuator-Sensor Interface, or IO-Link. The valve-sensing unit is suitable for use on hygienic valves across the biotechnology and pharmaceutical industries.
Alfa Laval
Pyrometer Provides Real-Time Process Monitoring
The CSvision R1M ratio pyrometer measures the temperature of metals, melts, or ceramics from safe and reliable distances. It offers an optical resolution of up to 150:1 and a measuring range of 1,112°F to 5,432°F with a spectral range of 0.8 µm to 1.1 µm. It can operate in harsh industrial environments up to 149°F without cooling. The pyrometer is compatible with the IRmobile and Compact-Plus smartphone apps that simplify setup, video alignment, and real-time monitoring.
Optris
Conveyor Belt Pulleys Monitor Conveying Systems
The TruPulley line of conveyor belt pulleys provides operators with useful conveyor belt data. The line includes the TruTension, TruPace, and TruTrack pulleys. The TruTension pulley uses integrated sensors to monitor a conveyor belt’s tension, while the TruPace pulley facilitates energy-efficient alteration of belt speed. The TruTrack uses a roller design to monitor a belt’s tracking, which reduces side loads and the associated damage. These pulleys give operators the necessary information to optimize a belt’s performance and extend its lifetime by reducing wear and strain.
Belt Technologies, Inc.
Differential Pressure Gauges Provide Accurate Measurements
These differential pressure gauges accurately measure system pressure from static to 9,000 psi. Diaphragm-type and piston-type differential pressure gauges are available. Inline, bottom, or back connections are available, as well as direct, front flange, 2-in. pipe, and surface mounting options. A variety of customizable characteristics, including multiple dial sizes of 2.5-in., 4-in., 4.5-in., and 6-in., make these pressure gauges suitable for different systems.
Marsh Instruments
Electronic Differential Pressure Transmitter Measures Multiple Process Parameters
The OPTIBAR 5060 eDP electronic differential pressure transmitter is a multi-purpose sensor. It measures level, differential pressure, and density in closed vessels and level and density in open vessels. To reduce installation time and cost, the transmitter has small process connections and uses electronic signal cables instead of capillaries. This design also makes the transmitter suitable for a wide variety of vessel shapes and sizes. The wireless Bluetooth connection allows the transmitter to relay process conditions to smartphones or tablets. The transmitter can monitor pressures up to 1,450 psi and has an operating temperature range between –40°C and 150°C.
KROHNE Messtechnik GmbH

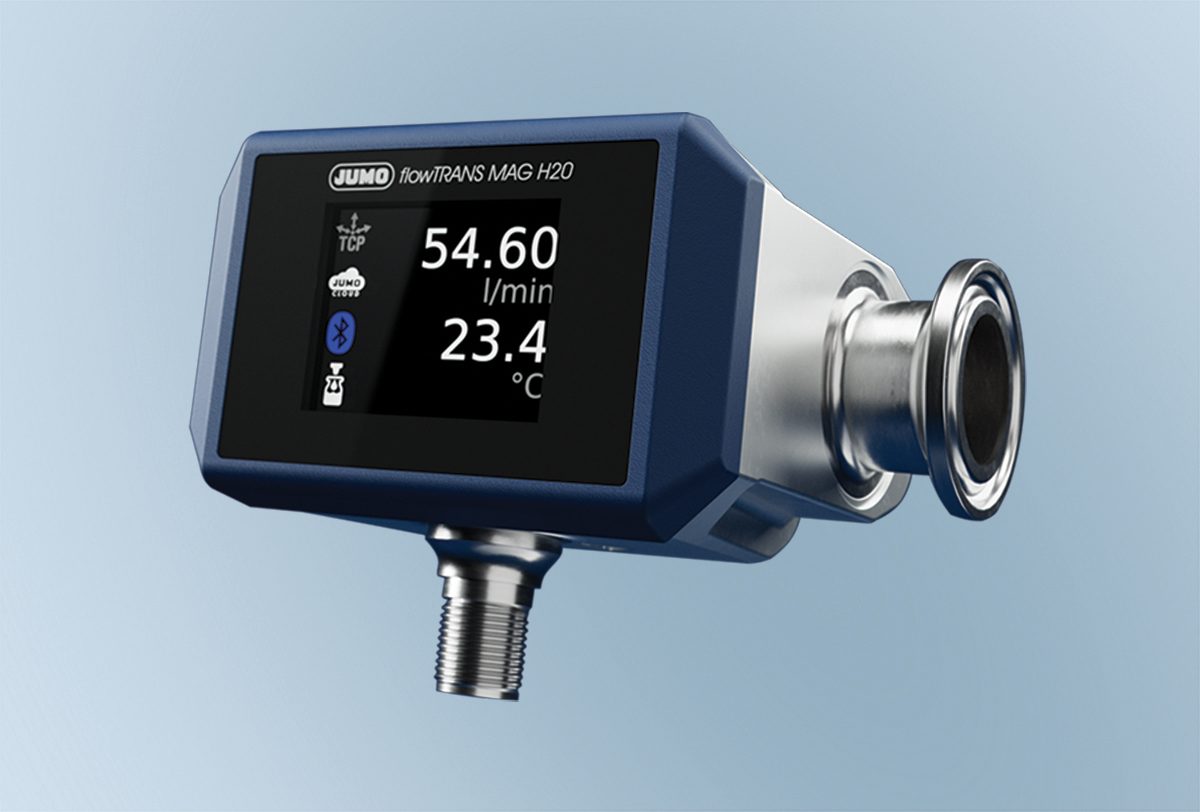

Electromagnetic Flowmeter Measures Flow of Conductive Liquids
The JUMO flowTRANS MAG H20 flowmeter precisely measures the temperature and flowrate of conductive fluids. With an accuracy of ±0.5% of the measured flow and a temperature range of up to 90°C, this flowmeter is suitable for a variety of applications. The metal case and tri-clamp process connection are suitable for food processing and other sanitary systems. The flowmeter monitors conductive liquids using the magnetic-inductive measuring principle, which produces an accurate reading. The monitor includes a screen interface that connects to the flowmeter via Bluetooth.
JUMO Process Control, Inc.
Resistance Temperature Detectors Measure Wide Temperature Range
The PRTXI and the PRTXS Series of resistance temperature detectors (RTD) provide a more comprehensive temperature range than competing transmitters, with a process temperature range of –58°F to 392°F. The sensor models are between 4 mA and 20 mA and include IO-Link outputs. The detectors are IO-Link-compliant, enabling simple installation and replacement for different systems. The durable stainless-steel construction makes them well-suited for sanitary and food processing applications. These detectors can also transmit information concerning device identification, parameters, diagnostic data, and process data.
Omega Engineering, Inc.
Fluids and Solids Handling
Funnel Simplifies Filling of Intermediate Bulk Containers
The FALCON Funnel Model XL helps to fill intermediate bulk container (IBC) totes with liquid. It is constructed of chemically resistant polyethylene and has a domed base design, allowing the liquid to easily funnel into the 6-in. drain opening. The design fits standard IBC totes and includes a storage compartment for the IBC locking lid when the funnel is in use. The funnel has a 4-gal capacity and features an integral 2-in. connection for attaching an optional level indicator.
DENIOS

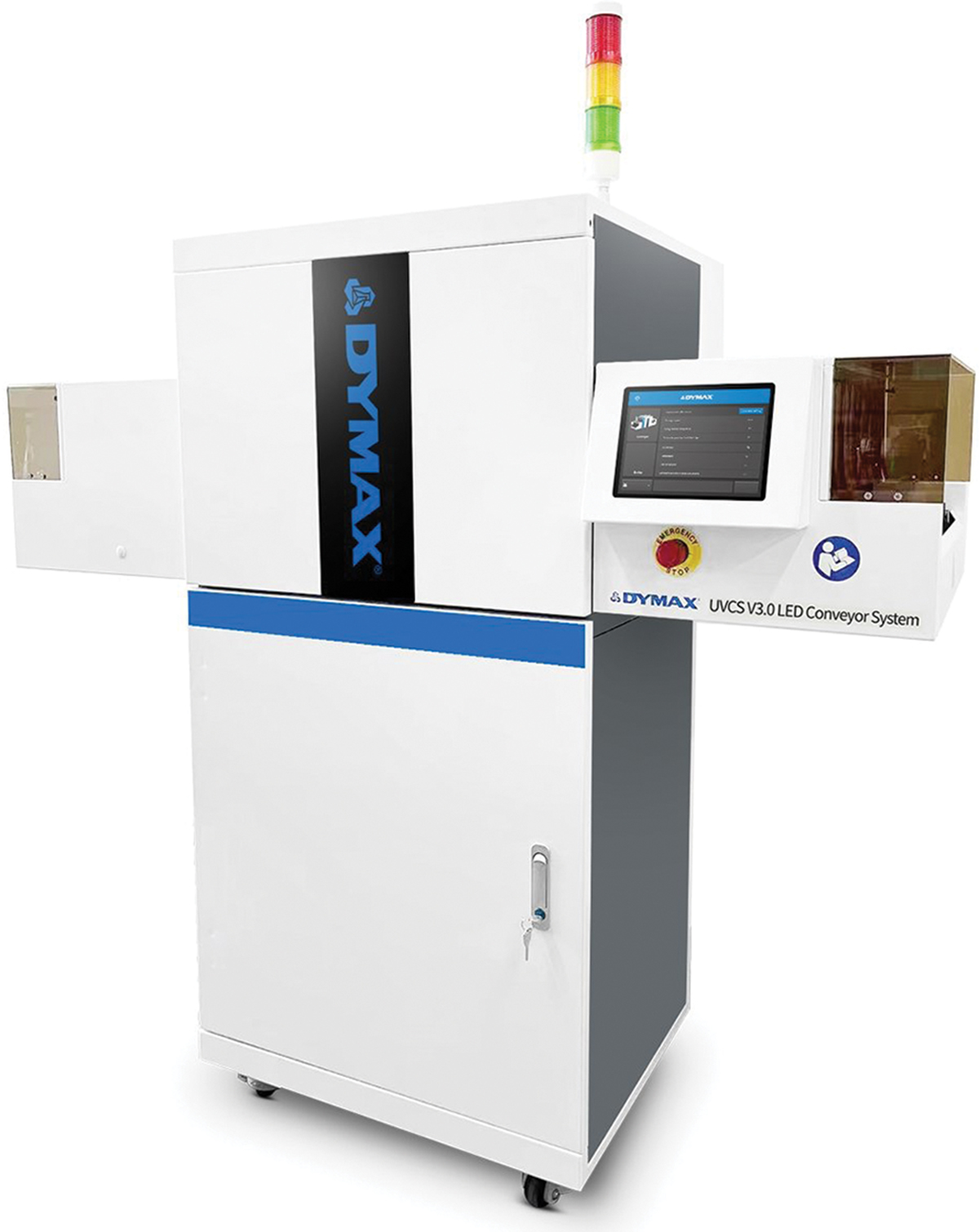

LED Conveyor Speeds Up Curing Processes
The UVCS V3.0 LED curing conveyor unit features an 8-in. touchscreen display that allows users to manage the speed, mode of operation, and LED emitters. The static curing oven mode allows for high-speed conveying to speed up the curing process. Users can program the 12-in. belt’s speed and intensity. It also includes a high-power exhaust system that minimizes the chamber temperature. In addition, the curing system is compatible with programmable logic controllers (PLCs).
Dymax Corp.
Conveyor System Fits in Tight Spaces
With a load capacity of 400 lb, the DCMove belted conveyor is suitable for most material handling and industrial applications. The conveyor system contains all bearings and components inside the frame, creating flush side frames that allow the conveyor to fit into tight spaces. The painted steel frame is more durable than regular aluminum frames and experiences significantly less surface wear. Available in both flat and cleated belting options, the length of the conveyor can be selected from 38 in. to 40 ft. The conveyor can operate at speeds up to 600 ft/min.
Dorner
Vacuum Pumps Offer Constant Operator Control
The CMS HD VX vacuum pumps provide maximum operator control and efficient troubleshooting through an advanced communication network. The intuitive human-machine interface (HMI) supplies personnel with constant diagnostic information and process data. Operators can adjust settings and monitor diagnostics via their mobile devices using the Vacuum Manager application. The pumps are also compatible with higher-level protocols, including Ethernet/IP, PROFINET, and Ether-CAT. Depending on the model, the maximum flowrate is between 24.72 and 56.50 standard cubic feet per minute (SCFM).
COVAL Vacuum Technology Inc.
