Instrumentation

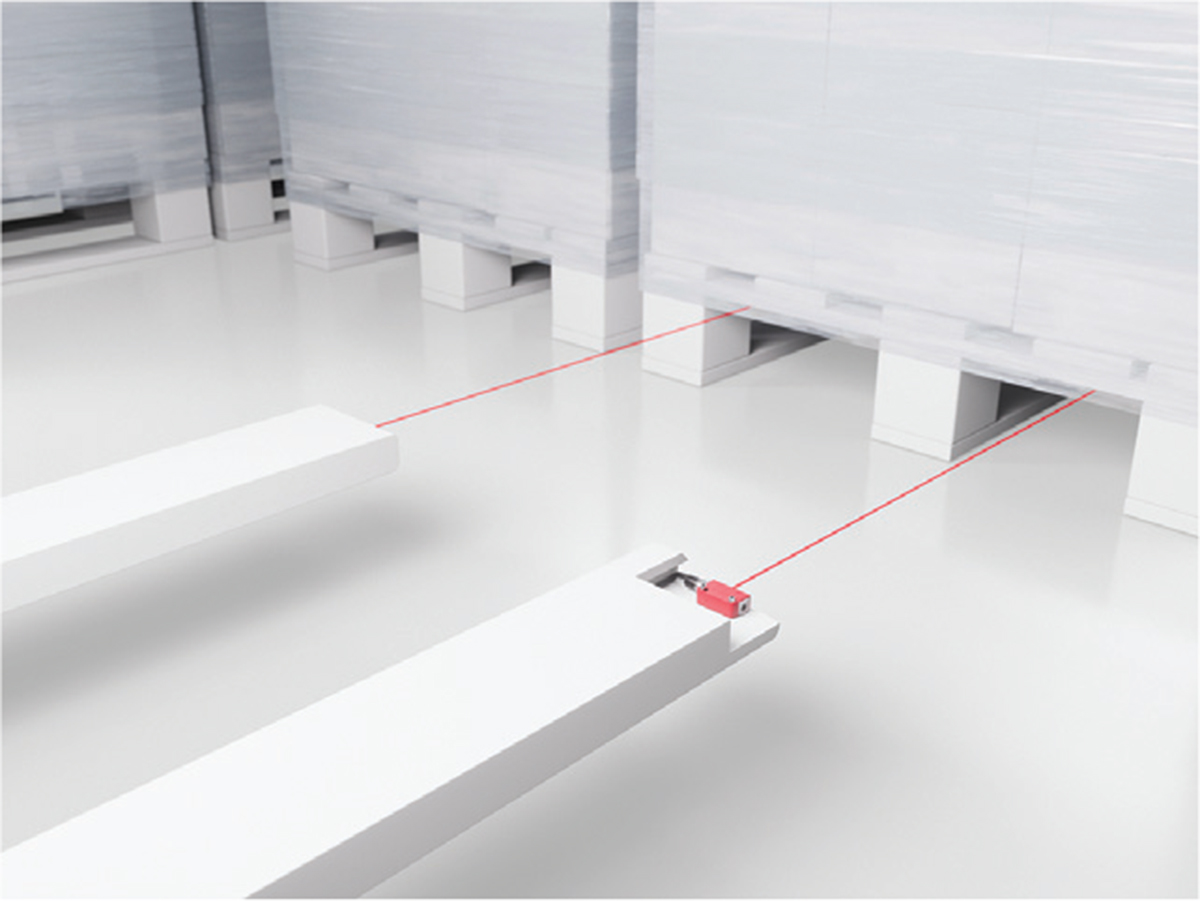

Sensor Detects Presence and Measures Distance
The ODT3CL1-2M compact diffuse sensor detects the presence of objects and transmits measurement values for use in automated guided vehicles, monitoring the position of goods, controlling robot grippers, or in quality control applications. The sensor has an operating range of up to 2 m and includes background suppression technology for increased accuracy. The unit is lightweight and small, measuring 11.4 mm × 34.2 mm × 18.3 mm, and it includes an integrated light that allows for faster alignment during commissioning.
Leuze

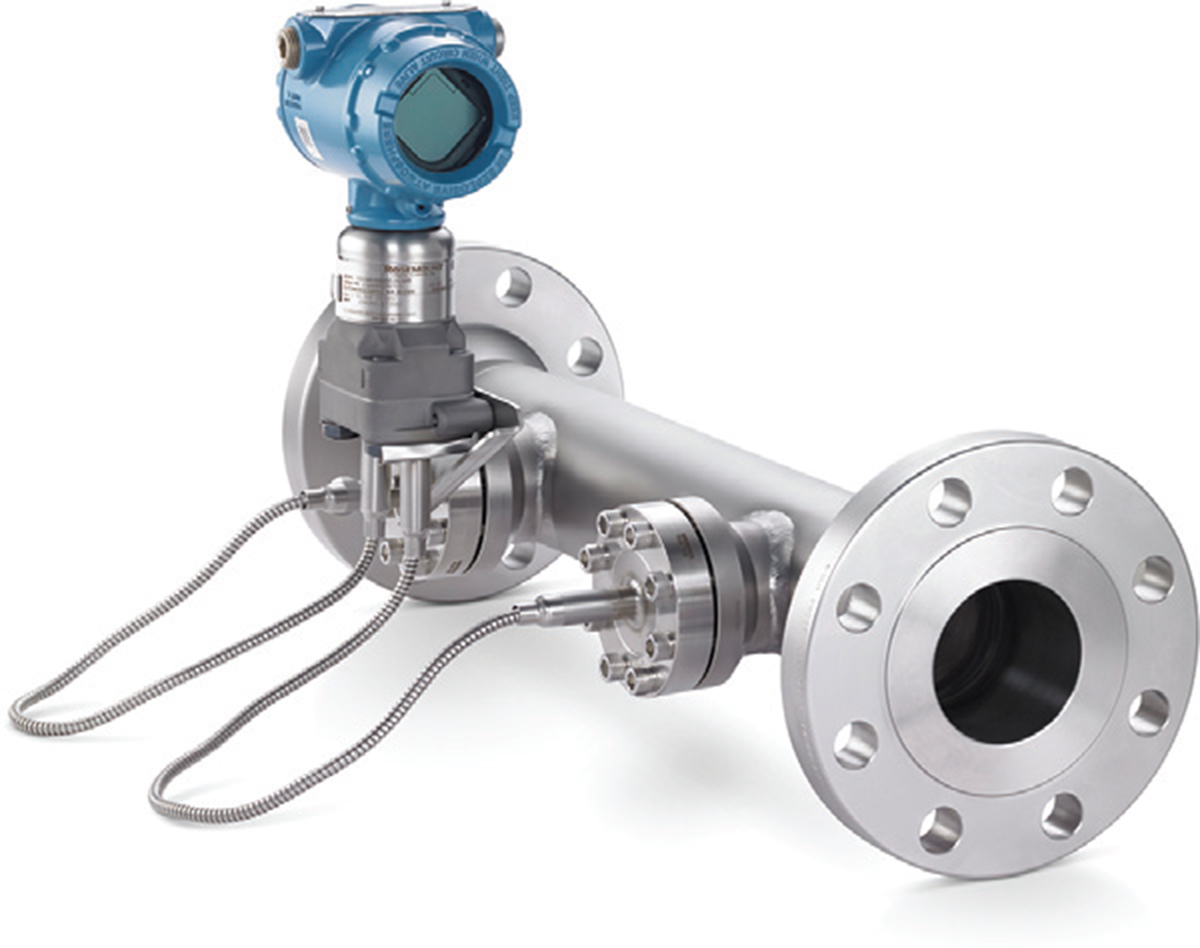

Flowmeter Accommodates Demanding Applications
The Rosemount 9195 Wedge Flowmeter features a wedge primary sensor element that makes the sensor suitable for measuring process fluids with a wide range of demanding characteristics in various heavy industry applications, including metals and mining, oil and gas, renewable fuels, chemicals, and pulp and paper. The sensor’s operating temperature range is –40°F to 1,000°F, and the meter is available with the Rosemount 3051S Thermal Range Expander for measuring hot or viscous liquids. Data can be transmitted via 4–20 mA HART, WirelessHART, FOUNDATION Fieldbus, and other networking technologies.
Emerson Electronic Co.

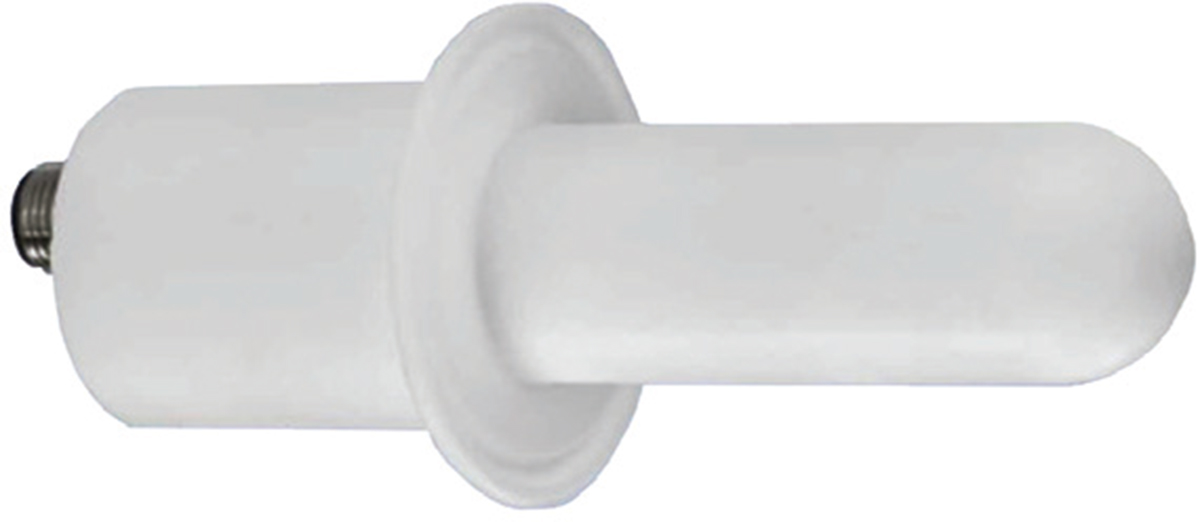

Capacitive Sensor Integrates IO-Link Capabilities
The KA1590 capacitive sensors now include IO-link to better communicate process data. The sensor is triggered by contact with process material, and it is suitable for measuring the level of liquids, bulk solids, and pastes. The polytetrafluoroethylene (PTFE) body is suitable for food and pharmaceutical applications, as well as clean-in-place procedures. The on and off delay timing functions are programmable to meet an application’s requirements. The sensor can detect media with low dielectric values, and it has a maximum temperature of 100°C.
Rechner Electronics Industries, Inc.

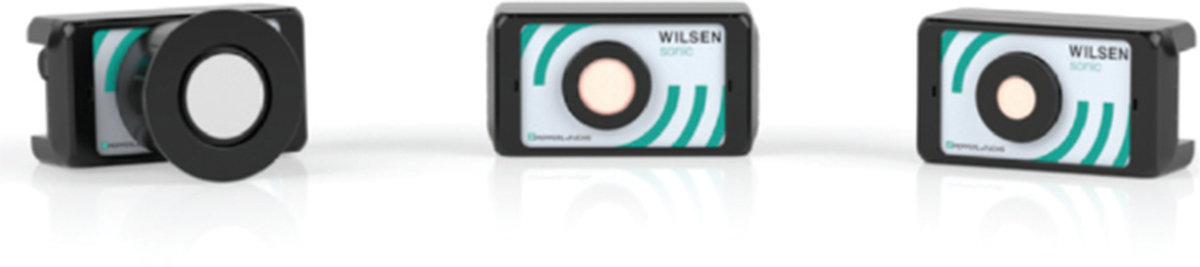

Wireless Ultrasonic Sensors Cover Large Distances
Long-range wide-area networks (LoRaWANs) are wireless communication protocols used to connect internet of things (IoT) devices across large distances. WILSEN V2.3 sensors are the latest line of the manufacturer’s LoRaWAN-based ultrasonic sensors, which can be integrated into LoRaWAN systems to wirelessly communicate process data. These sensors can measure level and distance with a distance value resolution of 1 mm. The sensors are available with measuring distances up to 7 m.
Pepperl+Fuchs SE
Level Sensor Performs Volume Calculations
The TL400-I level transmitter performs nonintrusive level and volume measurements for liquids and bulk solids. The sensor uses an integrated onboard processor with advanced filtering capabilities to accurately measure stirred liquids. Additionally, the processor can calculate volume using a 20-point linearization to accommodate irregularly shaped vessels. The sensor has a measurement range of up to 4 m with an accuracy of ±3 mm. In addition, the sensor has Bluetooth capabilities that can transmit data via the manufacturer’s SigNow software.
Novus

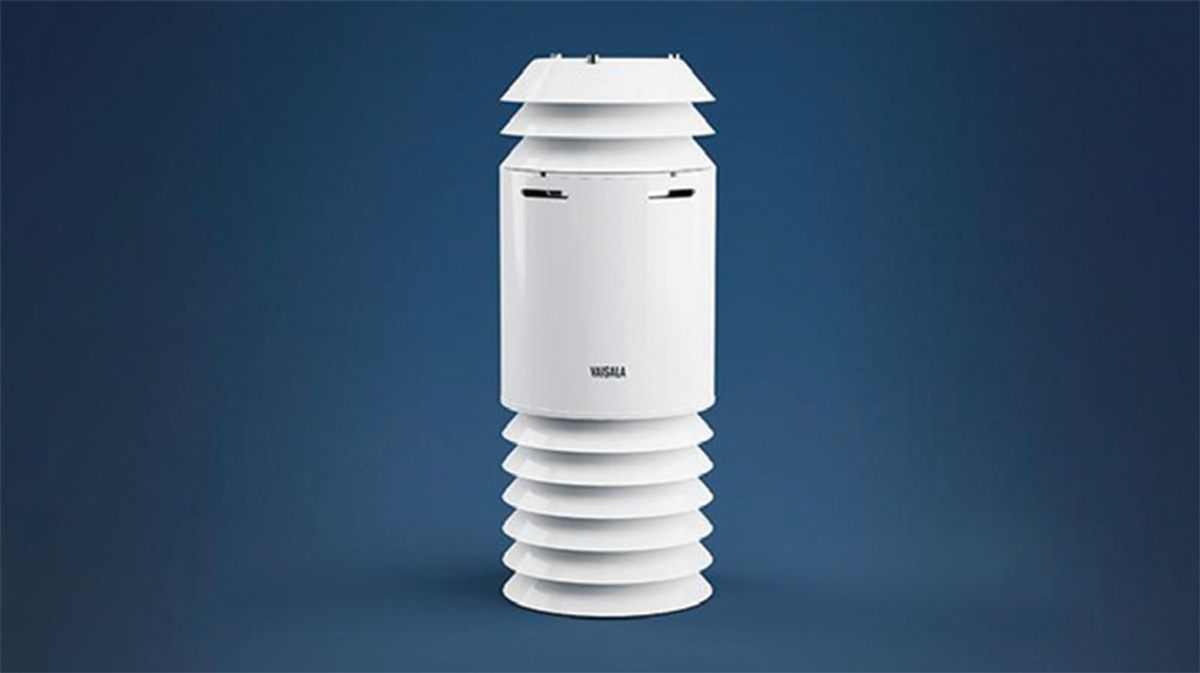

Air Quality Sensors Detect a Large Range of Particle Sizes
The AQT560 air quality sensor provides actionable, real-time air quality information and data. The sensor can accurately monitor an extended range of particle sizes, including particle matter with a diameter of less than 1 micron (i.e., PM1), such as particles produced by traffic, residential wood burning, and wildfires. Additionally, the sensor demonstrates enhanced detection performance when monitoring particles with diameters larger than 10 microns, such as the dust produced from mining and construction.
Vaisala
Flow Computer Calculates Gas, Liquid, and Steam Flow
The OPTIBAR FC 1000 flow computer performs volumetric flow calculations and heat quantity measurements on liquid and gas flow. The computer can monitor saturated and supersaturated steam, as well as detect condensate and measure differential pressure (DP). For improved accuracy, the flow computer corrects linearity errors of DP flow elements in real-time. This device is an addition to the manufacturer’s line of DP flow application technologies.
Krohne

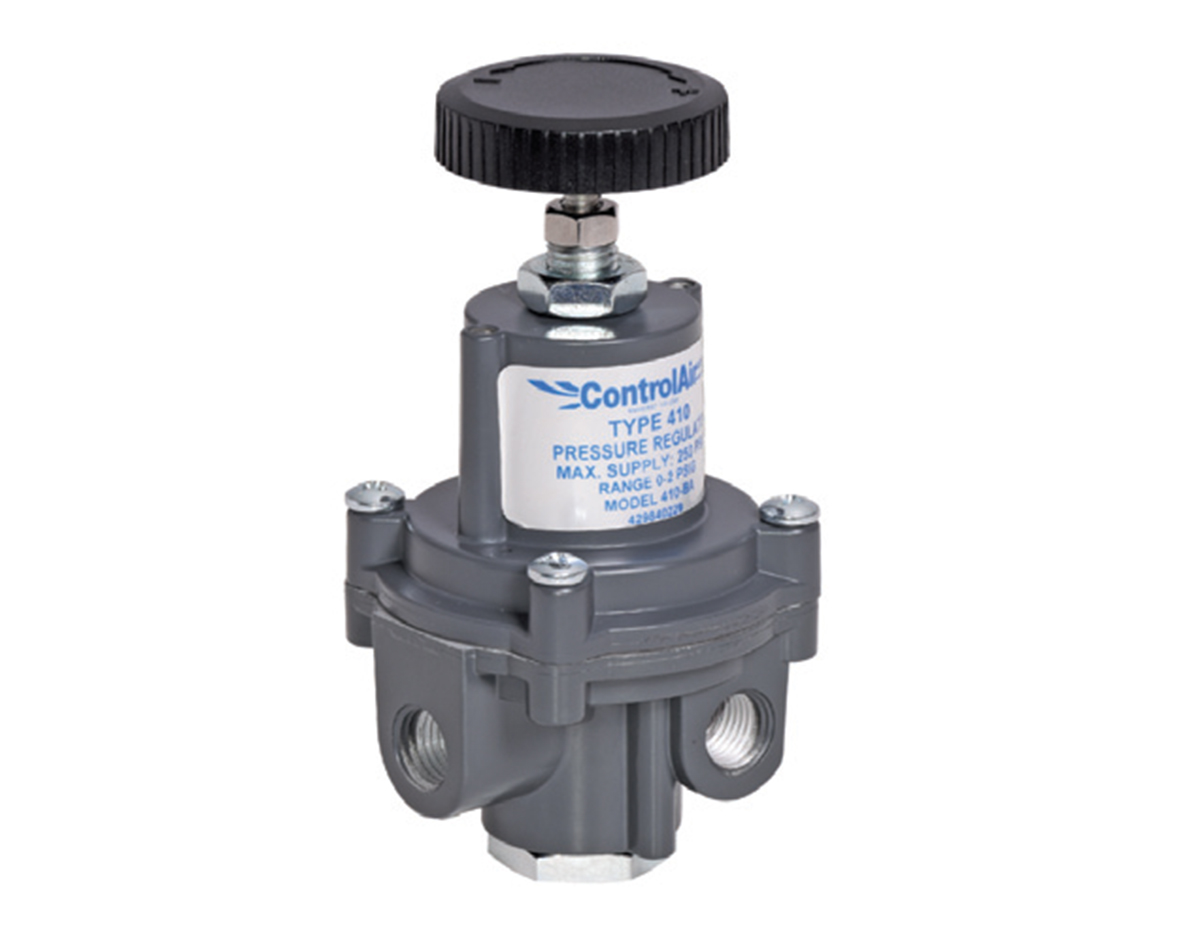

Pressure Regulator Controls Compressed Air
The Type 410 high-precision pressure regulator regulates compressed air flow in various industrial processes. The die-cast housing features a chromate finish and epoxy paint, which ensure long-lasting performance in demanding conditions. The Type 410 line includes a variety of sizes, with the smallest having a pressure range of 0–2 psig and the largest having a pressure range of 0–100 psig. The regulator is available in 1/4-in. porting, and the temperature range is 0°F to 160°F.
ControlAir

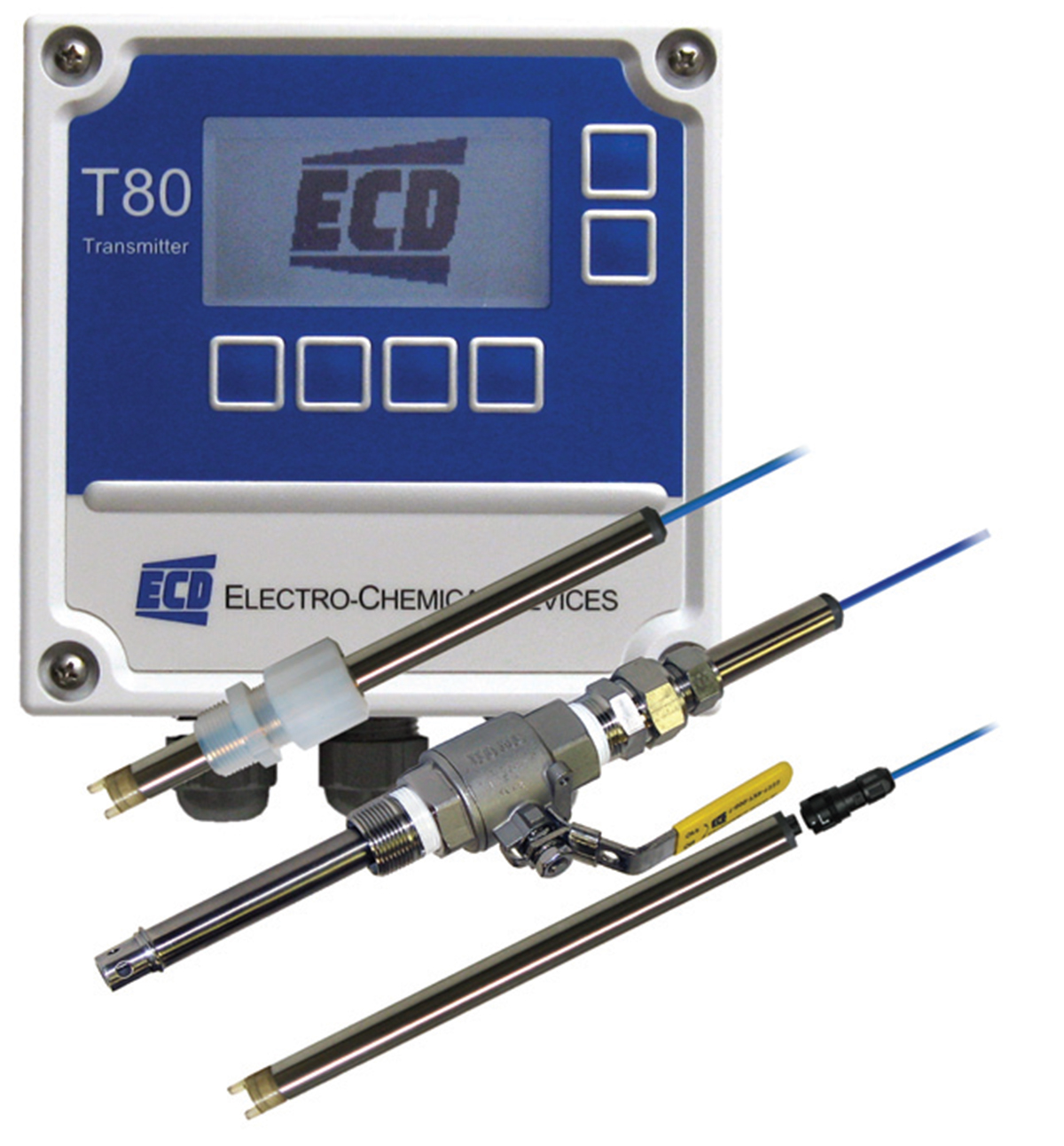

Dissolved Oxygen Sensor Monitors Water Quality
Monitoring dissolved oxygen (DO) levels in bodies of water provides insight into the health of aquatic ecosystems, including municipal surface water storage systems consisting of reservoirs, lakes, ponds, and tanks or enclosure pens for aqua-culture or fish hatcheries. The S80-T80 dissolved oxygen analyzer measures DO levels in municipal water supply storage systems to aid in protecting sensitive ecosystems. Single and dual output channels are available, and all models are available with the optional HART output. The concentration range is 0 ppm to 20 ppm, and the temperature range is –5°C to 80°C. The unit arrives calibrated for plug-and-play installation.
Electro-Chemical Devices
Fluids and Solids Handling
Compressed Air System Promotes Mixer Emptying
Horizontal mixers often require bomb doors, which run the entire length of the mixer, to evacuate all products, but these doors can often lead to leaks and product loss. The AirCIP system uses compressed air to promote evacuation, eliminating the need for bomb doors. Additionally, this system cleans the inner vessel walls and mixing paddles, preventing residual residue and reducing maintenance and cleaning time. This system can be integrated into the manufacturer’s line of horizontal mixers.
Gericke AG
V-Cone Blender Features Sanitary Mix Vessel
The VB-60-SSIS sanitary v-cone blender mixes dry and granular bulk materials uniformly, with or without added liquid in 15–30 min. The vessel features a sanitary stainless steel body and a 60-ft3 (1.7-m3) capacity chamber with smooth internal surfaces. The independently powered spray line/intensifier bar positioned within the inclined cylinders can thoroughly and rapidly distribute liquids throughout the batch and help break down soft agglomerates, achieving uniform blends. The unit is powered by a 7.5-hp motor.
Munson Machinery Company, Inc.

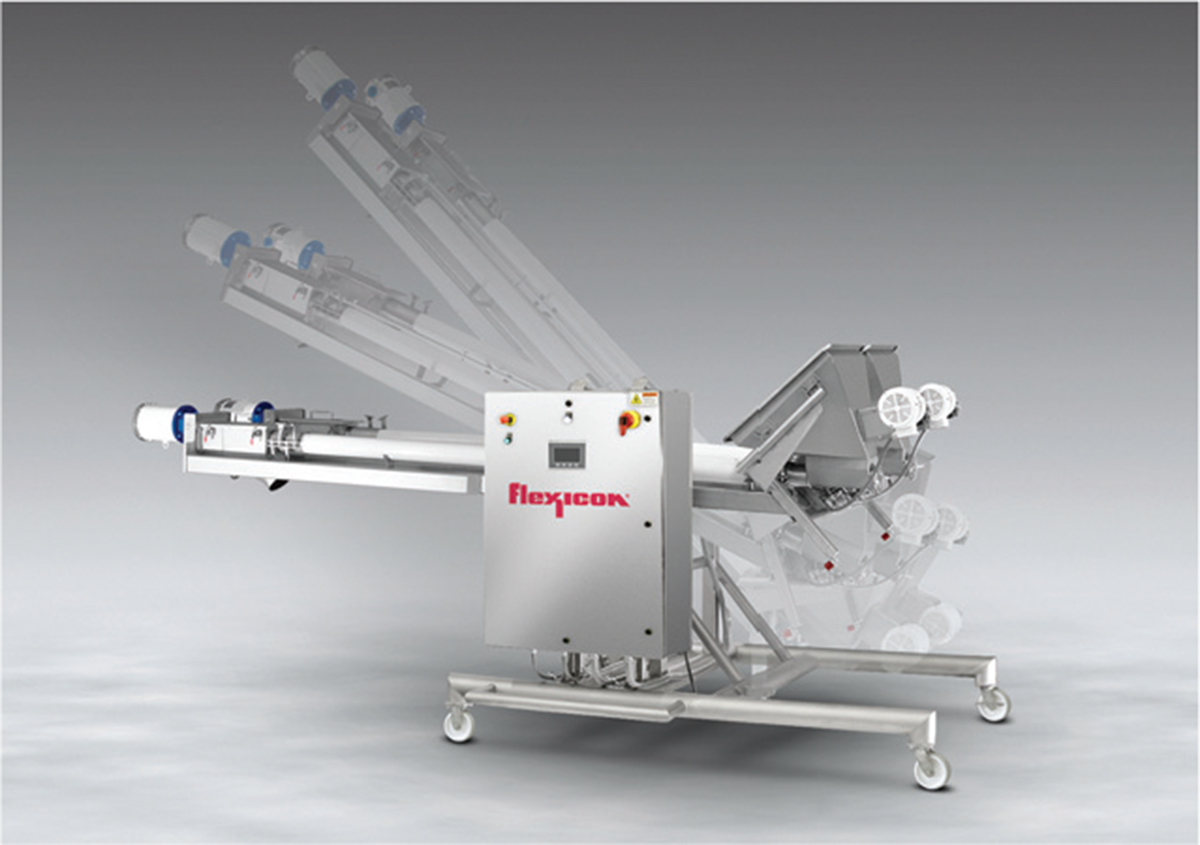

Flexible Screw Conveyor Features Dual Hoppers
This twin tilt-down flexible screw conveyor system includes dual hoppers on a common mobile base, which allows two bins to be filled simultaneously with the same or different materials. This self-contained unit includes two 4-ft3 hoppers that can handle up to 250 lb of material. The unit also includes level sensors and mechanical agitator assemblies to promote flow into the conveyor inlets. The conveyor design promotes the flow of non-free-flowing materials that pack, cake, smear, fluidize, and compress.
Flexicon Corp.
Drum Mixer Is Suitable for Viscous Materials
The BM-series gear-drive, bracket-mount mixers blend medium to heavy viscosity materials in 33- to 55-gal drums. The adjustable mounting bracket fits steel drums with diameters ranging from 18 in. to 31 in. and tightens to the drum with a hand knob. Air, electric, or variable-speed electric drive models are available. Electric variable-speed models feature a controller mounted on and prewired directly to the motor. All wetted parts are stainless steel for chemical resistance.
INDCO
Environmental, Health, and Safety
Carbon Emissions Tracker Draws Data from Process Measurements
The OpreX Carbon Footprint Tracer measures and calculates carbon emissions using measurement data and other types of primary information collected from instrumentation systems, power monitors, and other systems. This cloud service includes a consultation service that gives advice for calculating and reducing CO2 emissions. This system can be integrated with a process to automatically collect data, which can be accessed via a pivotal cloud foundry (PCF) dashboard. The system links data with SAP Sustainability Footprint Management to create reports that support compliance with European emissions-related laws and regulations.
Yokogawa Electric Corp.

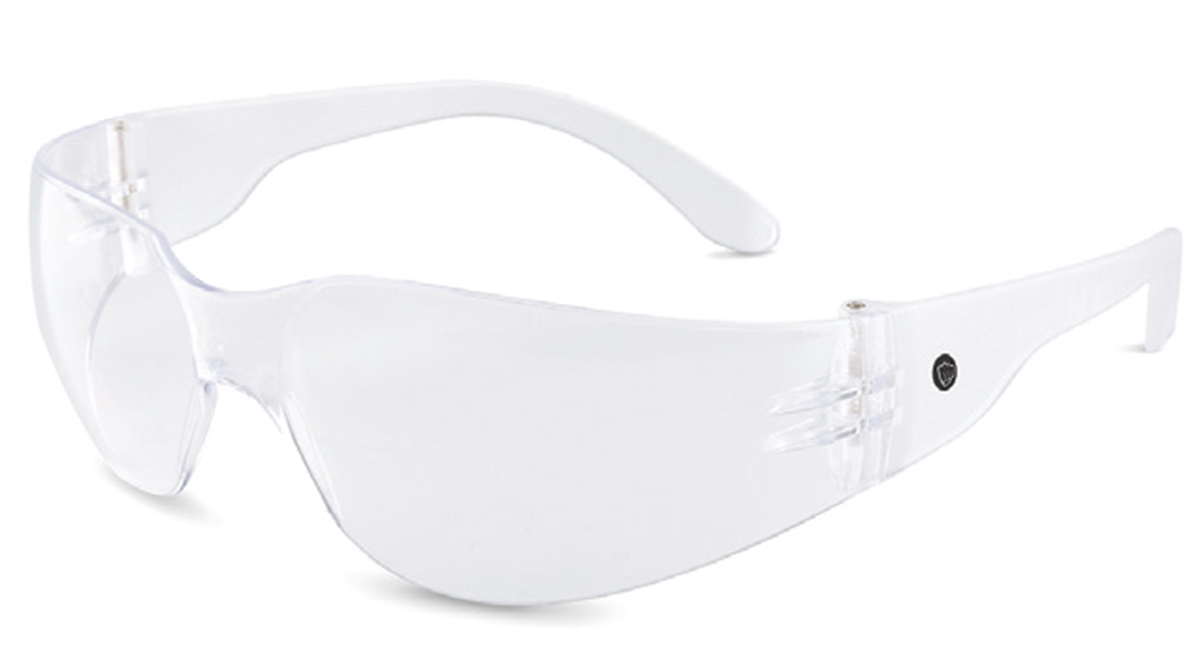

Safety Glasses Provide Versatile Protection
The Luna BKFIX-3001 protective glasses offer compact and lightweight eye protection for many applications. The 100% polycarbonate construction includes a wraparound, one-piece lens styling and molded nosepiece that hug the face and provide a secure fit while helping to improve optical quality and impact protection. The glasses meet American National Standards Institute (ANSI) requirements for abrasion, chemical, and ultraviolet (UV) resistance. Clear and smoke options are available.
Brass Knuckle Safety Products
www.brassknuckleprotection.com
Laboratory Equipment

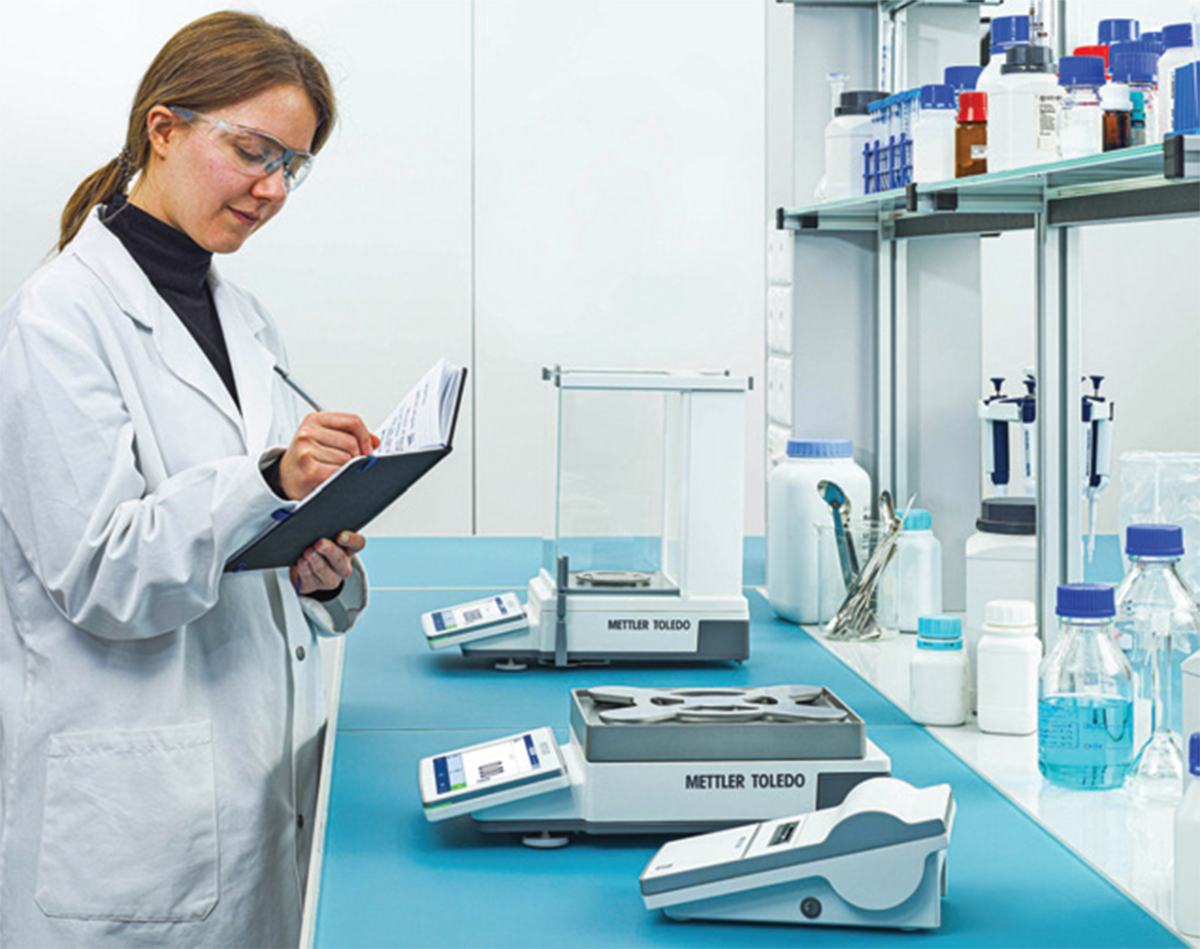

Laboratory Scales Offer User Feature Improvements
This portfolio of laboratory scales, which includes the MX, MR, MA, and LA lines, improves resilience and durability, measurement performance, and the usability of the interface. The MR line provides accurate measurements in challenging environments, such as busy labs and industrial settings. The MA line features improved usability, with simplified menus, guided applications, compact and portable models, and easy result documentation. For entry-level simplicity, the LA ensures quality results and a straightforward user experience, as well as the ability to connect to a printer or secondary device. The MX line includes SmartPan, StatusLight, ErgoDoors, and Illuminated Draft Shield features.
Mettler Toledo

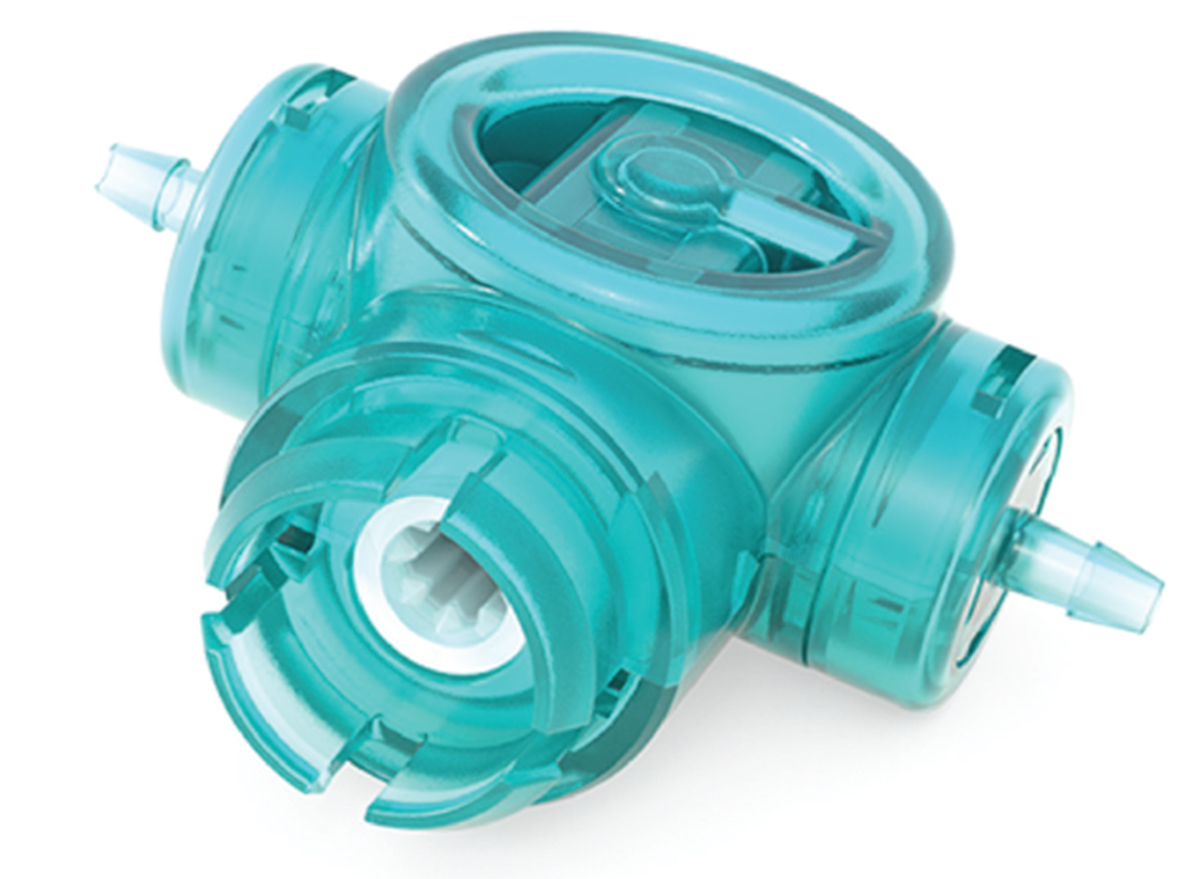

Single-Use Micropumps Transfer Delicate Biologics
The Quattroflow QB2-SD is a single-use micropump designed for micro-dosing delicate biologics in cell and gene therapy, laboratory, and small-scale upstream and downstream applications. The device’s single-use and easily installable design eliminates cross-contamination and the possibility of decreased effectiveness over time. The pumps work on the positive displacement principle and create a vacuum level of –0.6 bar. The micropump has a minimum resolution of 25 μL, and the maximum flowrate is 2.7 L/hr.
PSG Biotech
Operations and Maintenance

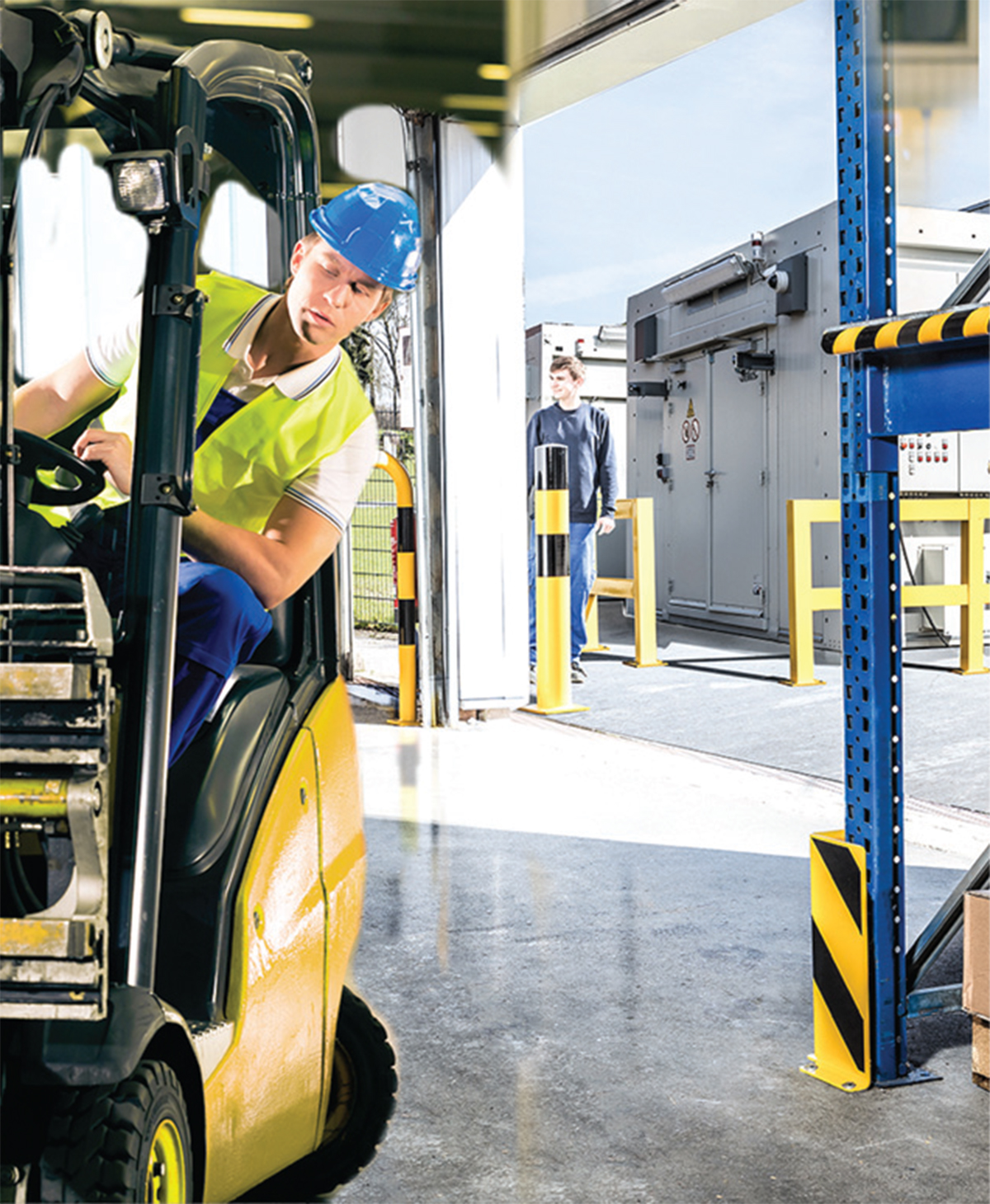

Impact Protection Guards Safeguard Personnel and Assets
These impact protection and barrier systems help keep employees safe and prevent damage to workplace structures, equipment, and material handling tools. This portfolio of safety installations includes corner and wall protectors, rack protectors, post bollards and bollard covers, polyurethane foam protective bumper guards, retractable tape barrier systems, machinery and rack guarding, I-beam protectors, and mobile expanding gates to shield facilities and structures from damage during intracompany transport or loading and unloading.
Denios

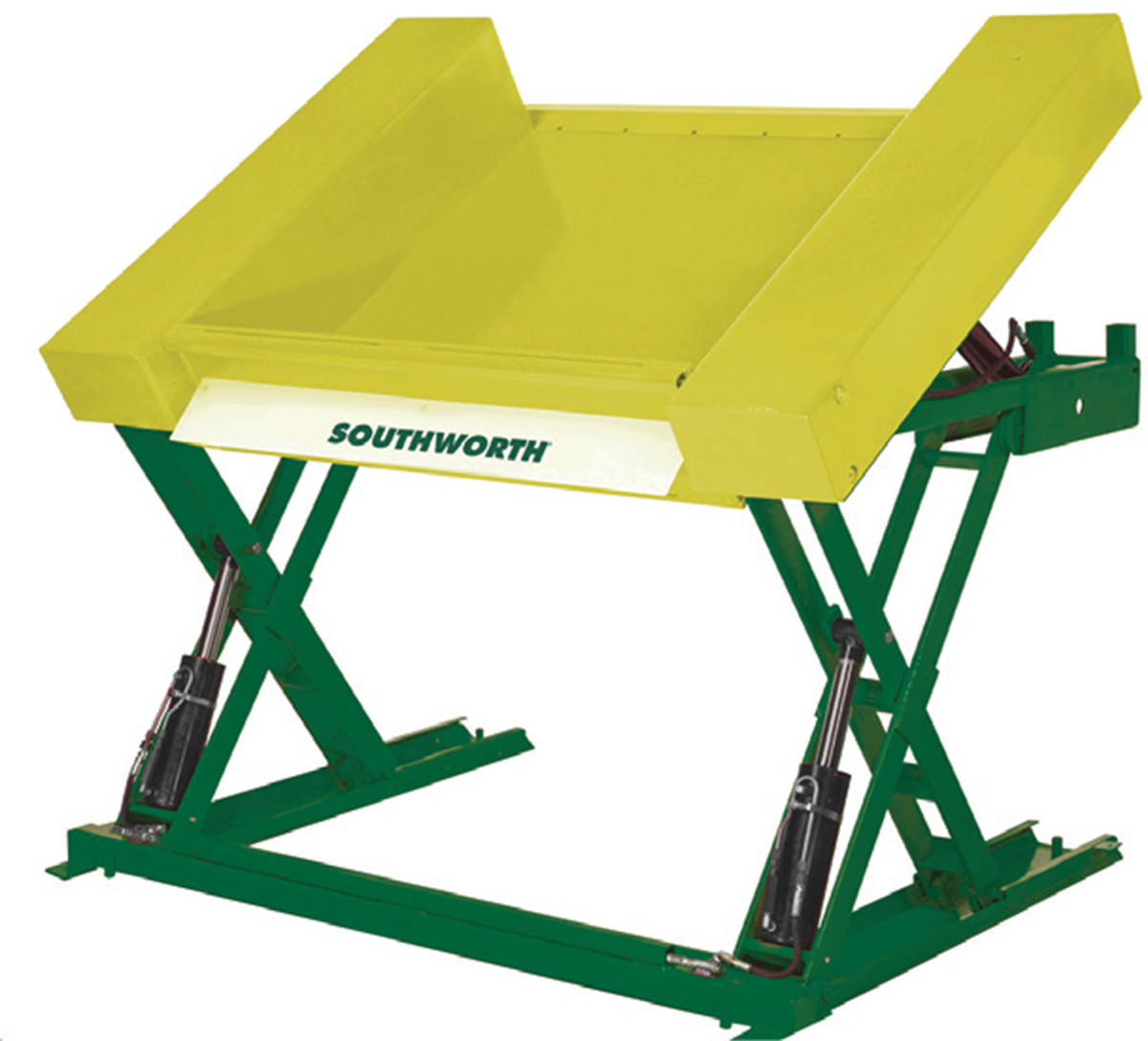

Lifter and Tilter Transports Heavy Loads in Compact Spaces
The ZLS-T is a combination lifter and tilter that loads and unloads large packages in areas where it is not possible to use forklifts. The lift and tilt functions are controlled independently so operators can precisely position loads at the most convenient height and angle for easy access without bending, reaching, or stretching. The unit lies flush with the floor when lowered and can raise heavy loads to 33.5 in. and tilt to 30 deg. The lifter and tilter is available in 2,000-lb and 4,000-lb capacity versions. Both units are powered by a 1-hp motor.
Southworth Products Corp.
Wearable Electronics Casing Protects Personal Electronics
Body-Case wearable plastic enclosures are versatile plastic housings for personal electronics worn on the wrist or as a neck lanyard, clipped to a belt or key ring, or carried loose. The cases are suitable for housing IoT, automation, measuring and control, data recording/transmission, geo-location, emergency call/notification, safety technology, mobile stock/sales logging, digital communications, medical, sports, and wellness electronics. To accommodate a variety of screen types and interfaces, the cases come in recessed and unrecessed models.
OKW Enclosures, Inc.
Air Filter Tester Monitors Effectiveness
The CamTester Pro is a mobile air filter testing system that evaluates air filter performance directly at the installation site. This device gives sanitary manufacturing facilities like medical device producers a way to monitor filter health in the field and compare the results to vendor claims. To measure filter performance, the system evaluates the particle capture efficiency of 0.4-micron particles. The system can also evaluate filtering efficiency at various pressures to identify optimal operating conditions.
Camfil
Engineering Services
Generative Artificial Intelligence Provides Engineering Insights
AI Assistant is a generative artificial intelligence (GenAI) resource embedded across the company’s industrial analytics platforms. The system provides real-time assistance and accurate and actionable suggestions for analytical approaches and techniques, process engineering strategies, and code generation. It uses advanced analytics, data science, machine learning, and coding knowledge to quickly generate answers to user’s questions. This GenAI program offers insight to engineers in the oil and gas, chemical, and pharmaceutical industries.
Seeq

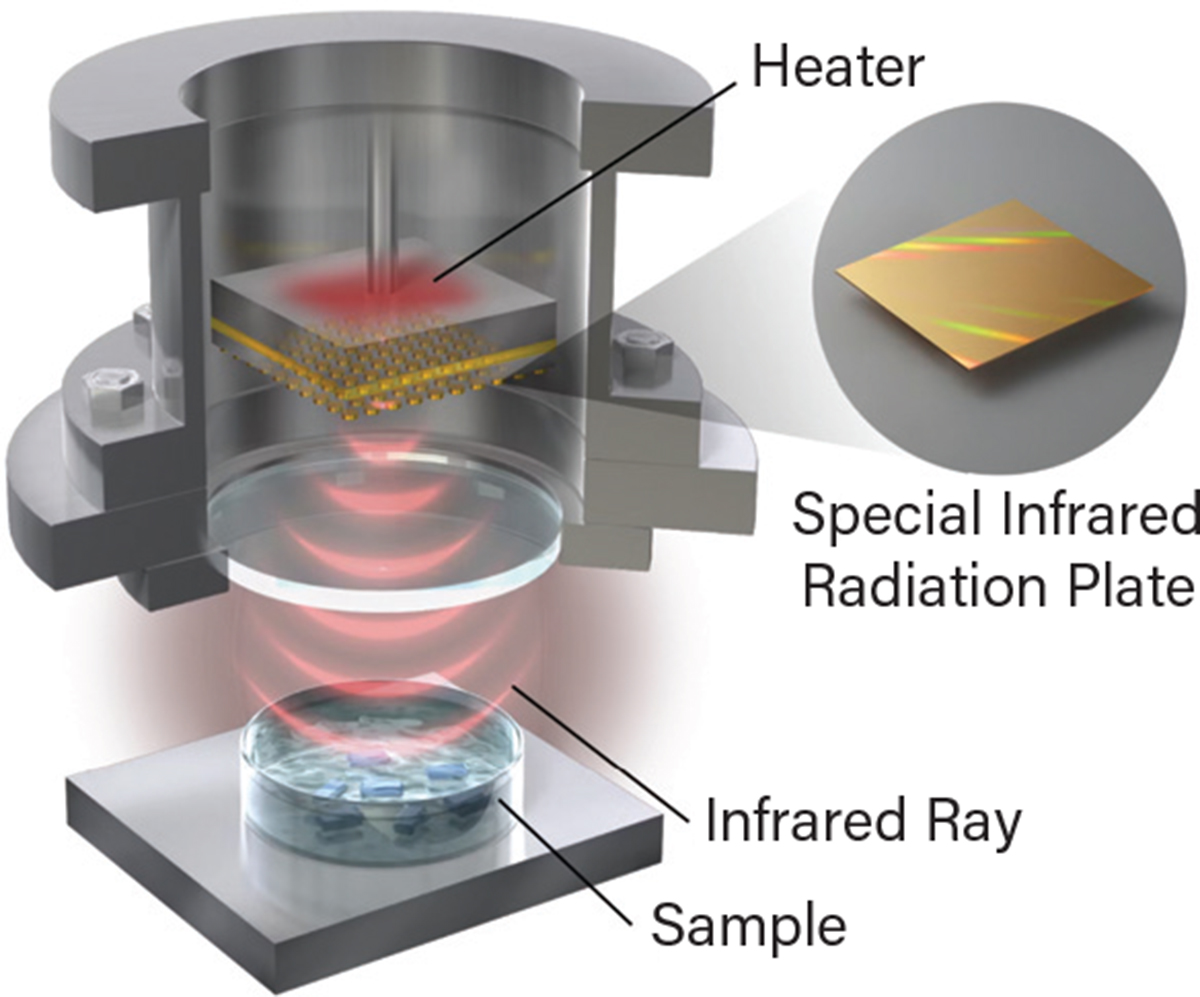

Crystal Testing Service Measures Pharmaceutical Crystallization
Identifying, quantifying, and classifying crystals formed during pharmaceutical crystallization processes can be a roadblock in pharmaceutical research. The NGK organic compound crystal search service identifies the presence and structure of protein crystals using their proprietary infrared technologies. During testing, the researchers irradiate organic compounds with infrared rays of specific lengths to control intermolecular bonds to promote crystallization and explore unknown crystal formations that have previously been difficult to discover. The service also includes the company’s AI software, which can predict crystallization patterns.
NGK Insulators, LTD.
Materials and Chemicals
Epoxy Demonstrates Color-Changing Capabilities
UV15RCL is a one-part epoxy that changes from red to clear when exposed to UV light. Curing under UV light takes approximately 30–60 sec with a broad-spectrum UV lamp emitting light with a wavelength range between 320–365 nm, and the epoxy’s immediate color change provides real-time evidence of UV exposure. The epoxy has a service temperature range from –80°F to 350°F, and it adheres well to metals, glass, ceramics, and many plastics, including acrylics and polycarbonates. It also features a low viscosity of 115–350 cps and good optical clarity.
Master Bond Inc.
Paper Coating Eliminates Fluorinated Compounds
Cartaseal OGB F10 is a water-based oil- and grease-resistant barrier coating that protects paper, ensuring integrity and freshness without fluoro-based substances or polyethylene. The coating is flexible and bends with the paper without perforating or cracking. The coating is more recyclable and compatible with repulping processes than previous coatings. In addition, it meets U.S. Food and Drug Administration (FDA) requirements for food-contacting surfaces.
Archroma
