Instrumentation

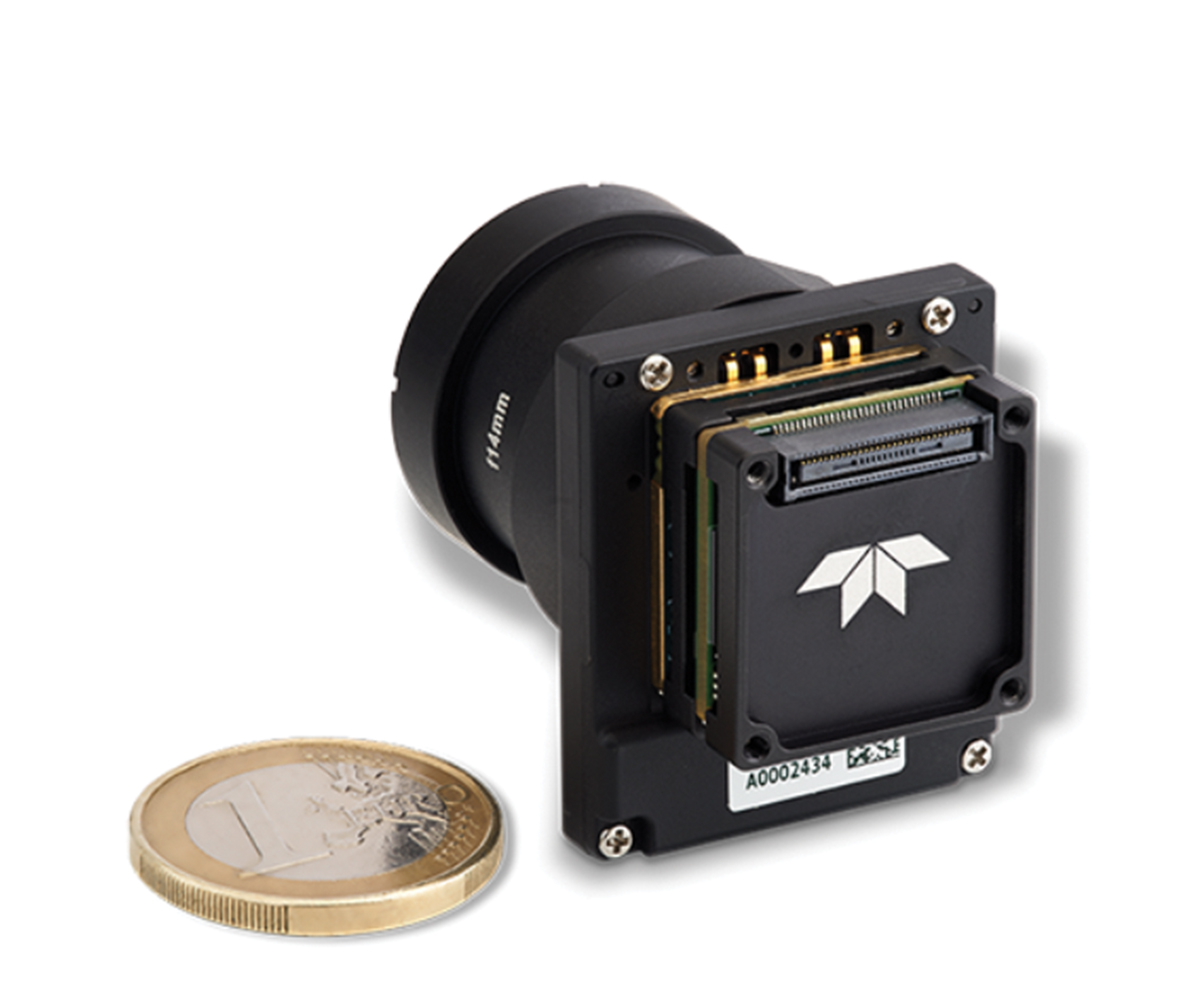

Camera Monitors Temperature Using Electromagnetic Radiation
A radiometric version of the Micro-Calibir Long Wave Infrared (LWIR) compact camera platform is now available that can deliver accurate temperature measurements ±2°C, or ±2%. This updated version features a heightened thermal sensitivity with an absolute temperature information of sub-50 mK noise equivalent temperature difference (NETD) and an intrinsic dynamic range of >650°C, which makes it applicable for industrial process monitoring, maintenance, security, and surveillance applications. This camera has a resolution of 640 × 480 pixels video graphics array (VGA).
Teledyne Digital Imaging, Inc.

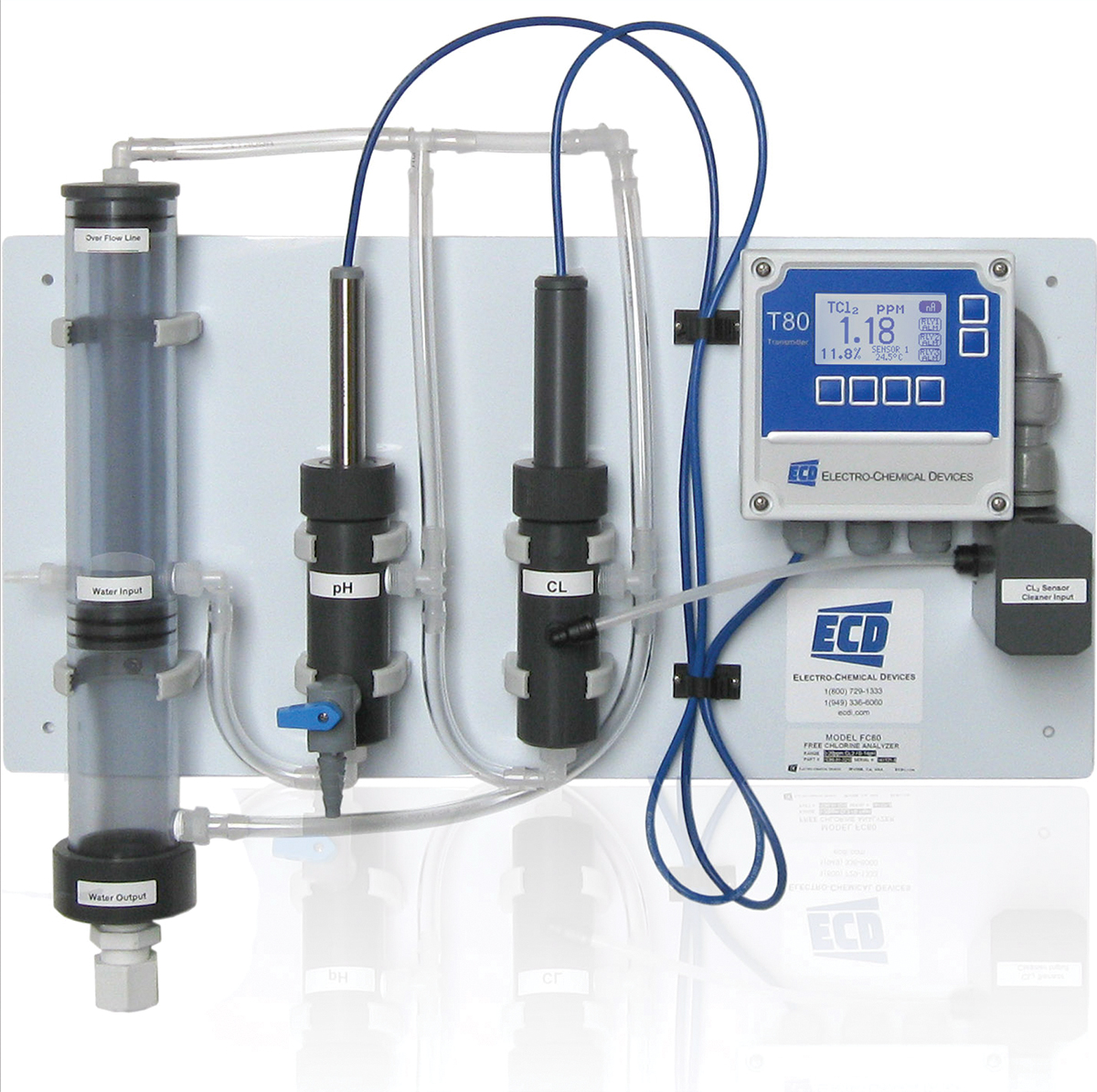

Analyzer Measures Chlorine Concentration
The TC80 total chlorine analyzer accurately measures chlorine disinfectant concentration in municipal drinking water, wastewater, and industrial water processing applications. The sensor has a three-electrode amperometric design and can measure free and combined chlorine, as well as pH between 4 and 12. The device also features a plug-and-play design and comes packaged with all necessary equipment for installation. The sensor is available in two models: a standard high-range configuration measuring from 0.05 ppm to 20 ppm or a standard low-range configuration measuring from 0.005 ppm to 2.000 ppm.
Electro-Chemical Devices

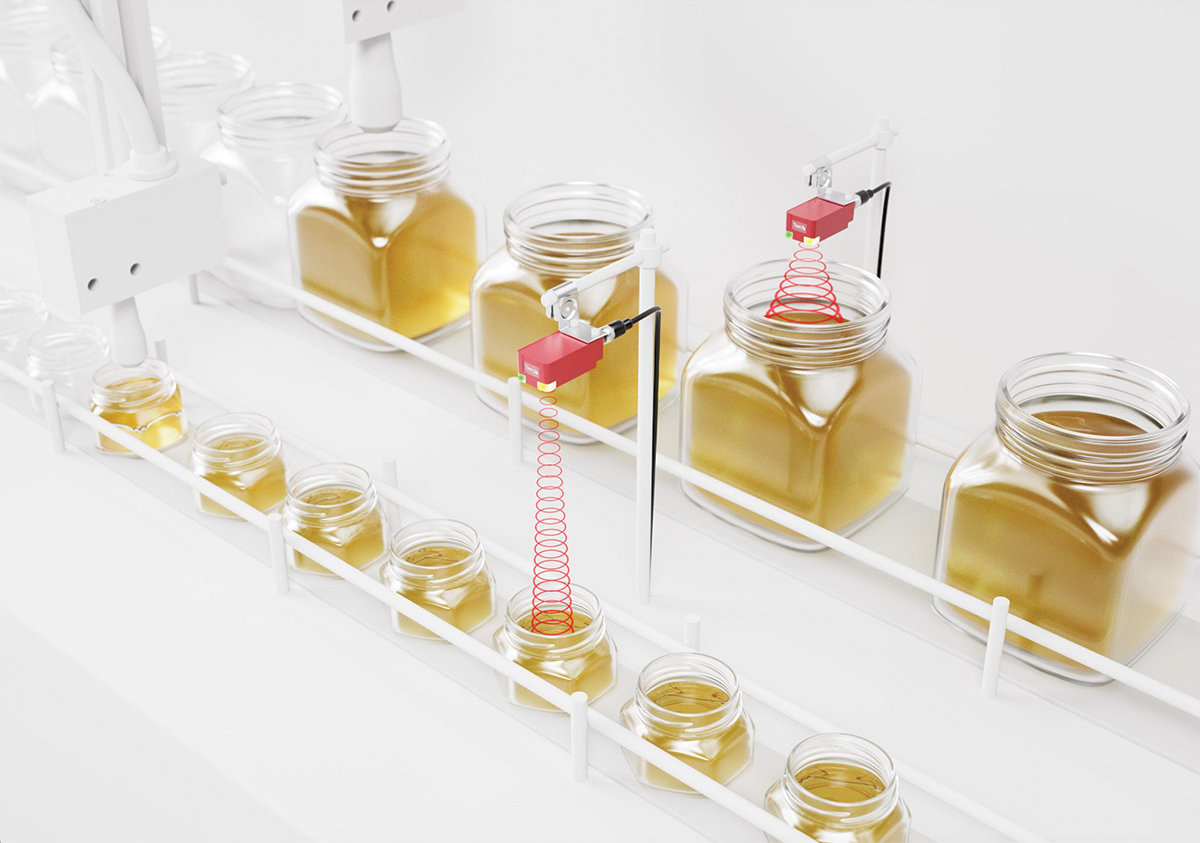

Ultrasonic Sensors Demonstrate High Performance
The 420B and 412B series of ultrasonic sensors precisely measure distance in demanding applications where optical sensors struggle. The sensors detect glossy, reflective, dark, or transparent surfaces and liquids. Personnel can adjust the detective sound cone to narrow, medium, or wide via an IO-Link interface. The 420B series comes in compact plastic housings and improves upon the previous 420 series by reducing dead zones while maintaining high performance. The 412B series complements the manufacturer’s current line of cylindrical sensors by including IO-Link and analog output.
Leuze Electronics, Inc.
Personal Computer Made Durable for Industrial Environments
The PACSystems IPC 2010 compact industrial personal computer (IPC) supports a wide range of industrial applications that connect industry ground floors to the cloud. This computer is rugged and durable enough to function in challenging manufacturing environments. It comes preloaded with the manufacturer’s PACEdge industrial edge platform and elements of Movicon.NExT SCADA software to help connect processes to the internet of things (IoT) and provide personnel with industrial edge data visualization technology.
Emerson

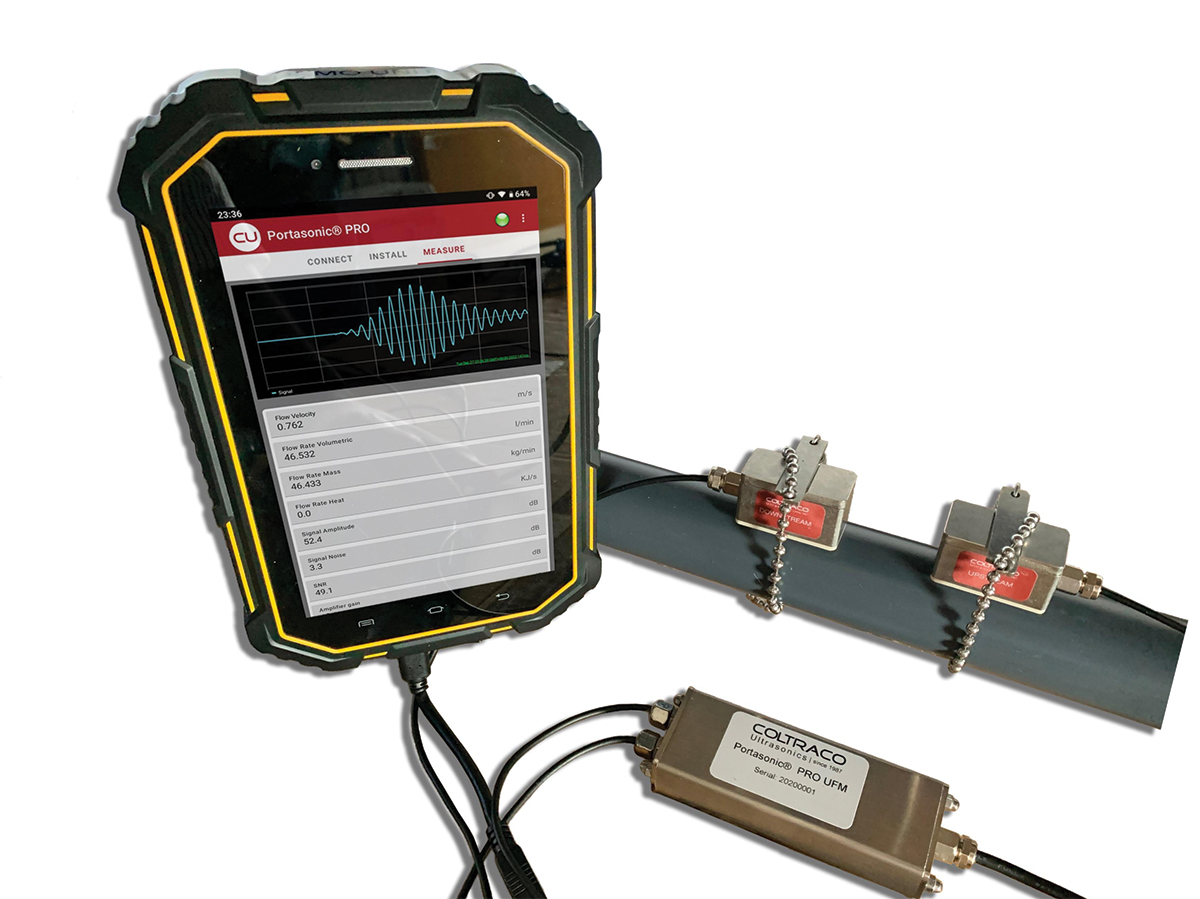

Non-Invasive Flowmeter Measures Internal Pipe Pressure
The Portasonic PRO handheld ultrasonic clamp-on flowmeter combines non-invasive flowrate measurement technology with built-in pressure prediction software for calculating internal pipe pressure. This unit has data logging capabilities and can calculate heat flowrate given user-inputted inlet and outlet temperatures. The flow meter’s calculation database includes over 15 pipe materials and fluid types to fit a variety of applications. This device has a maximum pipe diameter of 750 mm.
Coltraco Ultrasonics
Spectrometer Performs Extractive Oxygen Measurements
The TDLS8220 extractive tunable diode laser spectrometer is the newest addition to the manufacturer’s line of OpreX analyzer products, which are designed to improve system reliability and reduce maintenance. This device performs extractive oxygen measurements where in situ or probe-type installations are not applicable in oil and gas, petrochemicals, and specialty chemicals applications. The upgraded design includes an auto gain function that optimizes detection sensitivity during dynamic process events, and the non-contact measurement approach reduces equipment wear. The analyzer eliminates the need for routine calibration and does not require consumables.
Yokogawa Corp.
Software
Digital Platform Analyzes Utility Bills to Improve Sustainability
The Building X Sustainability Manager application allows users to collect, store, and analyze data from their utility bills to help them recognize opportunities for sustainable improvements. This system performs energy costs and consumption calculations, energy budget analysis, carbon emission reporting, and energy supply contract management. The application is available at three subscription levels, which vary the depth and type of analysis.
Siemens
Artificial Intelligence Platform Delivers Actionable Recommendations
The Hybrid Artificial Intelligence (AI) platform analyzes and interprets operational data and knowledge to generate actionable recommendations. In contrast to other AI technologies, this platform performs well in limited-data situations. It also delivers transparent audits of the reasoning behind its decision-making, eliminating the “black box” nature of comparable platforms. This system uses cognitive reasoning techniques that emulate human intuition while keeping humans in charge. The platform can be applied directly to any data and machine learning (ML) pipeline.
Beyond AI, Inc.
Fluids and Solids Handling

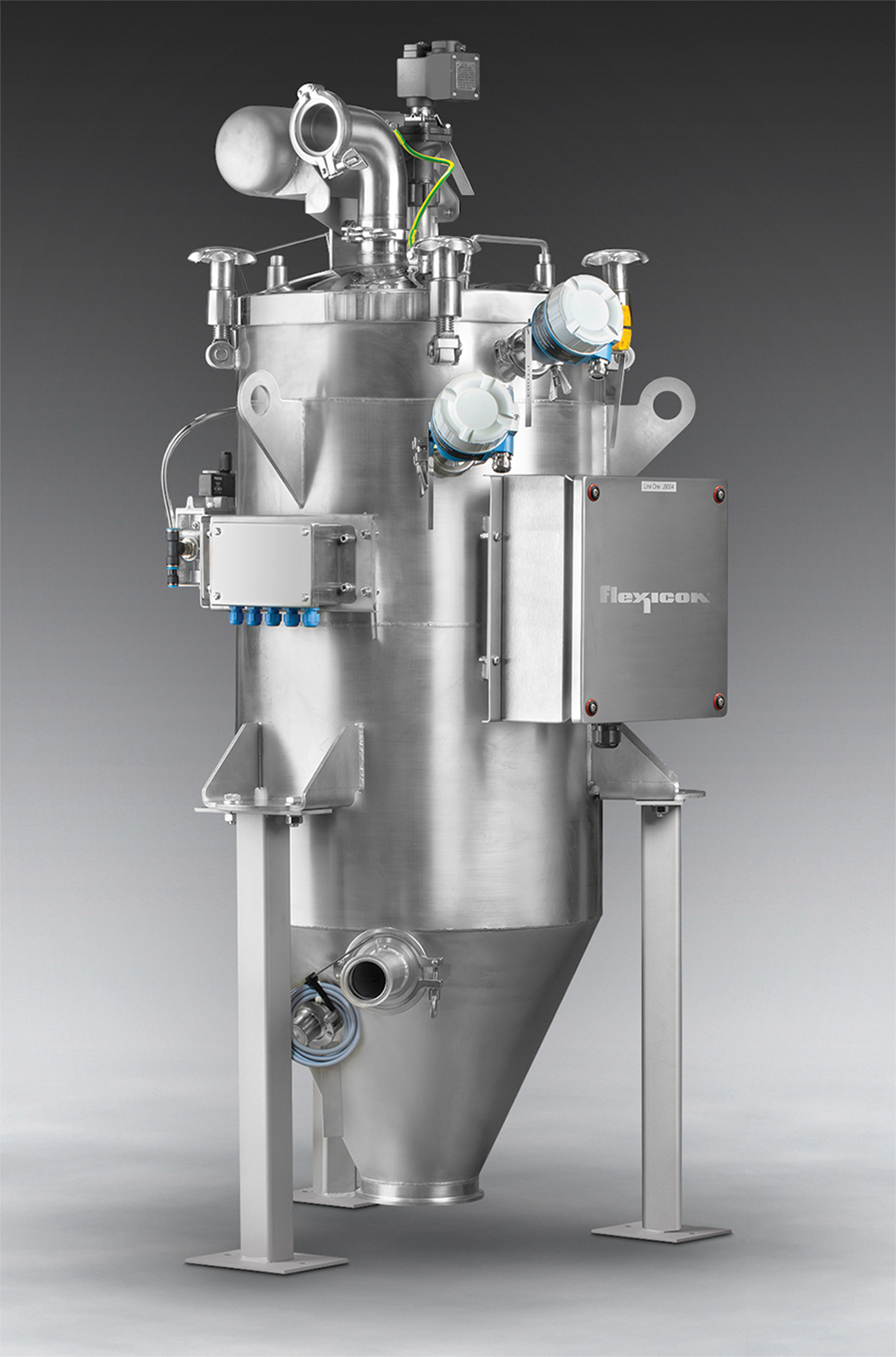

Filter Receiver Conveys Sensitive Material
The PNEUMATI-CON is a pharmaceutical-grade filter receiver for medium- and high-throughput vacuums that positively conveys extra-fine, difficult-to-handle, or contamination-sensitive bulk solid materials. The gas-spring-operated lid makes it easy for personnel to sanitize the vessel and inspect and change cartridges. The stainless steel body meets the requirements for pharmaceutical applications, and the receiver’s body is devoid of cavities or recesses where contaminants could aggregate. The vessels are available in 17.7-in.- and 24-in.-dia. models.
Flexicon Corp.

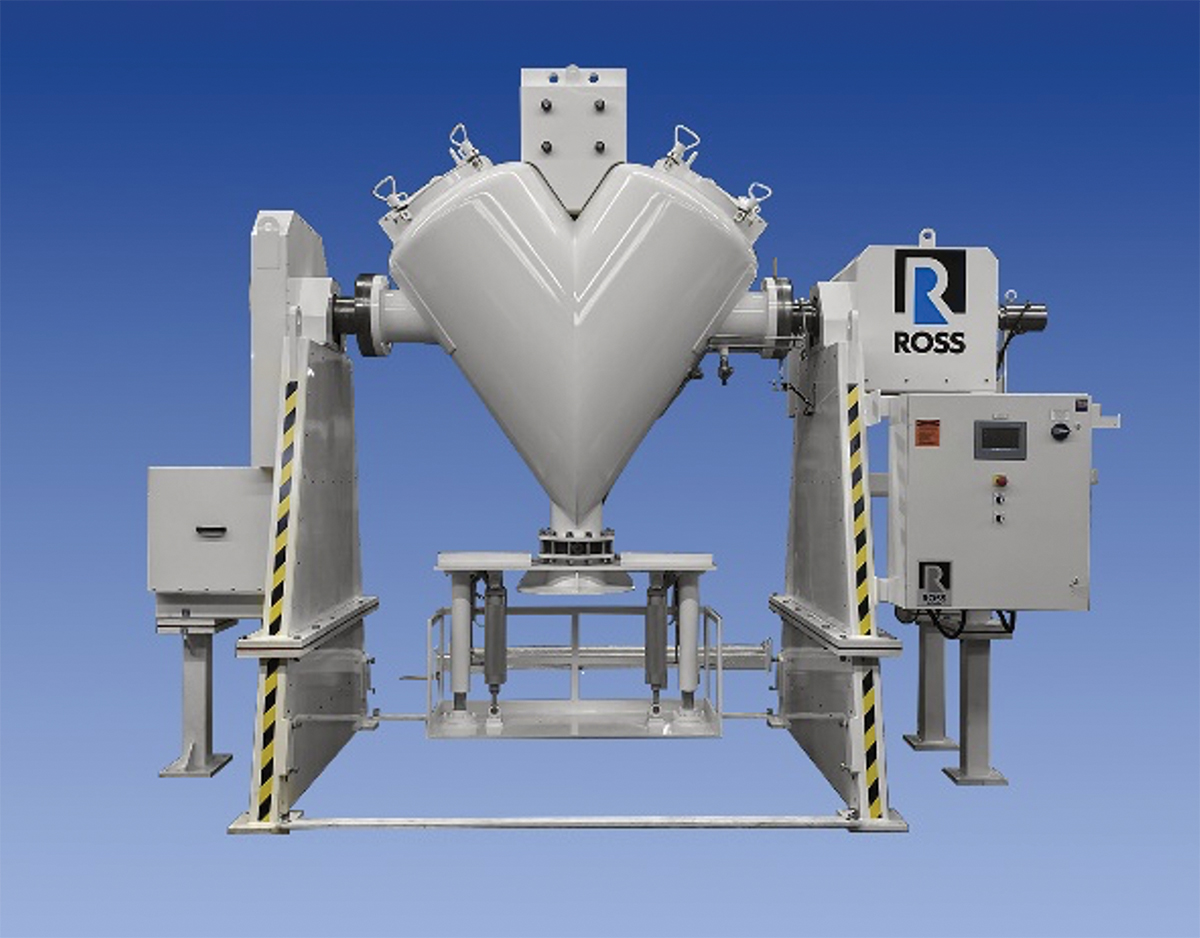

V-Cone Blender Mixes Dry Solids
The VCB-20 v-cone blender gently and effectively mixes dry solids with a wide variety of sizes, shapes, and densities. The blender has an operating speed range of 5 rpm to 25 rpm, which users can control on a 7-in. touchscreen. The blender features two affixed pneumatic cylinders to disconnect and connect fiber drums for charging and discharging. The design includes a dust-tight butterfly valve that eliminates leaks and a high-speed intensifier bar installed along the mixer’s axis of rotation that reduces the size of agglomerates. The discharge valve sits 40 in. above the floor.
Charles Ross & Son Co.
Environmental, Health, and Safety
Safety Jacket Offers High Visibility
The HiVis diamond quilted jacket is now available in two colors: high-visibility lime and high-visibility orange. Both versions of the jacket meet American National Standards Institute/International Safety Equipment Association (ANSI/ISEA)107-2020-Type R, Class 3 and Canadian Standards Association (CSA) Z96-Class 2, Level 2 standards. The jackets are waterproof and feature silver reflective tape around the waist, arms, and back.
RefrigiWear

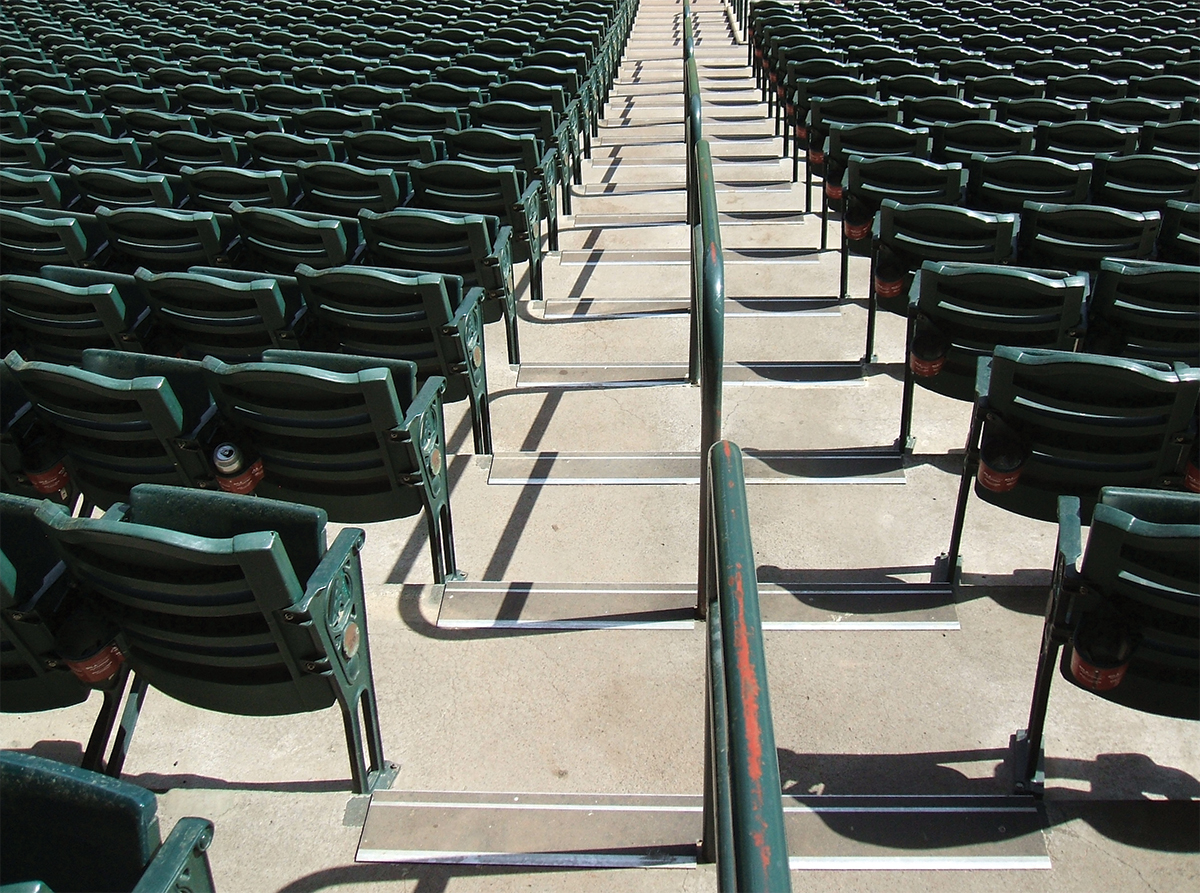

Anti-Slip Surface Makes Stairs Safer
The Flexmaster safety renovation treads are an easily applied anti-slip surface for interior or exterior stairs. To create the anti-slip surface, an extruded aluminum base is covered with Flex-Tred anti-slip tape, which provides a much higher coefficient of friction. Abrasive surfaces are level with extrusion surfaces for enhanced safety and comfort. Units are available in 12-ft. strips and a variety of tread depths and colors, including fluorescents and Niteglow glow-in-the-dark technology.
Wooster Products
Operations and Maintenance
Panel Indicators Provide Increased Customizability
The newest additions to the manufacturer’s line of bolt-on, non-relampable, and front-mounting panel indicators feature new sizes and colors, as well as energy saving technology. These direct incandescent-replacement LED lights are available in yellow, red, or aqua green colors, and they come in cylindrical top hat or dome lens types. These additions are sized for mounting in holes with a diameter of 0.681 in., and they consume only 0.5 W or less. These lights are suitable for control panels, medical equipment, and signal and pilot lights.
LEDtronics
Materials and Chemicals
Foaming Cleaner Does Not Generate Harmful Fumes
SOAR HF is a high-foaming, liquid acidic cleaner that penetrates and removes rust, oxides, calcium carbonate, and other deposits without harmful fumes. The cleaner’s high foaming capabilities make it effective at cleaning difficult-to-reach areas, and it can be applied by foam, immersion, hand spray, brushing, or wiping. Its high performance and lack of harmful fumes make it suitable for cleaning metal, plastic, glass, concrete floors, ready-mix concrete trucks, pulp and paper mills, and machinery.
Madison Chemical
Biodegradable Bottle Caps Reduce Plastics Pollution
Bottle caps are a significant source of plastic pollution, with an estimated 17 million bottle caps in the world’s oceans. These polyhydroxyalkanoate (PHA) bottle caps are completely biodegradable. The biopolymer — created using bacteria fermentation — is recyclable and compostable while maintaining the characteristic performance of fossil-fuel-based bottle caps. In addition, these bottle caps do not contain or deteriorate into microplastics.
Beyond Plastic
